How to Move Survey Data to Trimble Connect

Moving large files can be burdensome and tricky. As a Propeller Stratus customer, moving survey data to Trimble Connect is a seamless process.

Prerequisites

Access to a Propeller Stratus Portal
Trimble Connect account
Ability to sign in to Propeller Stratus via Trimble SSO
Export level permissions on your site

How do I send a file to Trimble Connect?

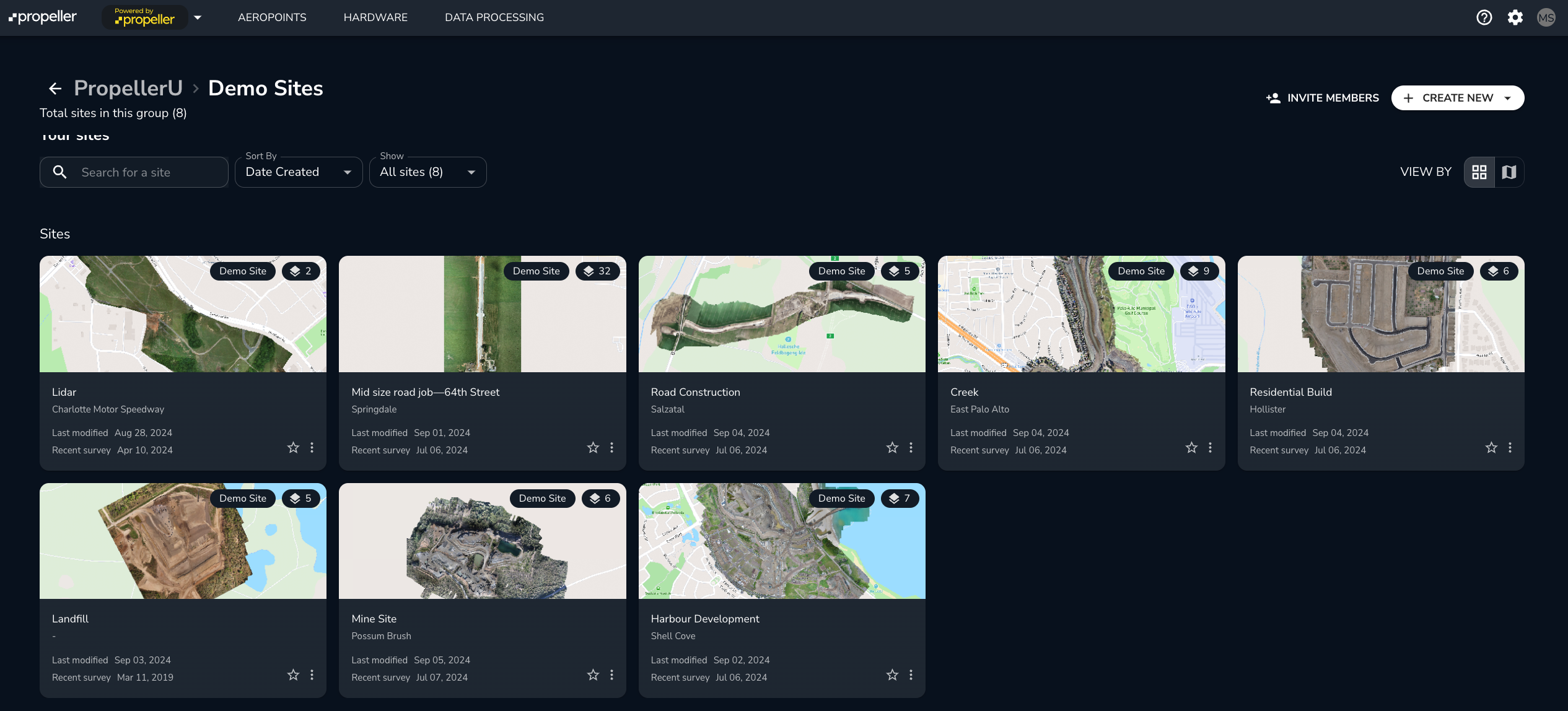

Sign in to your Propeller Stratus Portal via the Trimble Single Sign-On (SSO) feature and navigate to the site you want to export data.

You must have export permissions to move files to Trimble Connect.

Homepage Landing Page.png

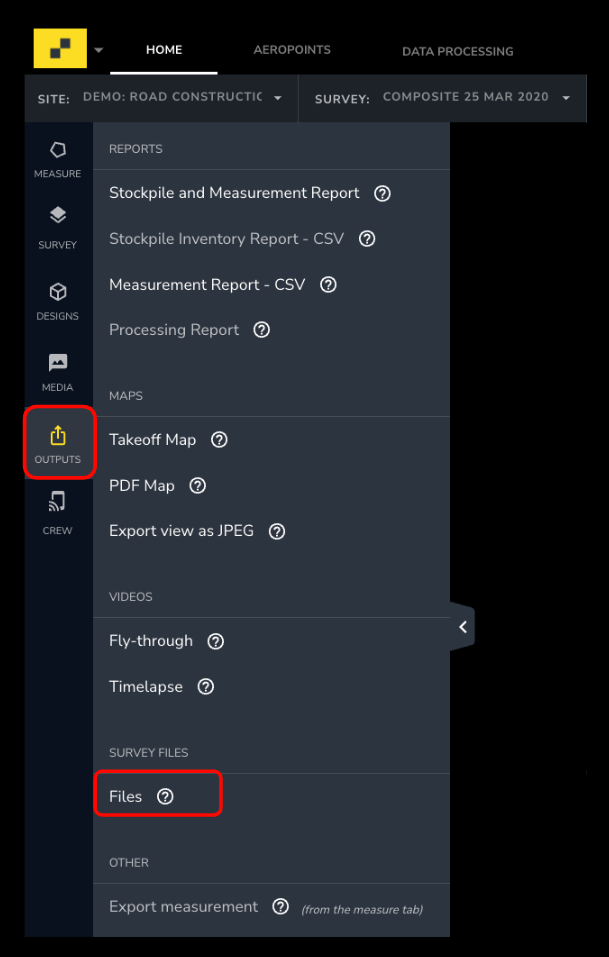

From the OUTPUTS tab, select Files.

Outputs Tab Files.png

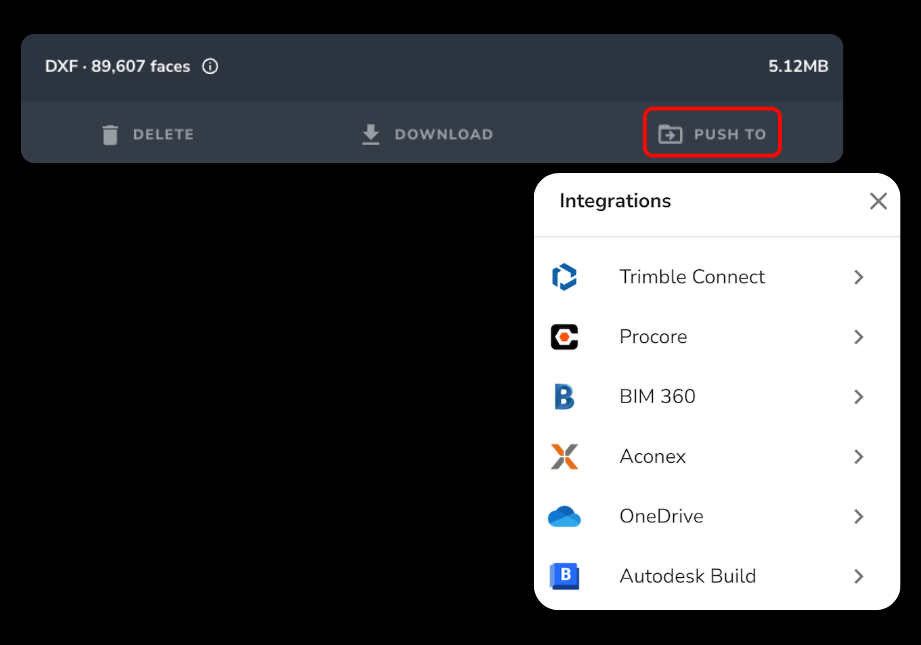

In the list of files, select the file type you want to export. Then click PUSH TO and select Trimble Connect.

Outputs Tab ALL Files Push To.png

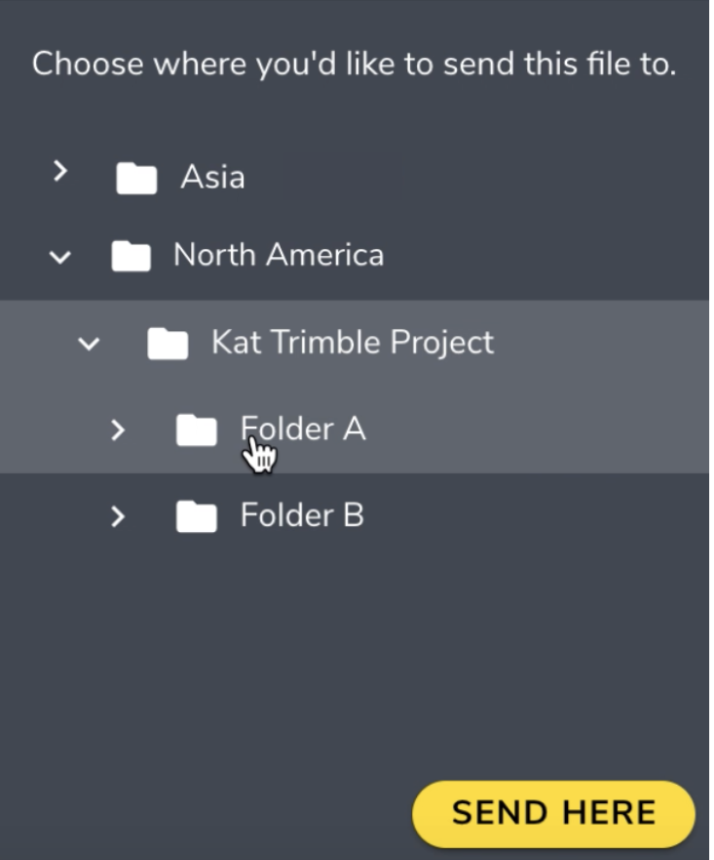

Navigate to your region. By default, it will open to the region where you reside. From here, select your project and the project’s folder. Click SEND HERE.

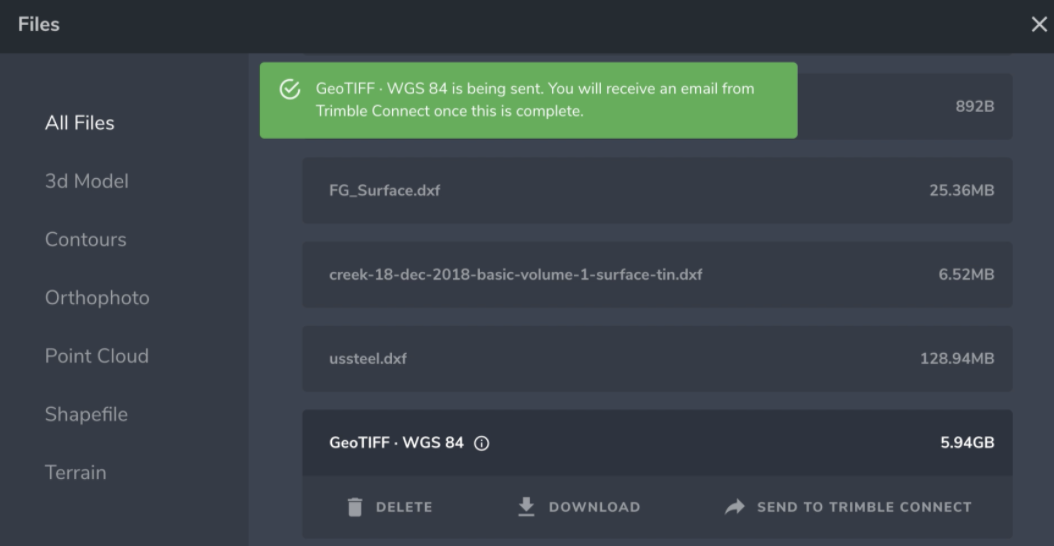

A pop-up window will show your files being sent to the chosen folder. Once complete, you will receive a confirmation email.

Sending files can take 20 minutes or longer before they are available in Trimble Connect, depending on the file size.

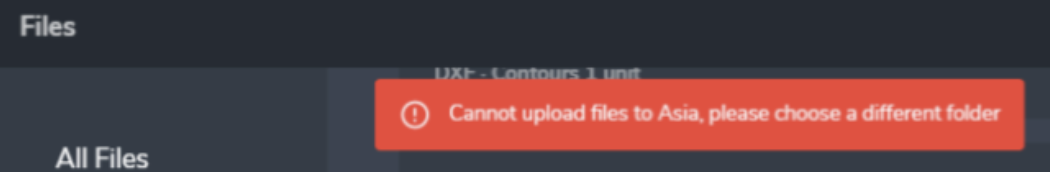

If there is an issue sending the files to Trimble Connect, you will receive an error message.

How do I know my file was received by Trimble Connect?

If you have Trimble Connect notifications enabled, you may receive confirmation that your files have been successfully received.

Please note if successful, you will not receive another notification from Propeller.

If there is an issue receiving your files, you will receive an email from Propeller with troubleshooting recommendations.

Please note if unsuccessful, you will not receive another notification from Trimble Connect.

Troubleshooting

If you are experiencing issues sending files to Trimble Connect, please check the following:

Do you have enough space in your Trimble Connect account for the files you are trying to send?
Do you have the correct credentials to send files to Trimble Connect?

If you are still experiencing issues, please contact your Customer Success Engineer directly who can help you continue to troubleshoot.

I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, you can connect with our support team by clicking the support button on the top right corner of your user portal.
