In 2019, a simple question from a customer sparked the idea for DirtMate: “Can we use AeroPoint technology on machines?” 🤔
There have been many iterations (you can read about them here), but here’s where we landed: A flexible GNSS receiver with an onboard IMU that live streams telematics data to the map. We called it DirtMate.
DirtMate maps every move, every track, every machine. It’s a live stream of utilization metrics, surfaces, and load counts without requiring a drone or investing in machine control. Just mount it and map it.
Let’s dig into how DirtMate unlocks additional value for existing Propeller users 👇
Learn more or request a DirtMate demo
Are you a current DirtMate customer looking for help articles? Head to our 'Getting Started with DirtMate' guide.

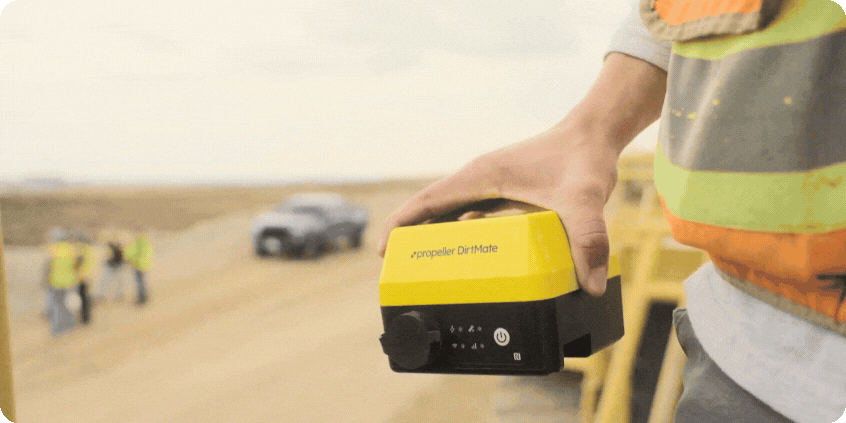

What is DirtMate?
DirtMate is a GNSS receiver that unlocks real-time telematics in Propeller. And by real-time, we mean live data, not the 10-15 minute latency that you see with other tracking systems.
It’s a simple, adaptable piece of hardware that wears all the hats you need it to. Whether it's mounted on a machine or serving as a base station, it’s streaming a continuous feed of elevation and utilization data back to Propeller, where you can track it all on the map.
Here are a few different ways you can use a DirtMate:
|
Machine sensor Mount a DirtMate on your machine to capture PPK-corrected location, elevation, and utilization data. |
Base station Use DirtMate as a static reference base station to enhance GPS accuracy through RTK/PPK processing. |

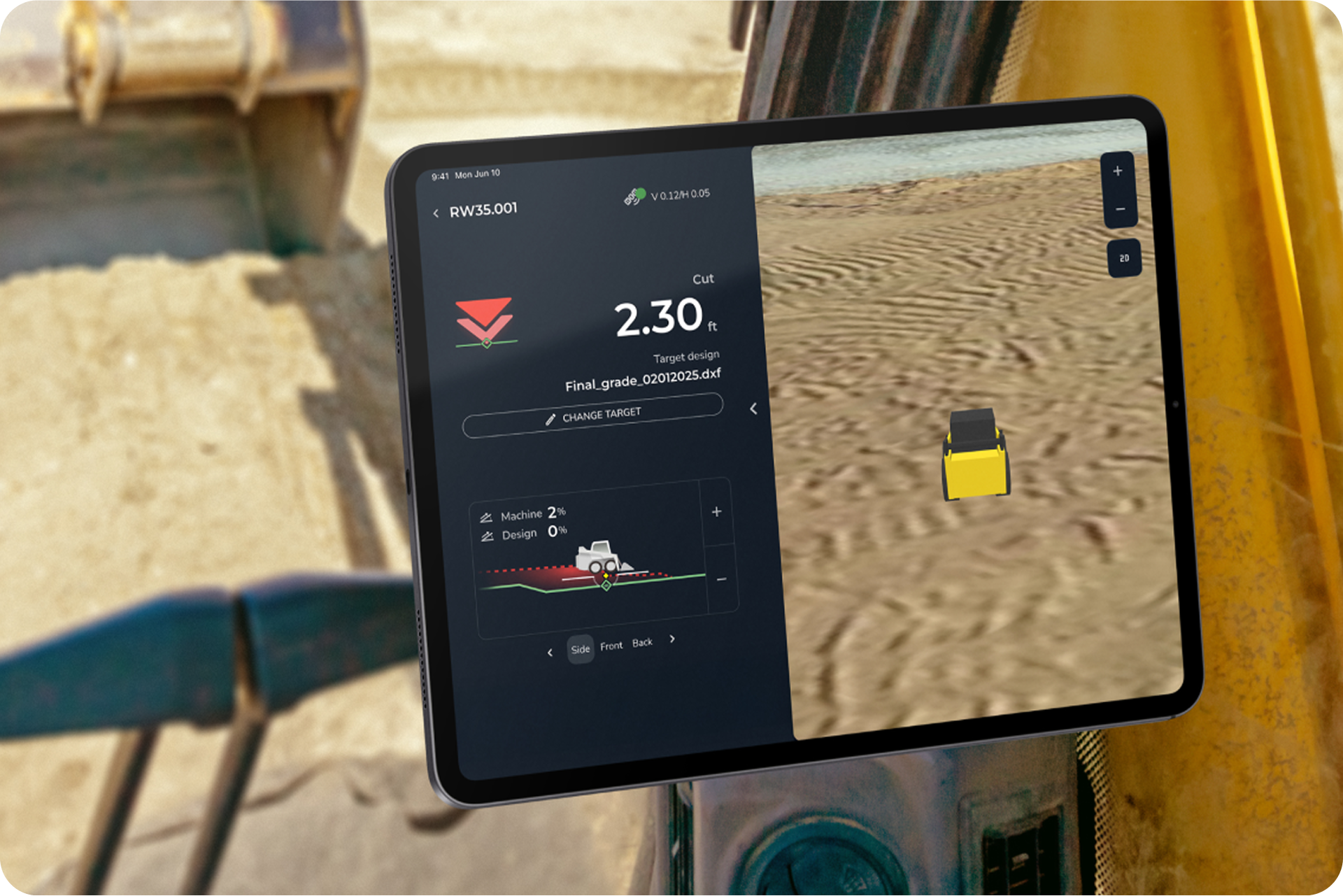

In-Cab (coming soon) An in-cab grade guidance solution for rough grading with real-time feedback on elevation relative to designs. |
Here’s what you’ll unlock with DirtMate
Get to know a few of the workflows you'll unlock in the platform by adding DirtMate to your Propeller program.

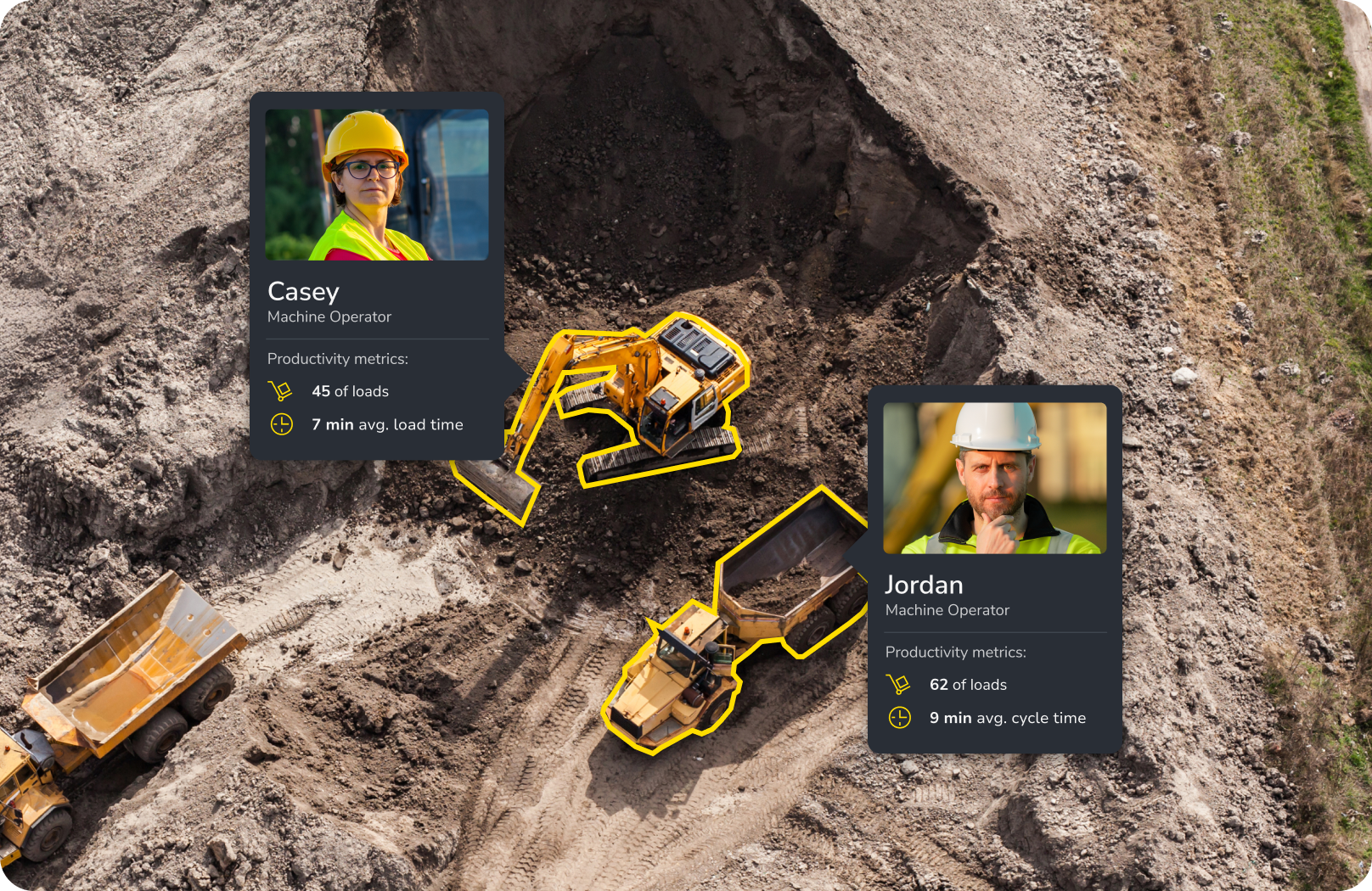

OPERATOR EFFICIENCY
Decrease idle time, increase accountability
|
DAILY PROGRESS TRACKING

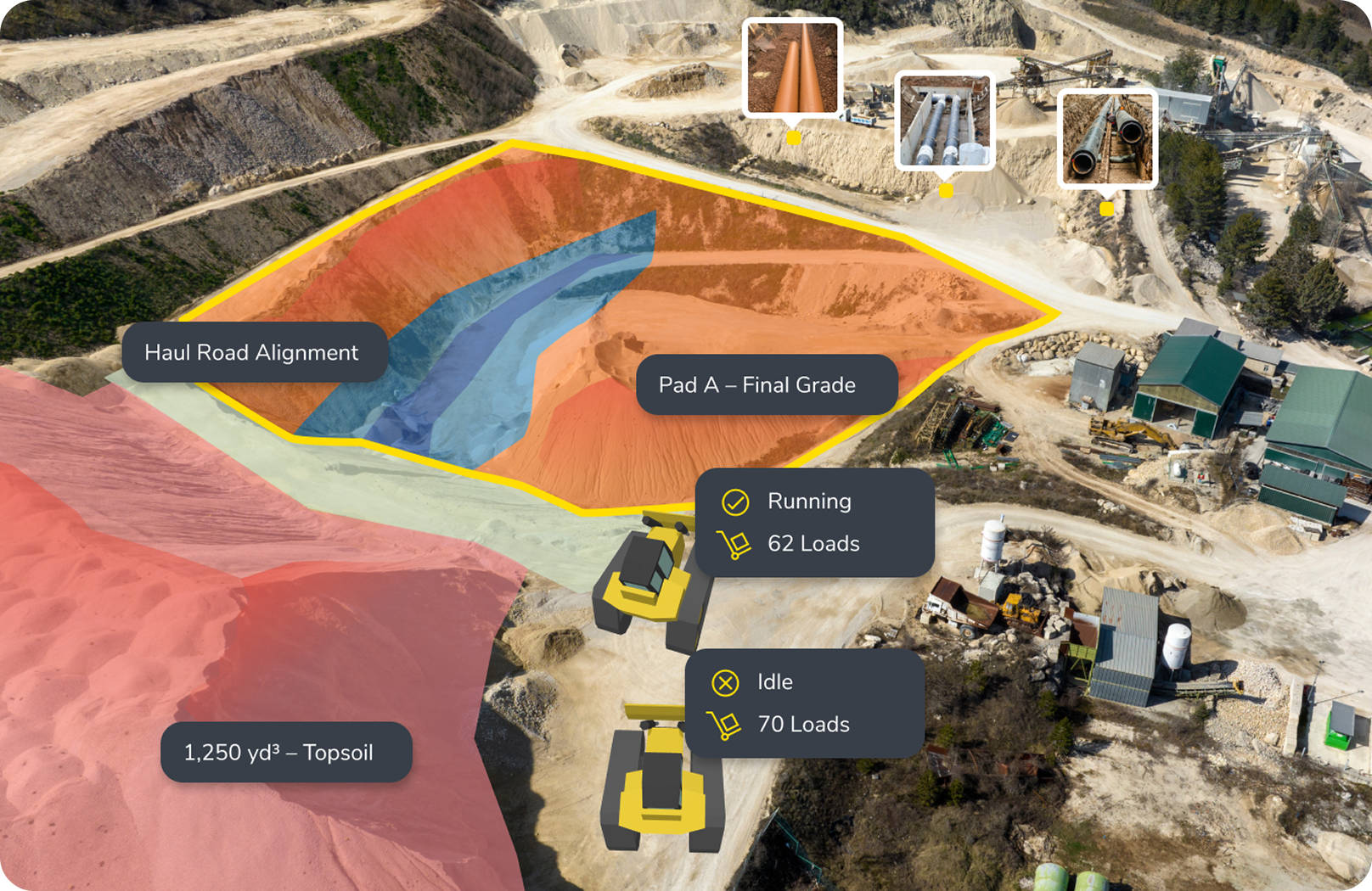

Crush your targets, verify progress daily
|
|

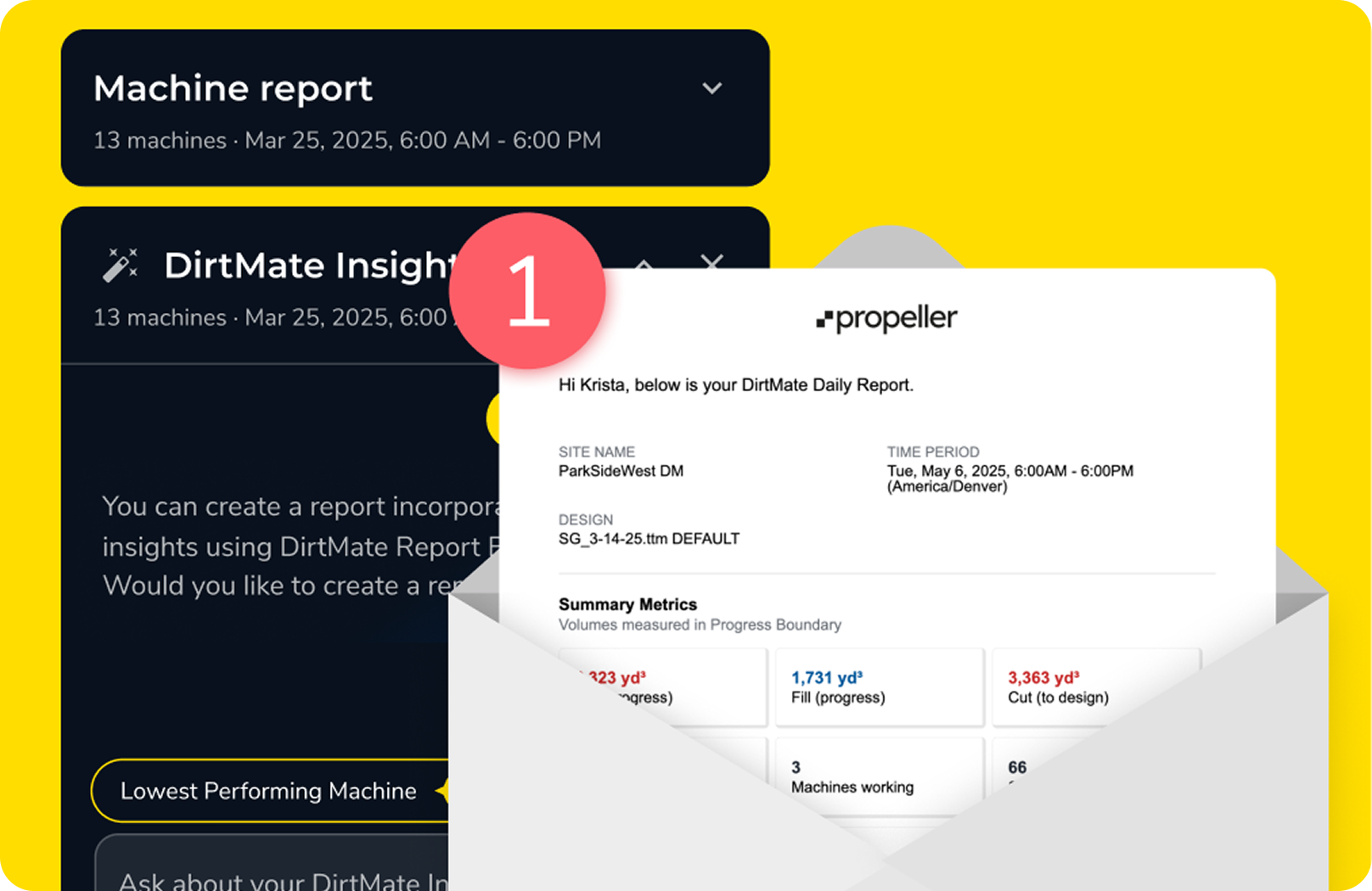

AUTOMATED REPORTING Replace paperwork with automated reporting
|

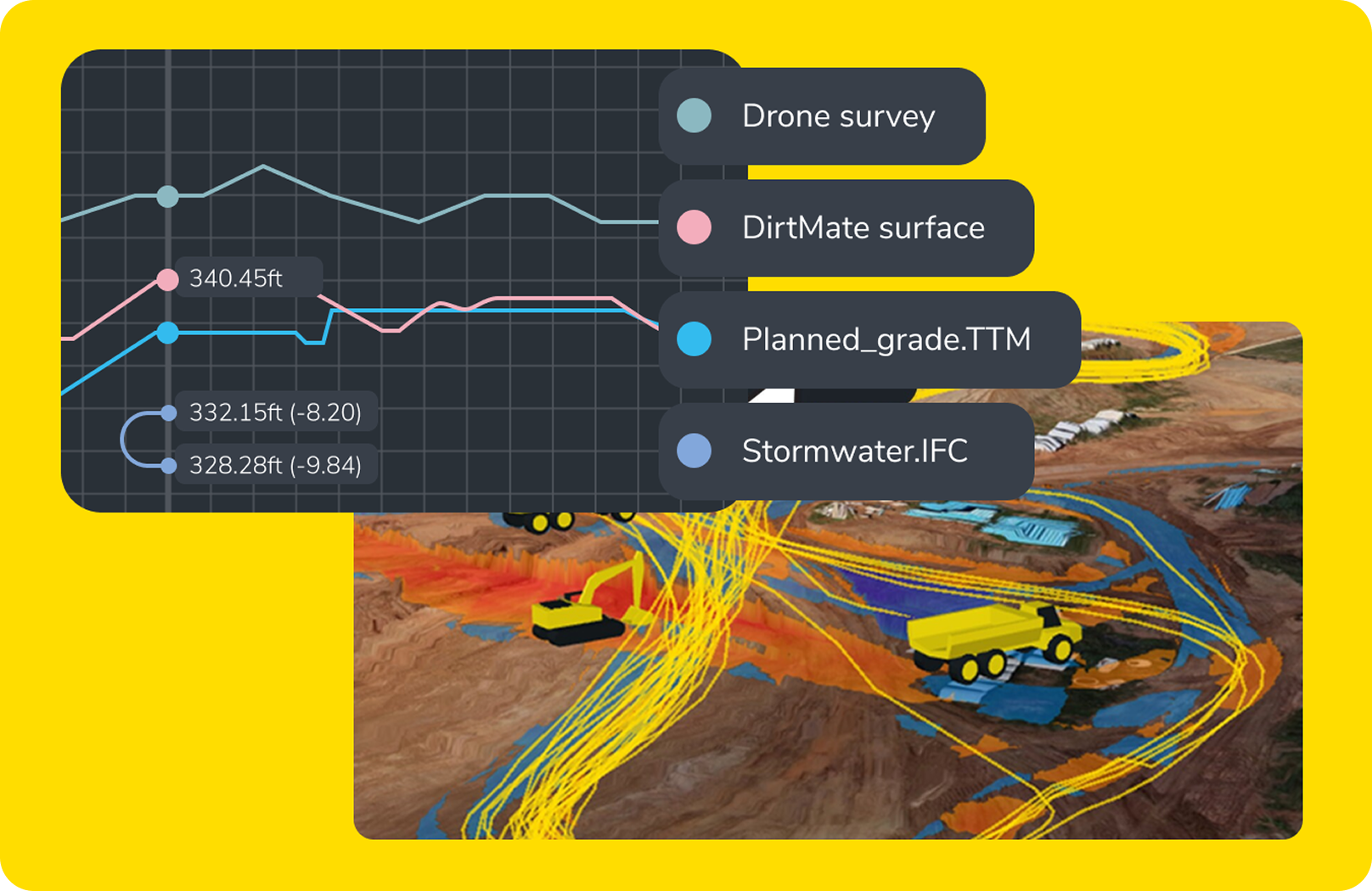

INTEGRATED MAPPING Manage all of your field data from one map
|
MOBILE APP
Your machine and surface data — in your pocket
DirtMate data is available in Propeller Mobile, giving you real-time visibility into machine activity, utilization, and productivity—right from your phone.
In Propeller Mobile, you can:
- See live machine locations for scrapers, haulers, loaders, and graders using the ‘Machines’ tab
- Check key performance metrics to monitor utilization and productivity using the ‘Machines’ tab
- Analyze surface progress with up-to-date DirtMate elevation data using the ‘Layers’ tab
The tech specs
Let’s get into the nitty gritty for all of you who like to nerd out over the technical details. With DirtMate, we prioritized accuracy, flexibility, and simplicity. Here’s what you need to know:
- Dual-frequency GNSS: Achieve high-accuracy data with dual-frequency positioning
- Any OEM: DirtMate works with any equipment brand
- Long-range connectivity: 900 MHz WiFi HaLow for extended range
- 7600 mAh battery: Operates up to 24 hours on a single charge
- Real-time data: Monitor positions and elevations with cellular or WiFi connectivity
- Easy installation: Magnetic mount for quick, universal setup on machines or rover poles (with 5/8” survey thread)
- Durable design: IP66/IP68-rated for weather and environmental resilience
- Global 4G compatibility: Supports 4G LTE bands worldwide
Learn more or request a DirtMate demo
