The Propeller mobile app lets you connect to your AeroPoints 2 via Bluetooth to check battery status, monitor upload progress, and configure network settings from your phone or tablet.
Downloading the Propeller mobile app
The Propeller mobile app is available for iOS and Android. To connect to AeroPoints 2 via the app, your device needs Bluetooth.
| ℹ️ Note: This workflow is only compatible with AeroPoint 2 devices. |
Other requirements:
- An internet connection
- An active Apple ID or Google account
- Android only: Android 10 or higher
Setting up for the first time
- Turn on an AeroPoint 2. Stay within 10ft of the device.
- Open the Propeller mobile app on your phone or tablet.
-

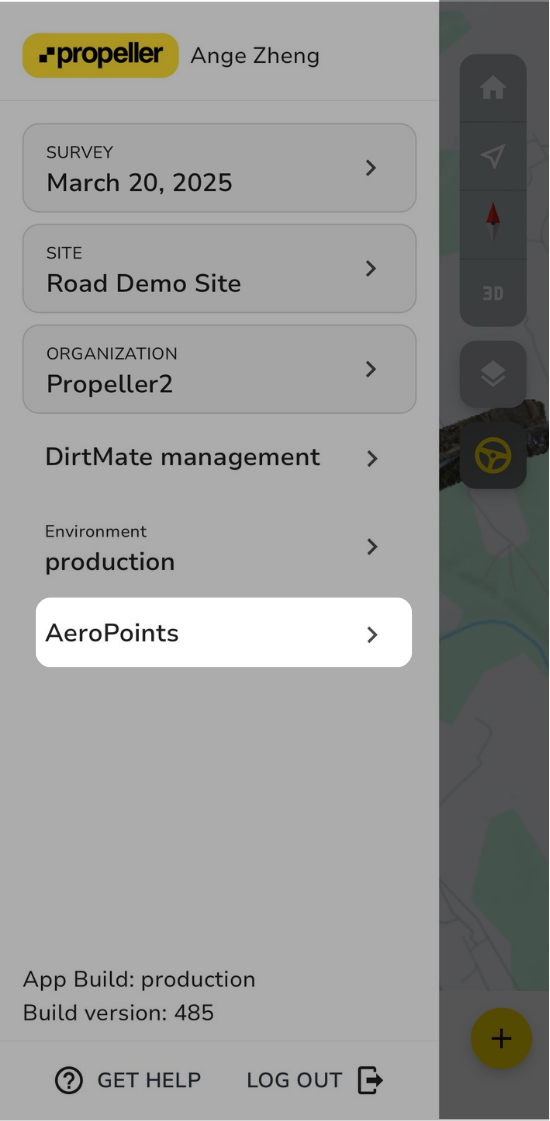

Navigate to the AeroPoints tab from the side menu.
-
The AeroPoint should appear as a card on the screen within a few seconds.
- Tap the card to view the current survey and upload details for that AeroPoint.
Connecting AeroPoints to the app
AeroPoints 2 connect via Bluetooth. With your AeroPoint powered on, enable Bluetooth on your device and open the Propeller mobile app. Navigate to the AeroPoints tab via the side menu. Each connected AeroPoint will appear as a card in the main list.
If an AeroPoint doesn't appear, tap SEARCH AGAIN. Note that AeroPoints 2 can only connect to one Bluetooth device at a time, so confirm the AeroPoint isn't already paired to another device.
Connected AeroPoints display their charging and battery status. Tap the card to open the detail view for more information on charging status and battery health.
Monitoring network diagnostics and upload status
When an AeroPoint is connected to a Wi-Fi hotspot, the detail view shows network and upload information, including:
- The name of the network the AeroPoint is connected to
- Internet connection quality
- Progress of the current upload
- Size and capture date for pending and active uploads
When AeroPoints upload data, the Survey view lists data being uploaded or queued, displayed in chronological order. Once a capture uploads successfully, it no longer appears in the app on the next connection. Check your AeroPoints dashboard for historical data.
| 💡 Tip: If you're having trouble with the connection or upload, you can configure a custom hotspot. See Configuring a custom hotspot with the Propeller mobile app |
Frequently asked questions
My AeroPoint isn't showing up in the app. What should I check?
Make sure Bluetooth is enabled on your device and the AeroPoint is powered on and within range. AeroPoints 2 can only connect to one Bluetooth device at a time — confirm the AeroPoint isn't already connected to another device. If it still doesn't appear, tap SEARCH AGAIN.
