The AeroPoint 2 has two indicator lights that show its current operating mode, so you can confirm it's logging, uploading, or charging correctly.
Indicator lights
The AeroPoint 2 has two indicator lights on the device:
- Logging light: shows GPS survey behavior - whether the AeroPoint is actively logging satellite data.
- Network light: shows network and upload behavior - whether the AeroPoint is searching for Wi-Fi, connected, or uploading data.
The AeroPoint has printed instructions describing how these lights react based on the AeroPoint’s mode. The Propeller mobile app will also display the current operating mode.
AeroPoint modes
| Mode | Logging light | Network light | Sample video |
|---|---|---|---|

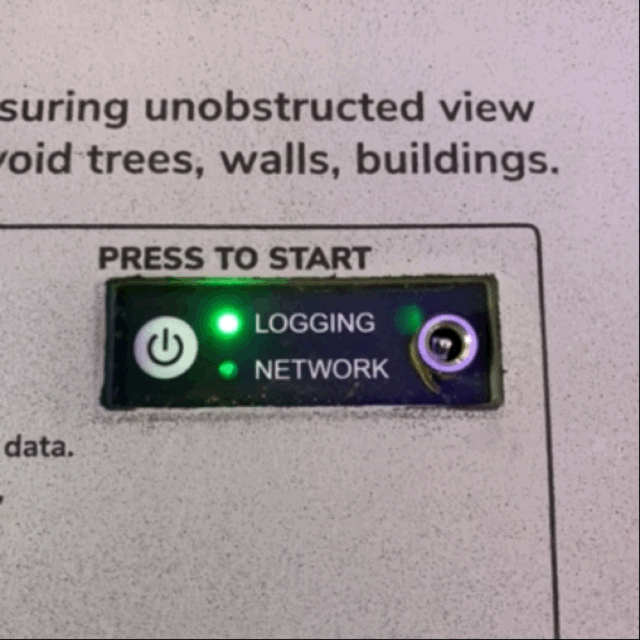

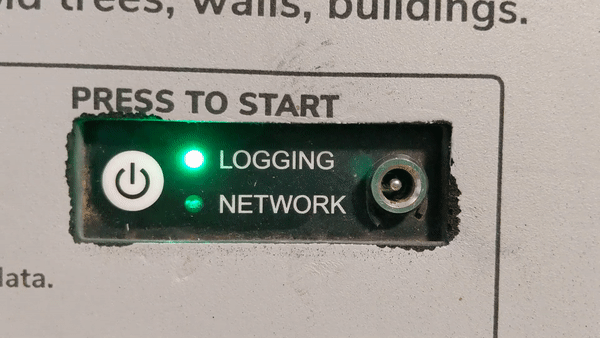

| Logging data | Solid on | Off |
|

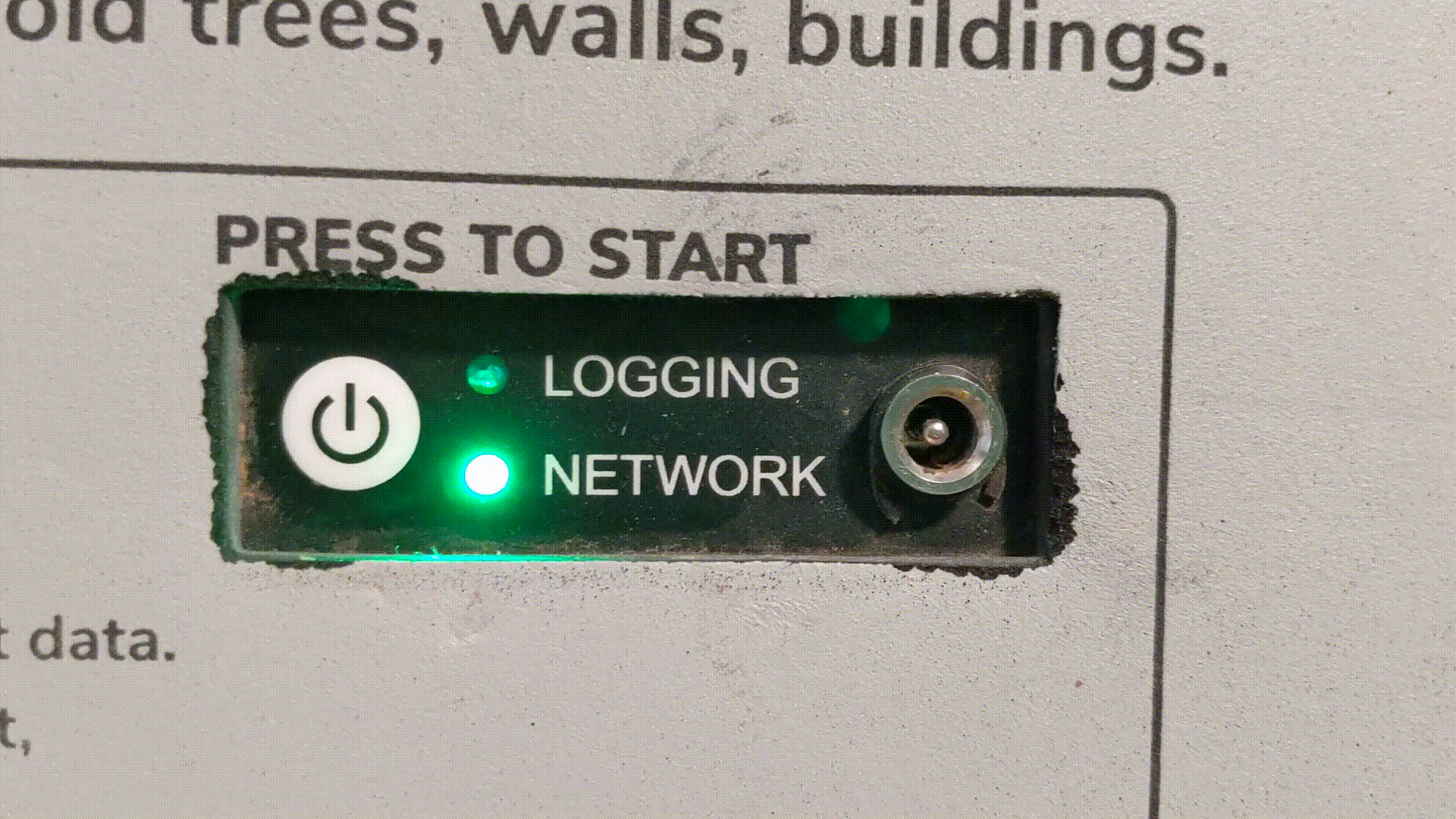

| Searching for a Wi-Fi network | Off | Blinking |
|

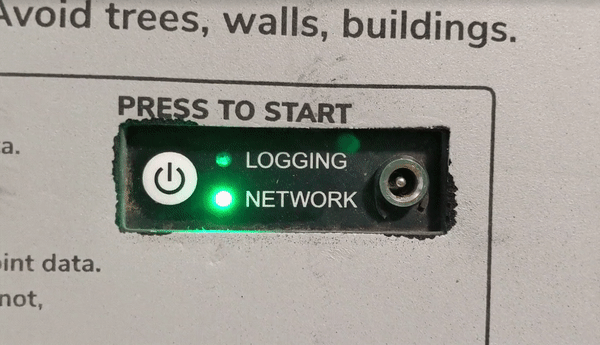

| Uploading data to Wi-Fi | Off | Solid on | |
| Updating firmware | Alternately blinking | Alternately blinking |
Charge Status
To check your AeroPoint's charging status:
- Plug the AeroPoint into a power source.
- Collect a short test capture (under 1 minute).
- Upload the capture.
After a successful upload, the Logging and Network lights show the charge status:
| Charge status | Logging light | Network light | Sample video |
|---|---|---|---|

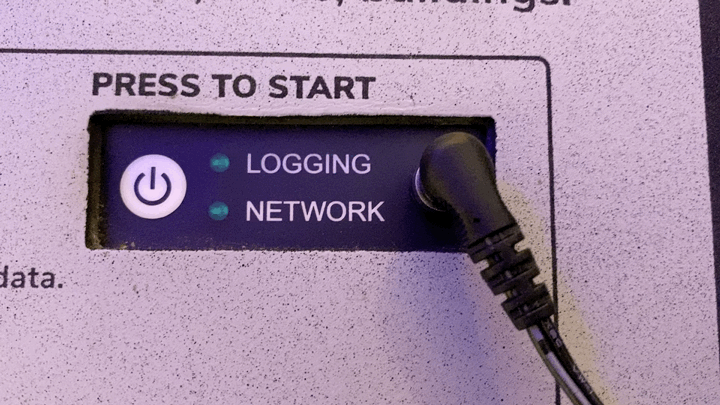

| Currently charging | Blinking | Blinking | |
| Fully charged | Solid on | Solid on |  |
I still can't do it!
We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.
If you're stuck, the Propeller hardware support team may be able to help. You can contact them by emailing hardwaresupport@propelleraero.com.au.
