How to Use the PDF Overlay Feature


The ability to overlay PDF files on your drone surveys can help simplify project planning, spot inconsistencies between the design and current survey, and visualize progress towards the final design.

Import PDF

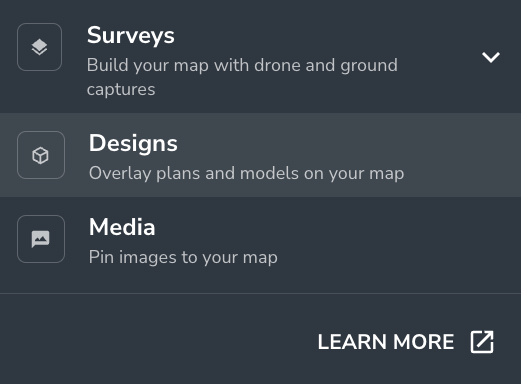

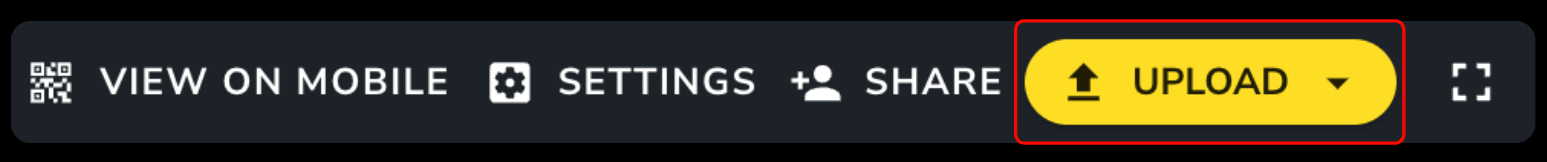

Click the IMPORT A DESIGN button from the DESIGNS tab.

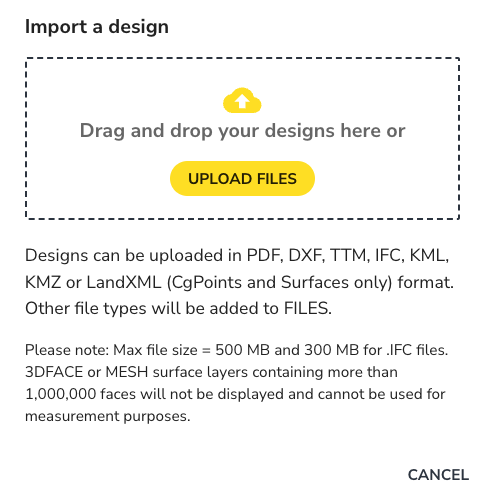

Drag and drop (or navigate to) the PDF file you want to overlay on your site map.

Please note: Only the first page will be imported if you have a multi-page PDF. If you would like to add all the PDF pages, make sure to save those pages individually and import them into the Platform.

Your PDFs will be available in the DESIGNS tab, however, you must first turn the layer on and georeference it before you can visualize it on the map.

Georeference PDF overlay

Once you have imported the PDF, you will need to georeference it to the survey. Activate the layer by checking the PDF Page 1 checkbox.

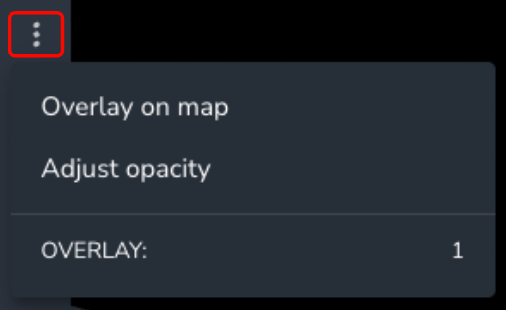

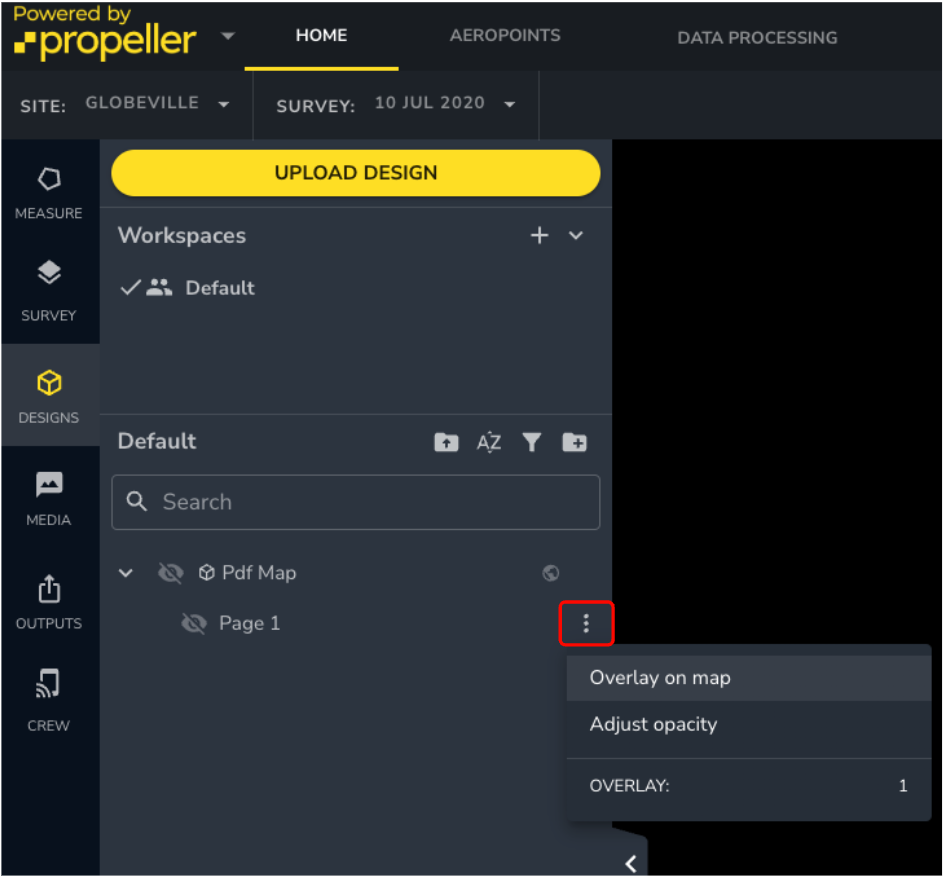

Click the three dots to the right of the PDF Page 1 and choose Overlay on map.


If needed, click on the arrow on the left side of the split-screen view to expand your view.


Pick easily identified points in both the PDF and the map to make georeferencing easy and accurate.

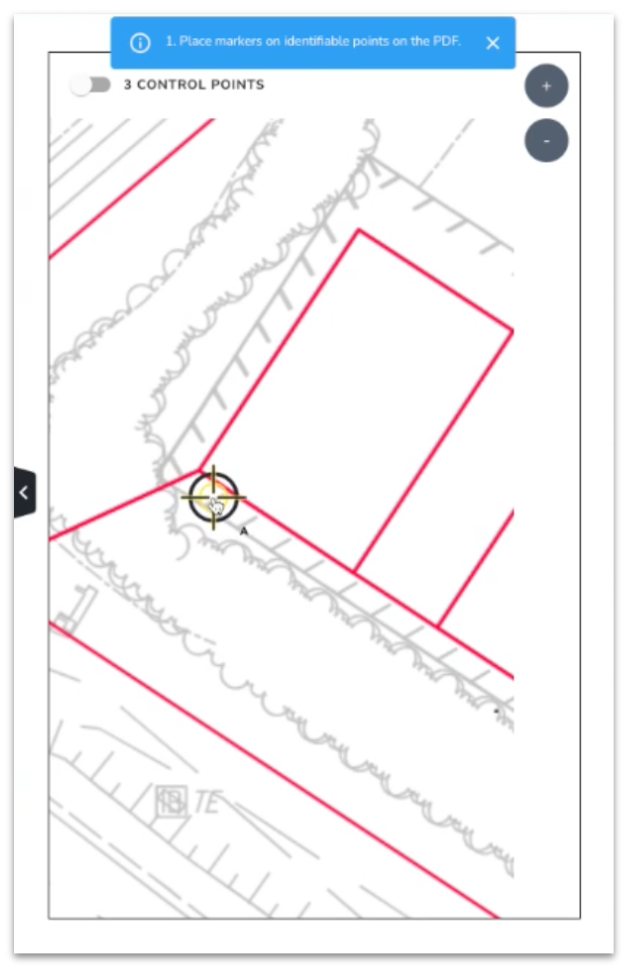

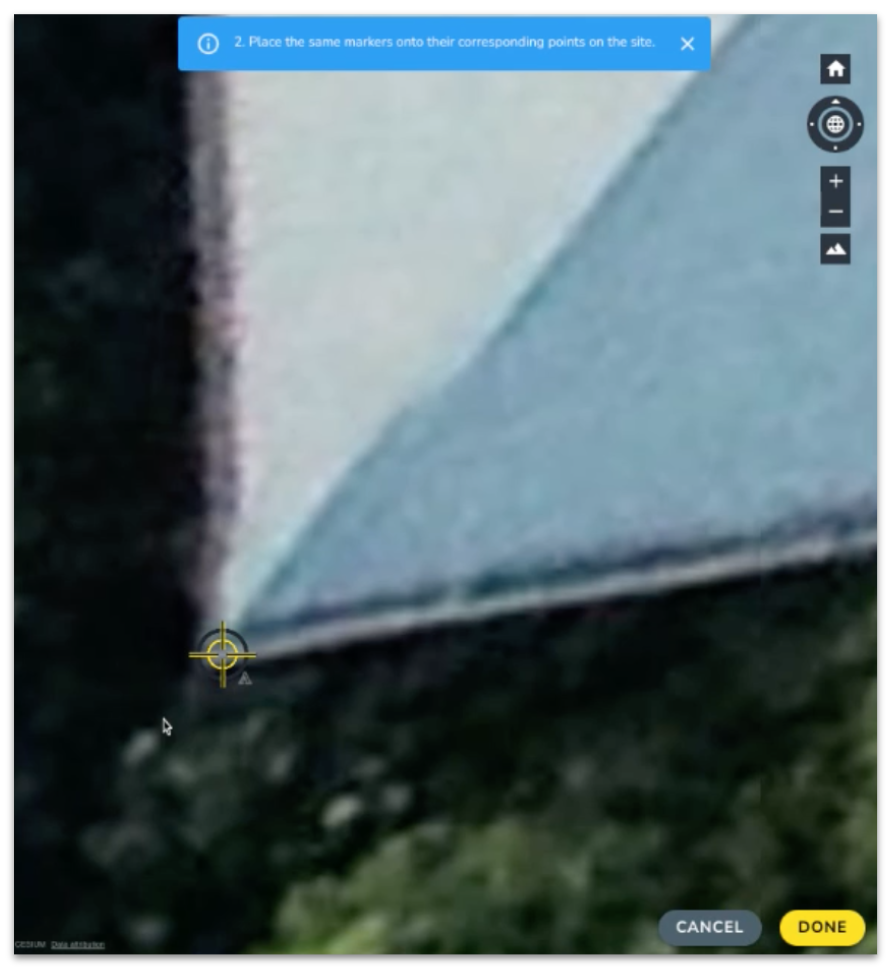

Click on the chosen features or reference points in the PDF first, and then click on the location of that point on the map to lock that control point in place. Once finished, click DONE in the bottom right corner.

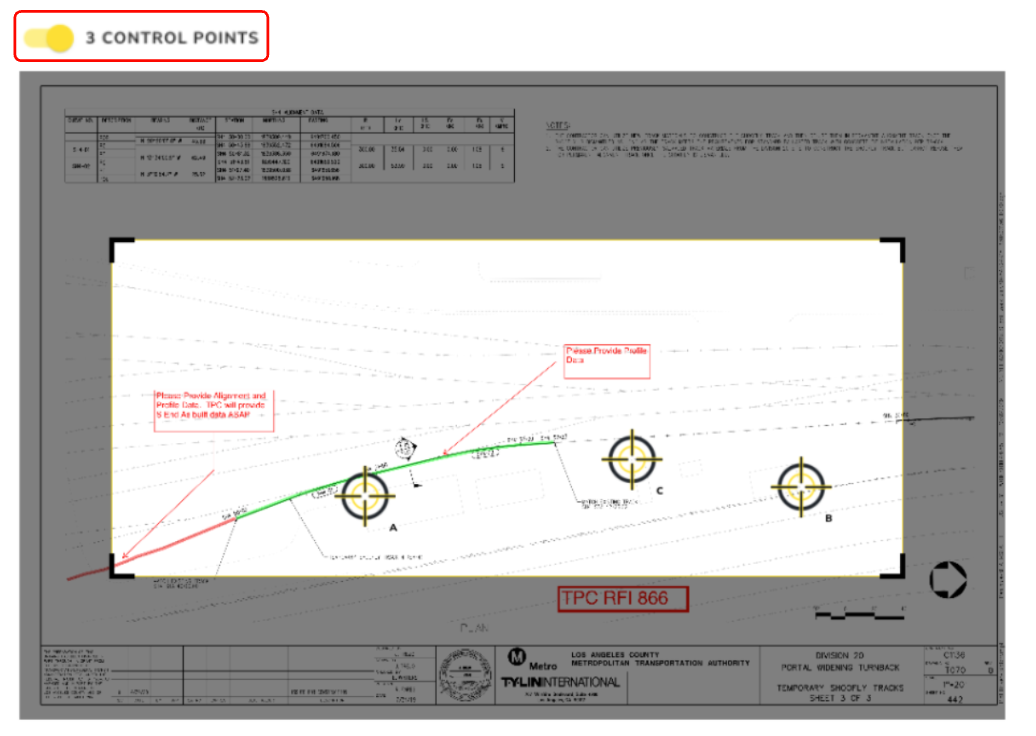

Two control points are usually sufficient when georeferencing PDFs. However, if you would like to use three, toggle on 3 CONTROL POINTS in the top left corner of the PDF.



To adjust the PDF overlay, click on the three dots to the right of the PDF Page 1 overlay and choose Overlay on map.

Adjusting the opacity

You can adjust the opacity of the PDF and the PDF text.

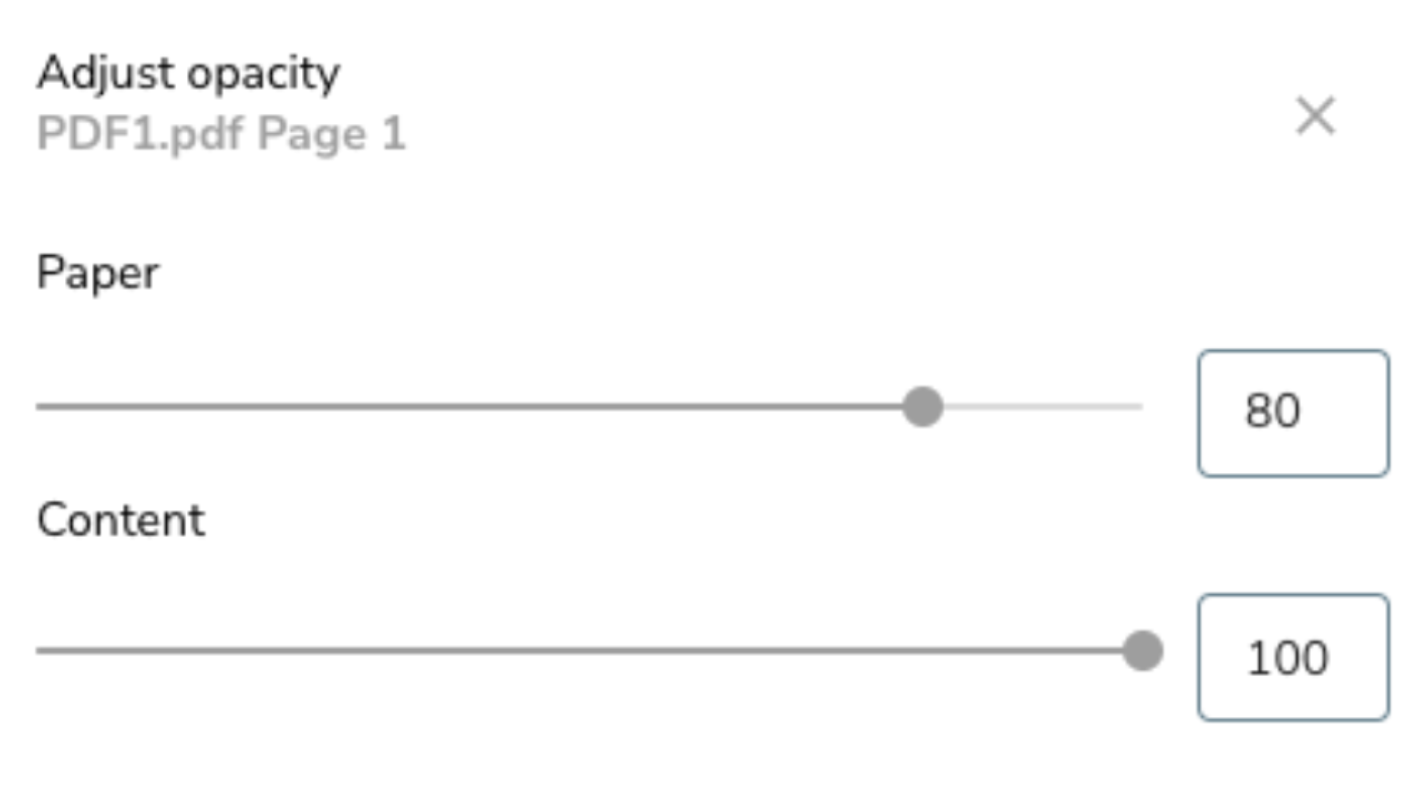

Click on the three dots to the right of the PDF Page 1 overlay and choose Adjust opacity.


To adjust the PDF page background, slide the selector to the desired opacity. 100 is a solid background, while 0 will remove the background entirely.

Similarly, slide the selector to change the opacity of the PDF text.


The EXPORT PDF MAP feature is currently not supported with PDF overlays.
