How Do I See the Survey Area Boundary For My Dataset?


All datasets generated after 1 March 2018 will automatically be processed with a KML boundary indicating your site's limits.

How to view the boundary

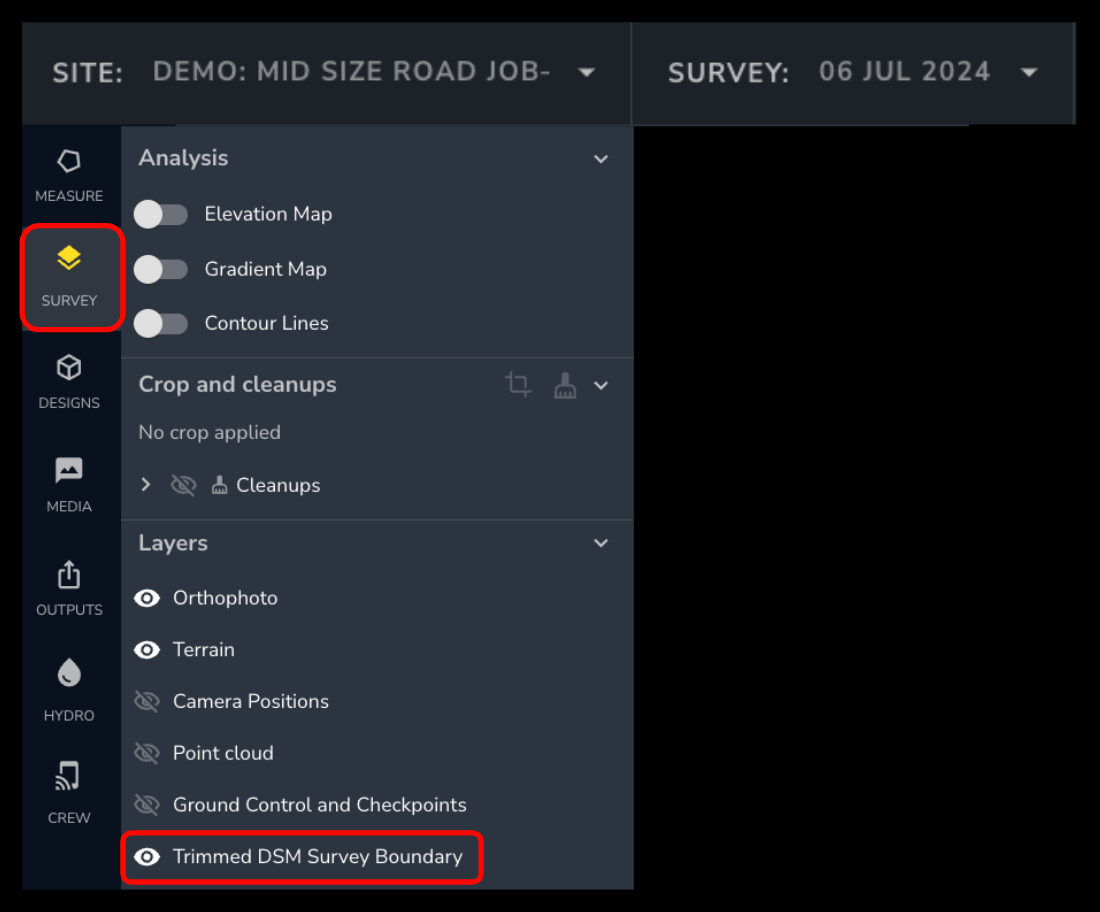

From the SURVEY tab, enable the boundary in the SURVEY LAYERS.

What can I do with the terrain boundary?

  • Clearly see the limits of your survey area in a way that's consistent from one dataset to another.
  • Create a consistent whole survey area Cut/ Fill or Takeoff Report by converting the boundary to an annotation and using Volume Compare to measure the changes across your site between datasets.

How to convert the terrain boundary into a measurement for use with the measurement tools

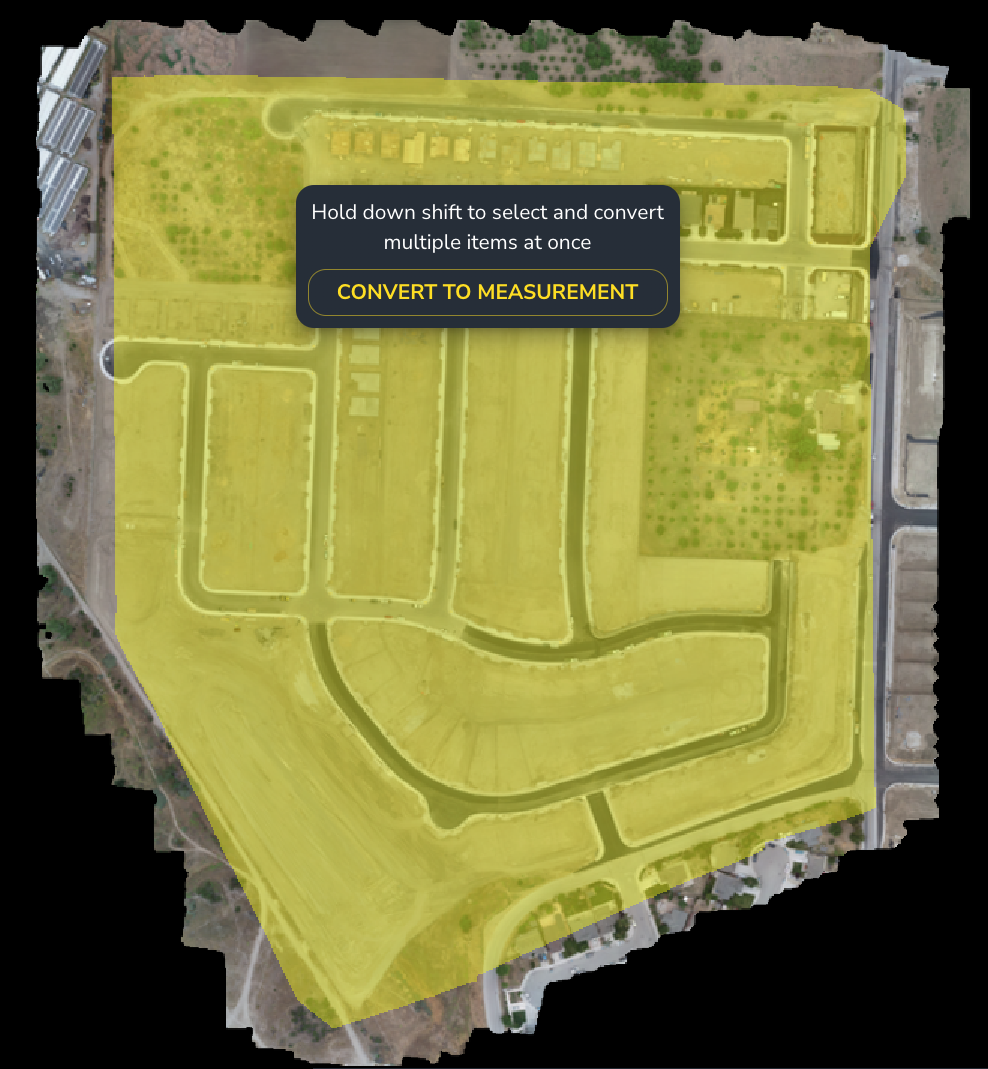

From the SURVEY Tab toggle on Trimmed DTM Survey Boundary in the SURVEY LAYERS section.  Right-click the highlighted shape on the map and click the CONVERT TO MEASUREMENT button.

Select the type of measurement you wish to create from the options listed.




I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, you can connect with our support team by clicking the support button on the top right corner of your user portal.
