How to Plan a Terrain Follow Mission with DJI Pilot 2


DJI Pilot 2 is the flight software used by the DJI Matrice 300/350 RTK (M300/350), the DJI Matrice 350 RTK (M350), and the DJI Mavic 3 Enterprise (M3E).

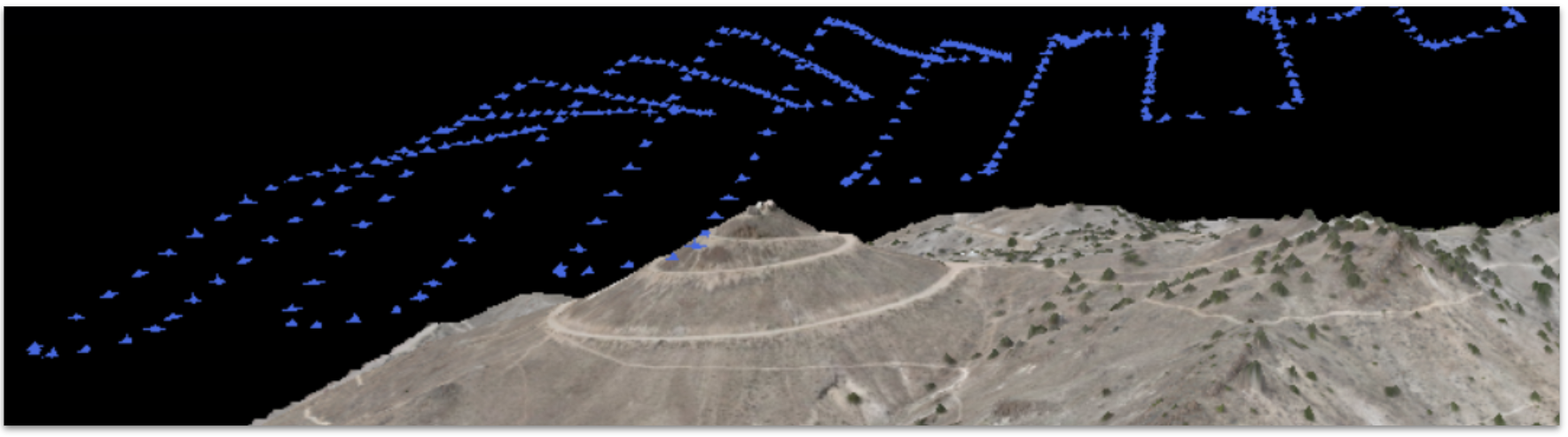

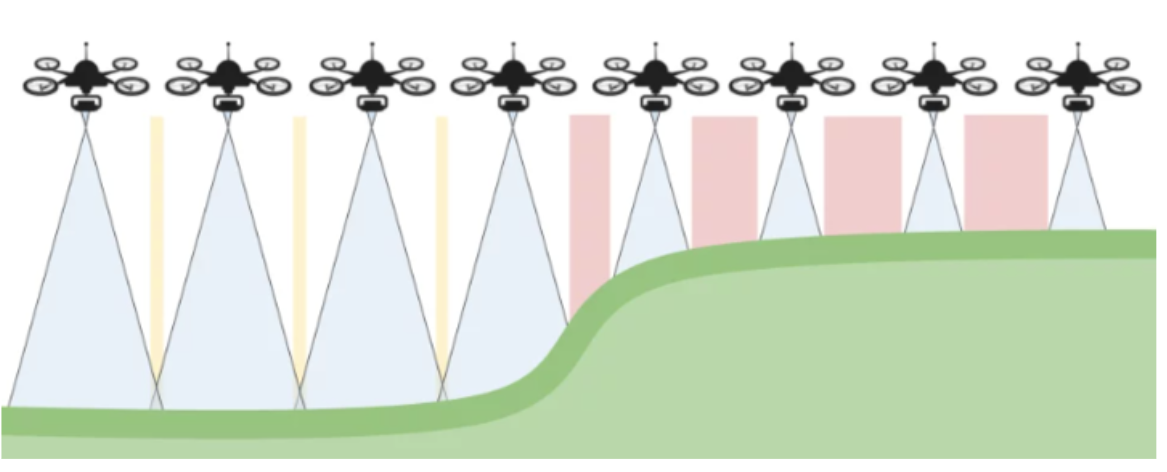

Terrain Follow is suggested for sites with varying elevations and will help ensure a consistent ground sampling distance across your site.

All standard mission settings will remain the same for Terrain Follow missions, including altitude and camera settings. Please view our other help articles if you have specific mission settings questions for a Mavic 3E mapping mission, a M300 or M350 Mapping mission, a linear/corridor mission, a Smart Oblique mission, or if you plan to create and import a KML file for your mission plan.

Planning a Terrain Follow Mission

1. Power on the remote controller (RC) and aircraft.

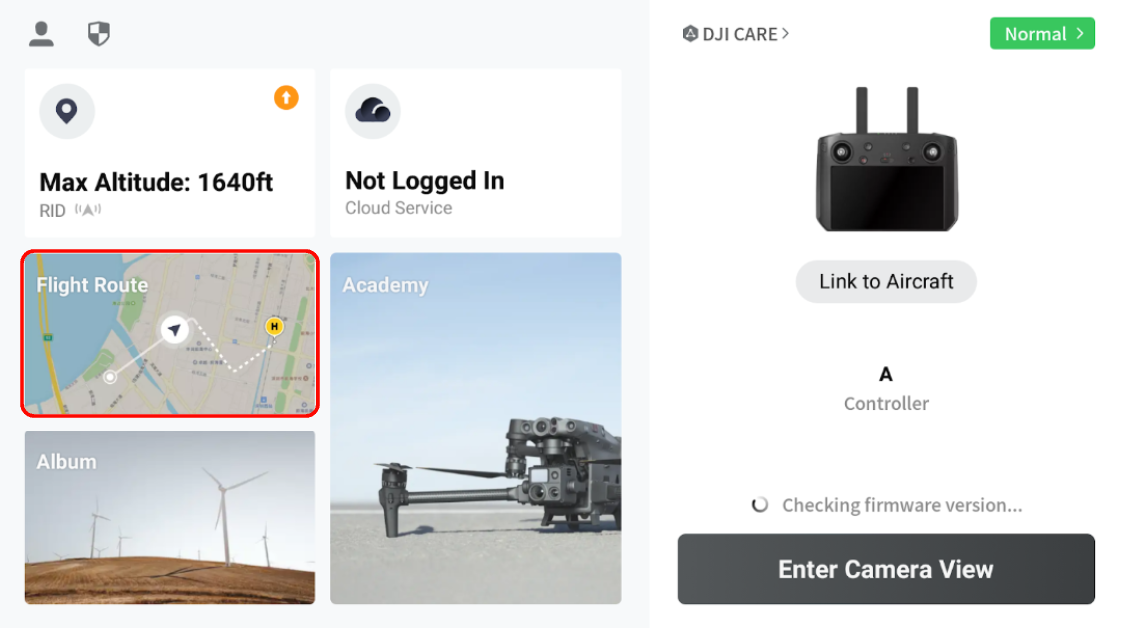

2. From the home screen of DJI Pilot, tap Flight Route.

DJI Pilot 2 Flight Route.png

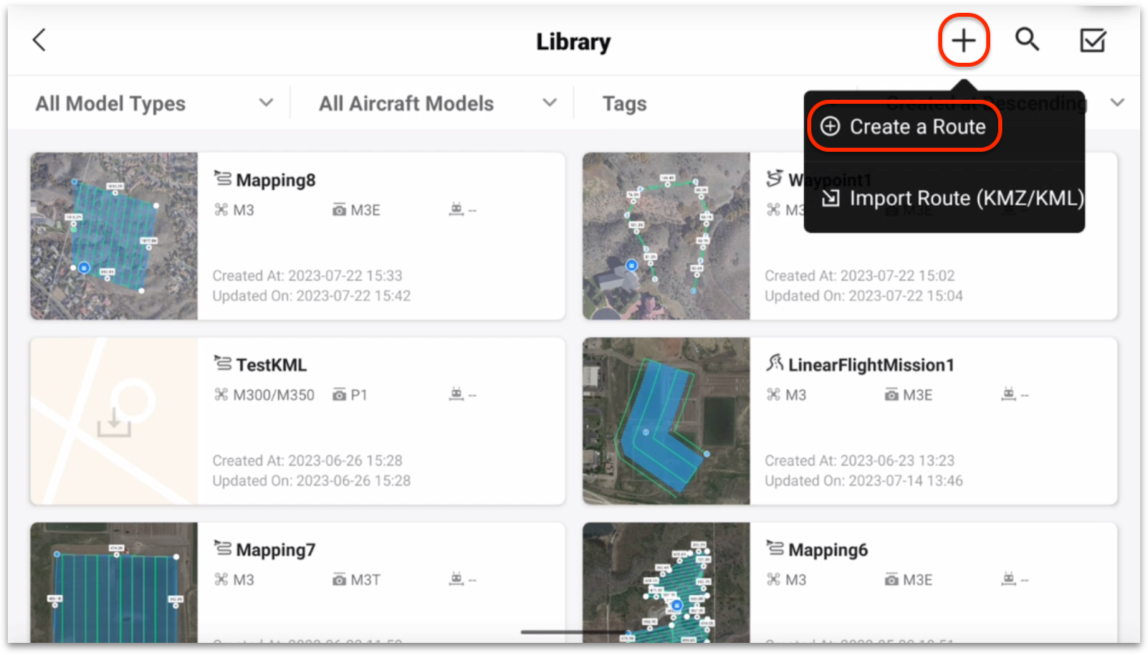

3. Tap the + in the top-right corner, then tap Create a Route.

Create A Route.png

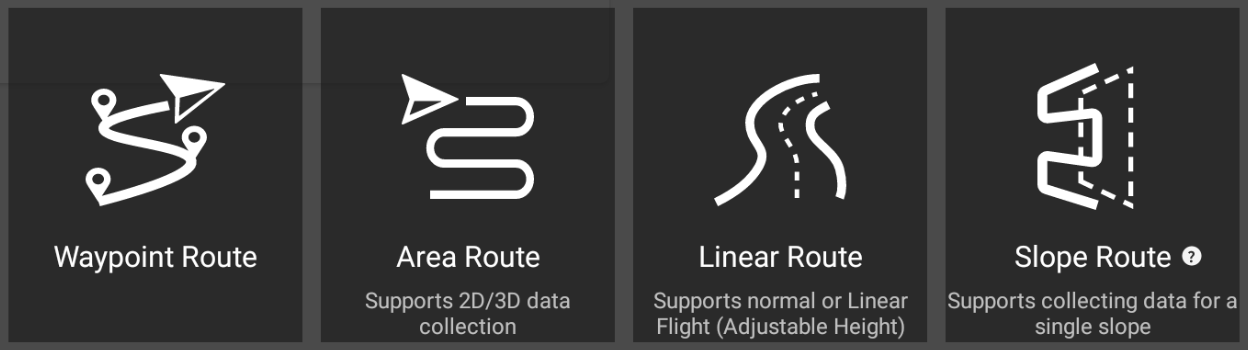

4. Tap on your mission type (Terrain Follow is available for Waypoint, Area, and Linear Routes). This article will cover the Area Route option.

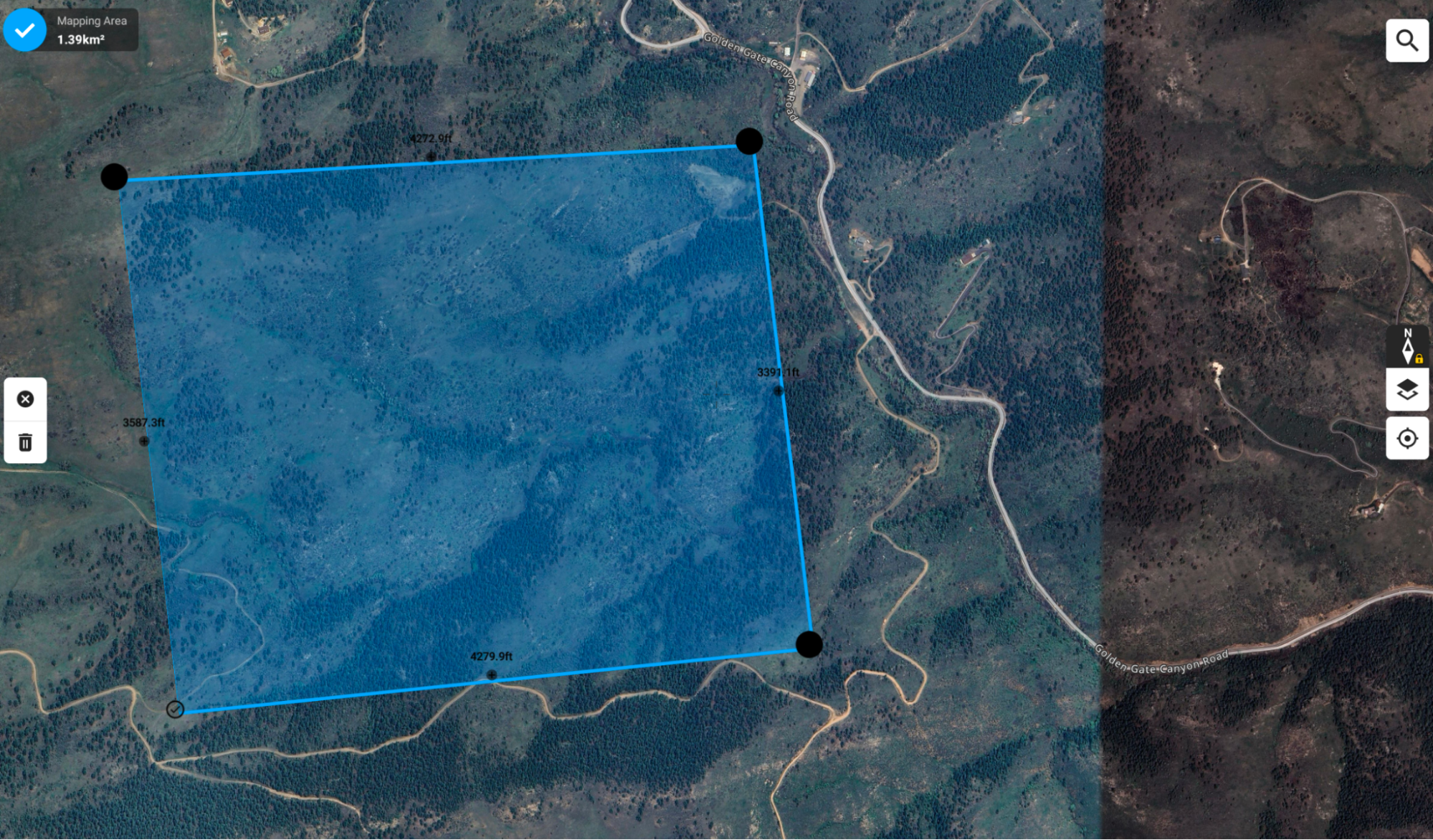

Pilot 2 Mission Types.png5. Navigate to your site and tap the screen to start dropping points, marking the flight area as you would for a standard mission.

Terrain Follow Mapping Area.png

6.  Tap the checkmark at the top-left when you’re done marking the area.

7. Select the drone and camera type. Estimated flight times will change based on the drone you are flying.

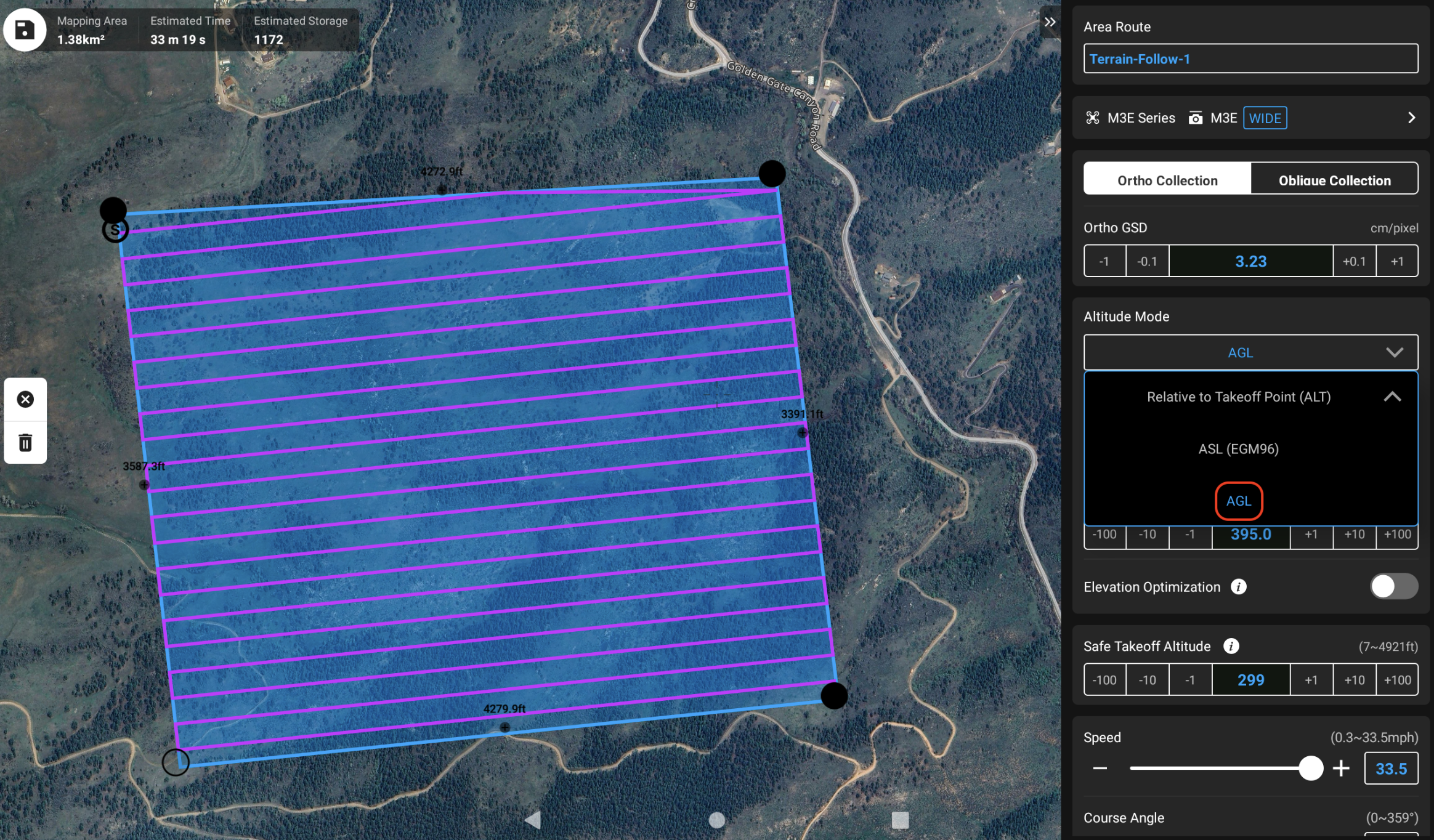

8. Tap the Altitude Mode drop-down and select AGL. (Terrain Follow is only available if AGL is selected).

Terrain Follow Altitude Mode.png

There are two Terrain Follow modes—DSM Follow and Real-Time Follow (M3E only).

An RTK connection is NOT required for either of these modes on the M3E, but is suggested for lower-altitude flights or areas with large altitude changes.

An RTK connection IS required for DSM Terrain Follow missions with M300 and M350.

Option 1: DSM Follow (Download from Internet)

Important note: ASTER DEMs are available for all flight areas, but the potential accuracy and time of collection are important to consider when flying in areas with recent terrain changes or development. The downloadable “ASTER” DEM was produced between March 1, 2000 and November 30, 2013. Take this into serious consideration when planning around terrain or features that may have changed.

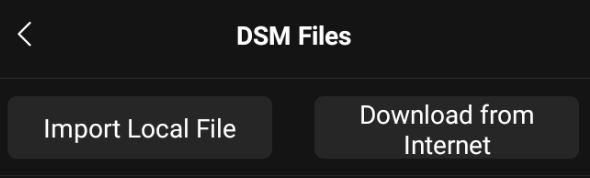

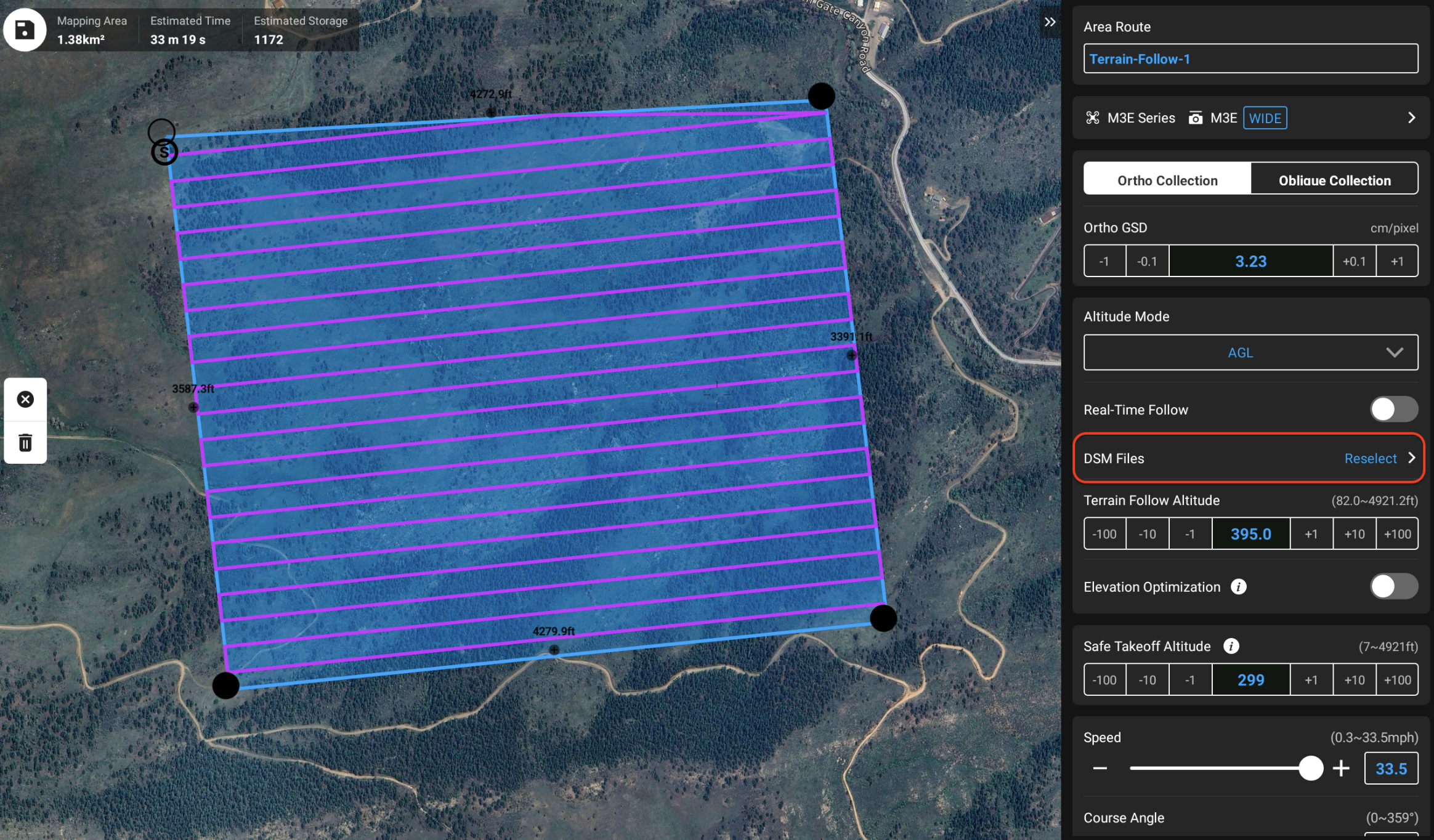

1. From the settings menu (after selecting AGL in the previous step), tap DSM Files.

Terrain Follow DSM Files.png

2. Tap Download from Internet (make sure your RC is connected to the Internet).

You can also provide your own DSM to use for terrain following. This DSM must be in WGS84 and have accurate vertical data. Propeller does not provide custom DSM support.

Terrain Follow DSM Import Options.png

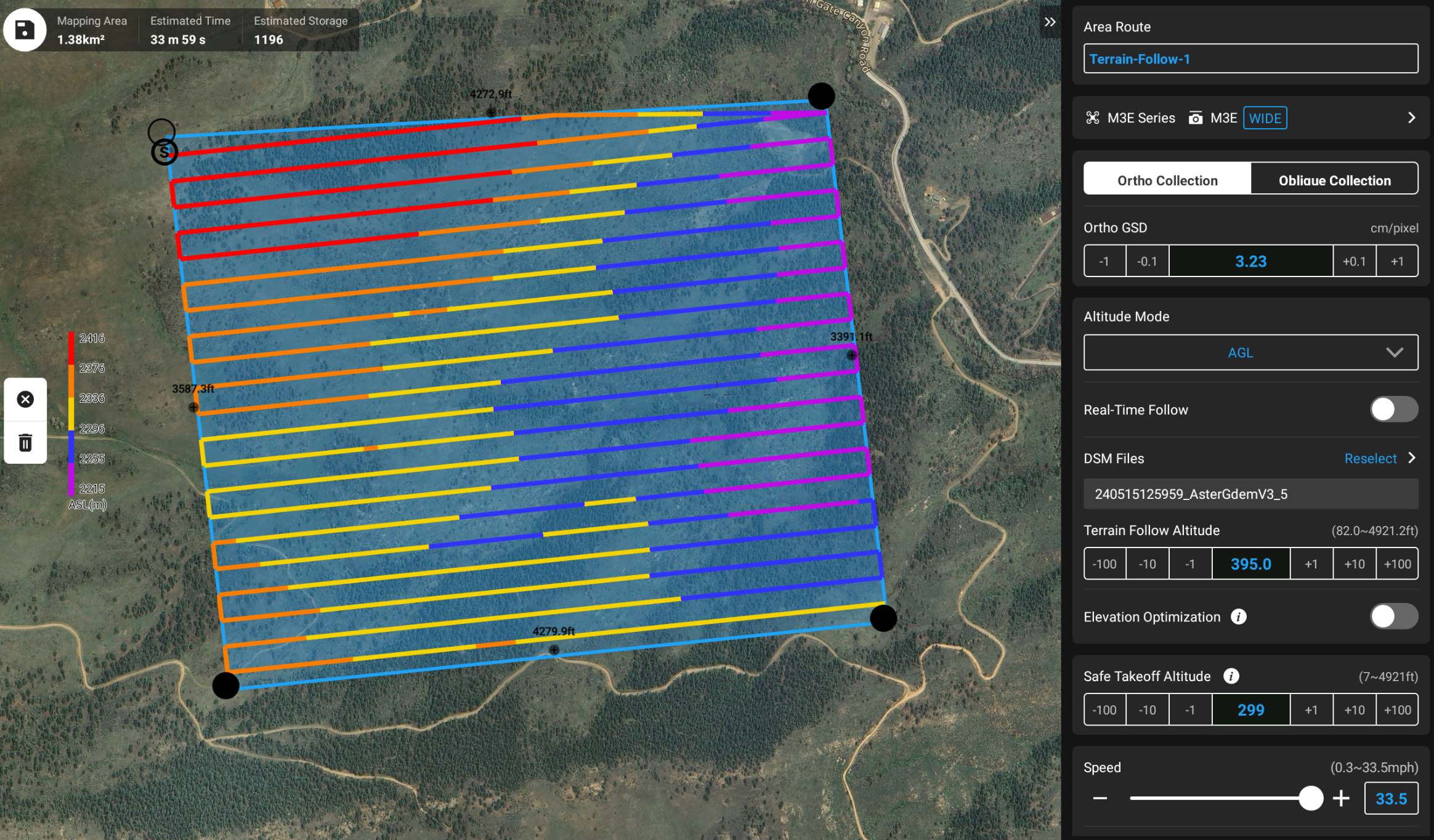

3. Once the RC generates the flight plan, you will be able to visualize the flight plan using the color key at the bottom of the screen. Adjust the height as needed. While the drone will select an optimal speed, consider lower speeds for sites with more severe elevation change

If you receive an error message stating that your flight area is outside the DEM coverage area, go back into the Terrain Follow settings and confirm you have the correct DEM downloaded and selected.

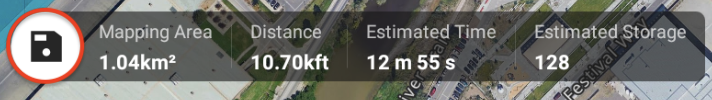

4. Tap the save icon to complete the mission plan. If you need to edit any of the settings, click the pen icon to reopen the settings.

Pilot 2 Save Icon.png

Please see our article on editing a mission to change any mission settings.

Terrain Follow Color Coded Flight Plan.png

Option 2: Real-Time Follow (Mavic 3 Enterprise only)

Important Note: This mode takes advantage of the onboard vision system to calculate altitude. While the Mavic does a great job of navigating terrain for a constant GSD (ground sampling distance), it is still important to plan around obstacles or abrupt changes in altitude (towers and large vertical faces).

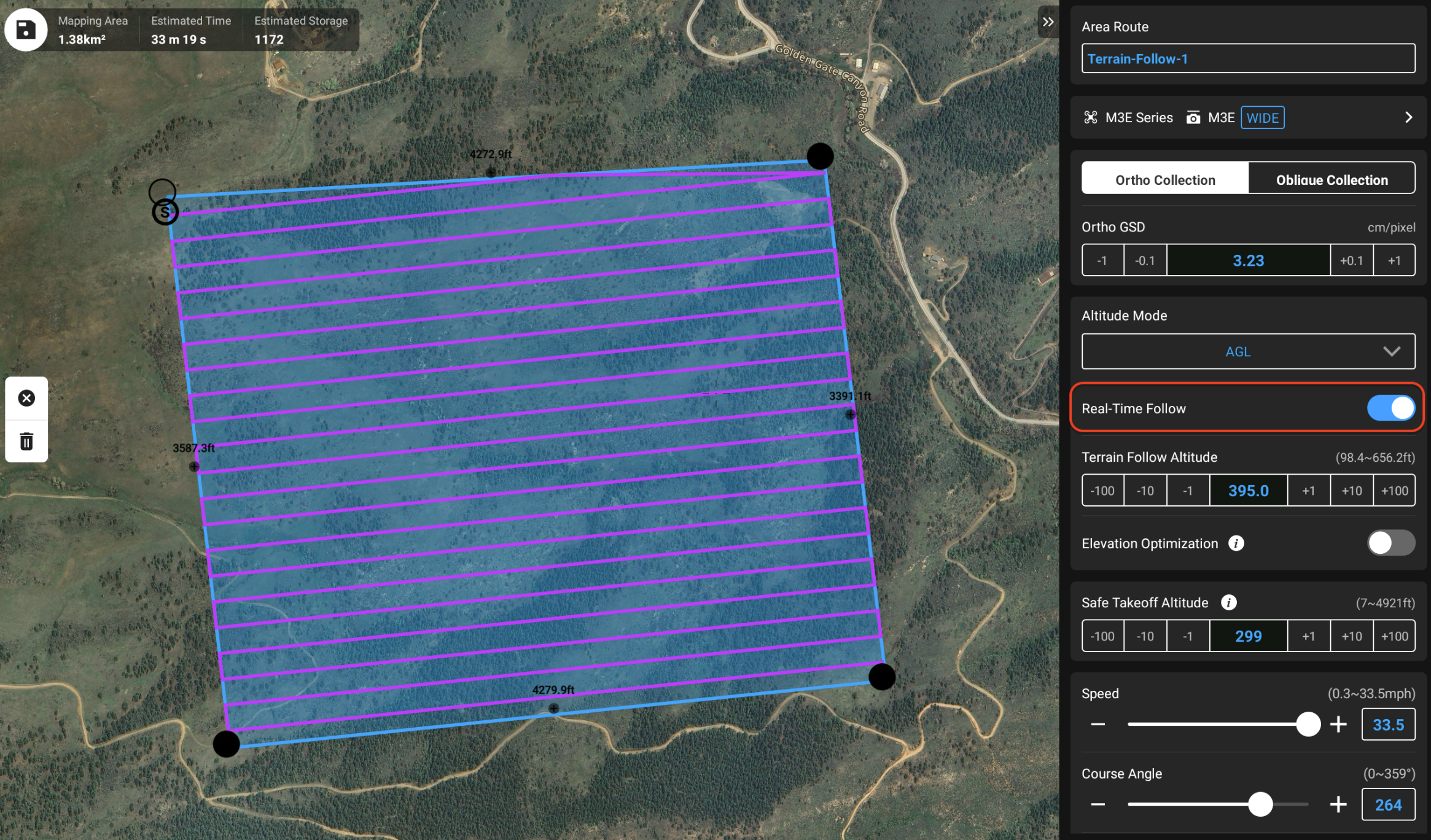

1. From the settings menu, toggle on Real-Time Follow. Make sure you have set your Altitude Mode to AGL.

Real Time Follow.png

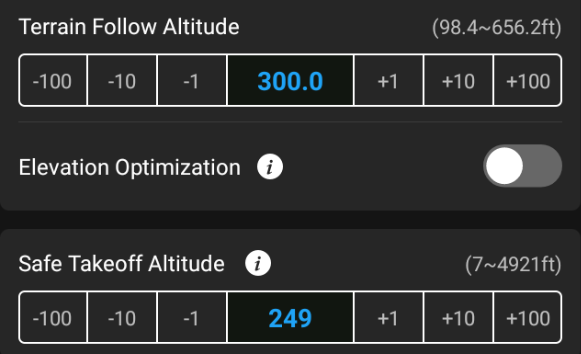

2. Set your Terrain Follow and Safe Takeoff Altitudes.

Terrain Follow Altitudes.png

3. Tap the save icon.

Pilot 2 Save Icon.png

Remember to follow all of the standard settings for your mission type.

If flying in areas with significant terrain change, consider increasing your overlap percentage to 85%-90% to adjust for the vertical change.

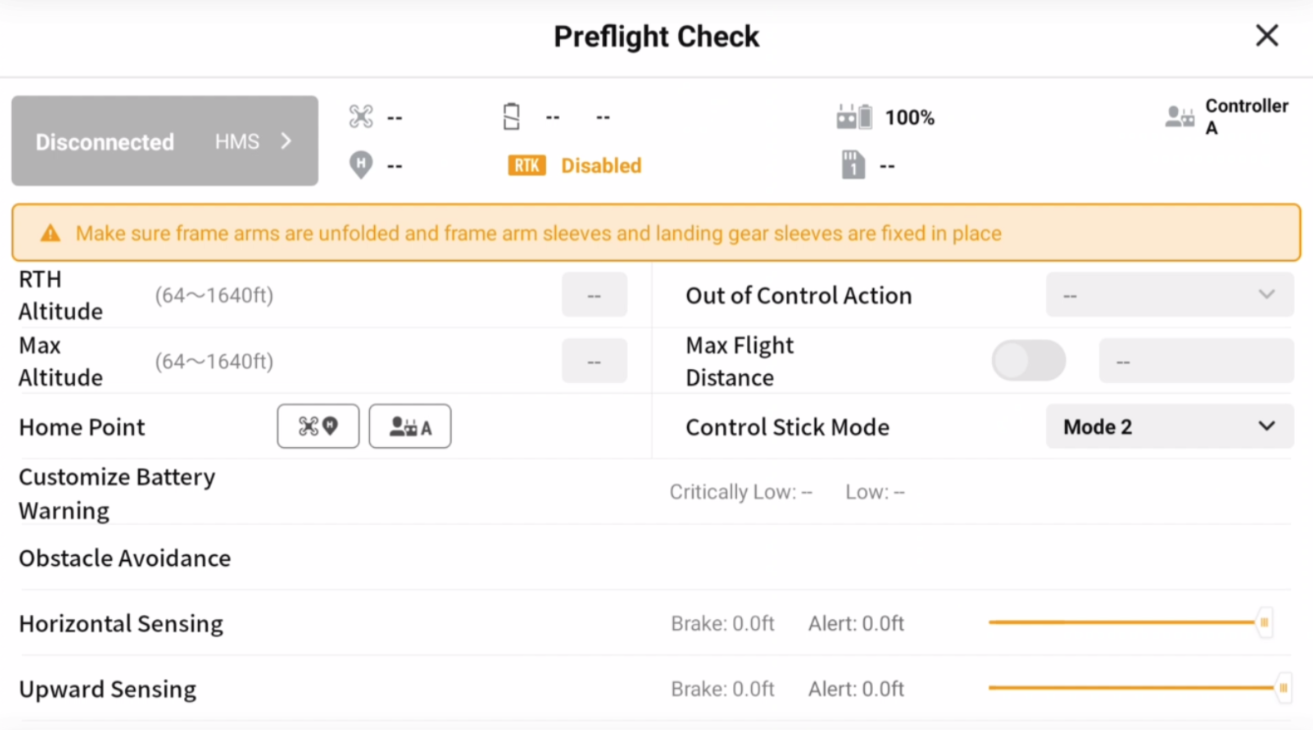

5. Double-check your settings in the Preflight Checklist.
