Propeller's WMTS connection streams your most recent orthophoto directly into HCSS HeavyJob, so your map always reflects the latest drone flight without any manual exports.
| ℹ️ Note: You must have the WMTS connection enabled on your Propeller account to complete this workflow. If you don't see the WMTS option in Settings, contact your customer success manager or reach out via the in-app chat. |
How to connect Propeller to HCSS HeavyJob
In HCSS HeavyJob:
-

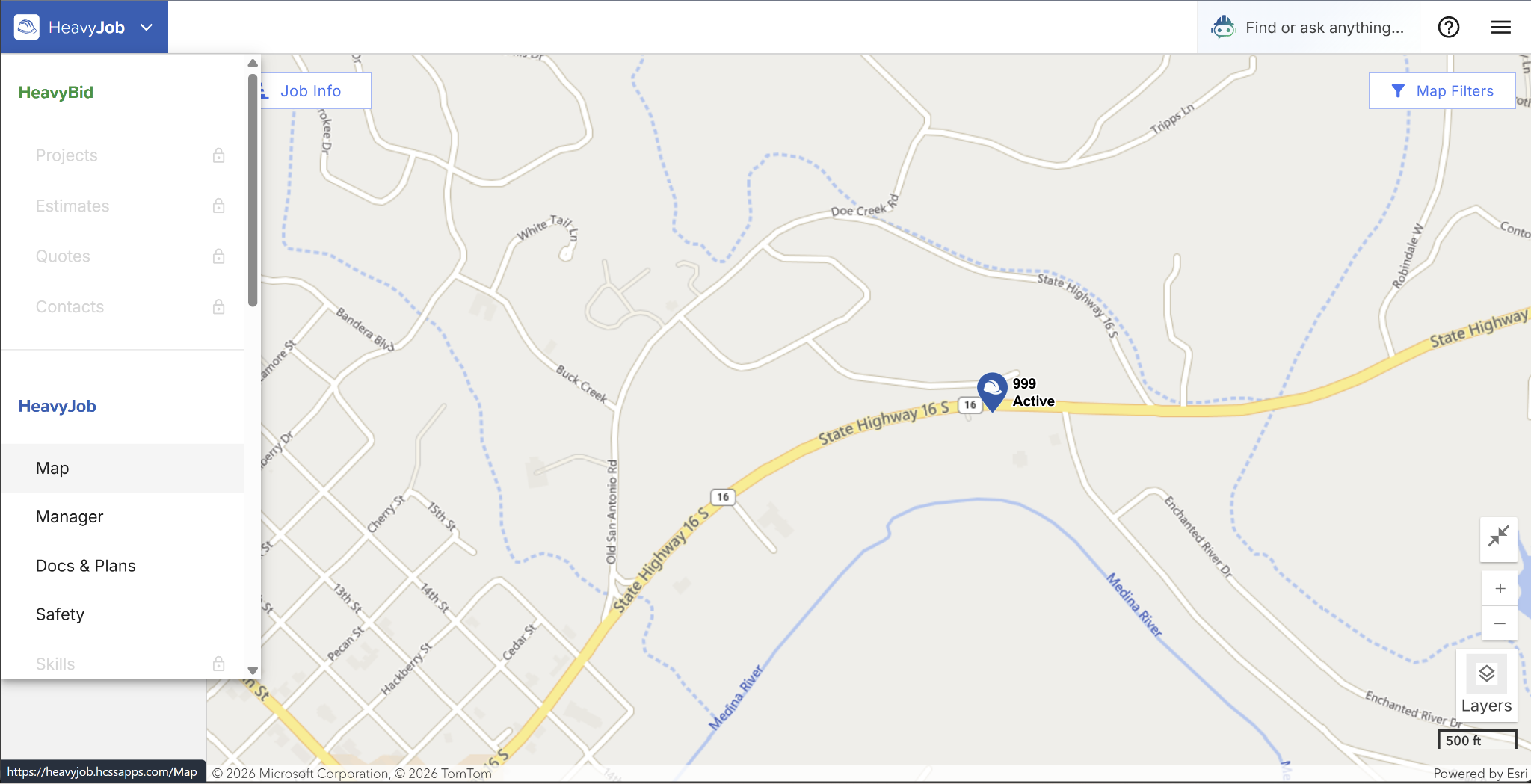

Open HeavyJob and go to Map.
-

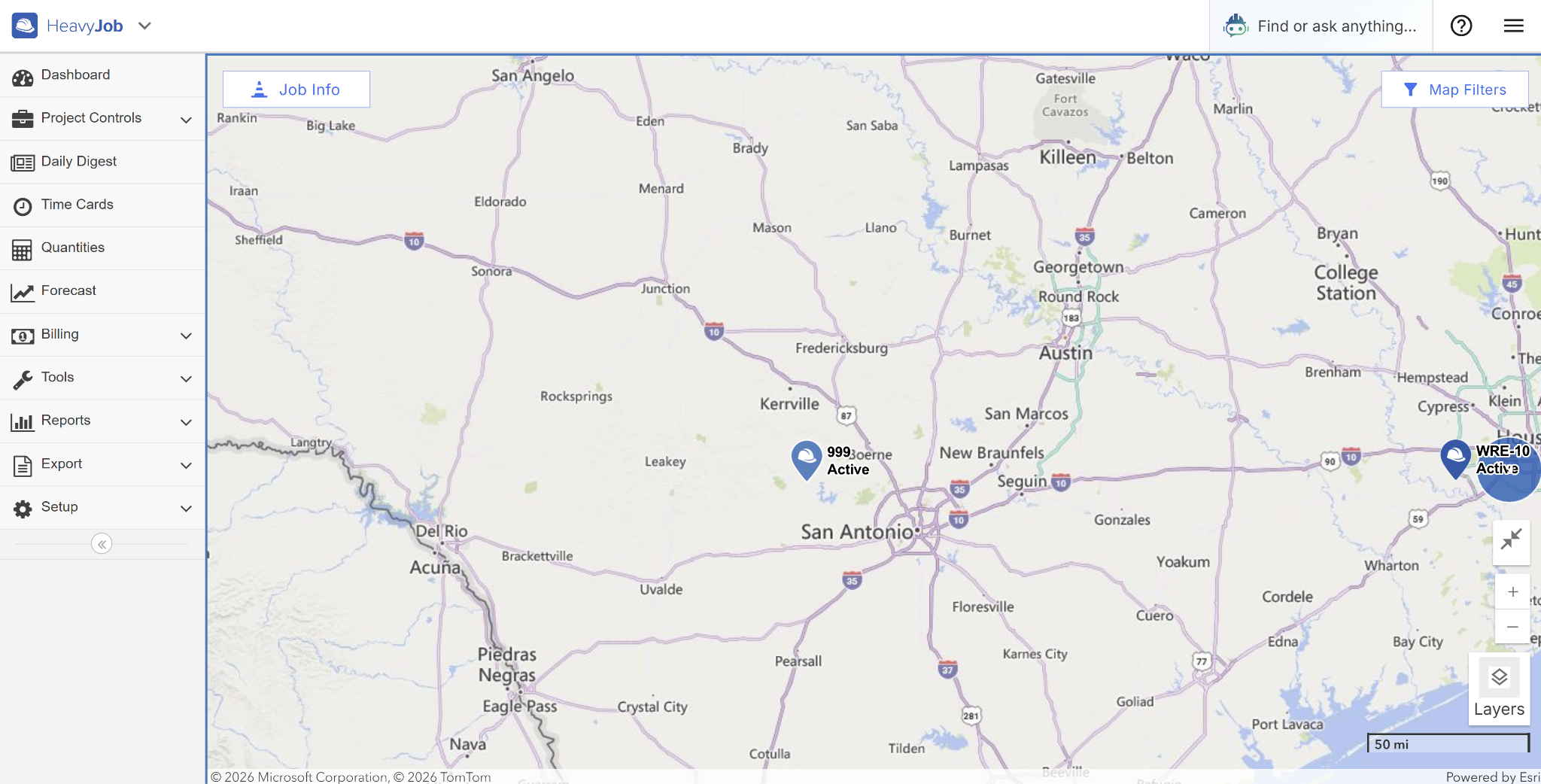

Select the project you want to update.
-

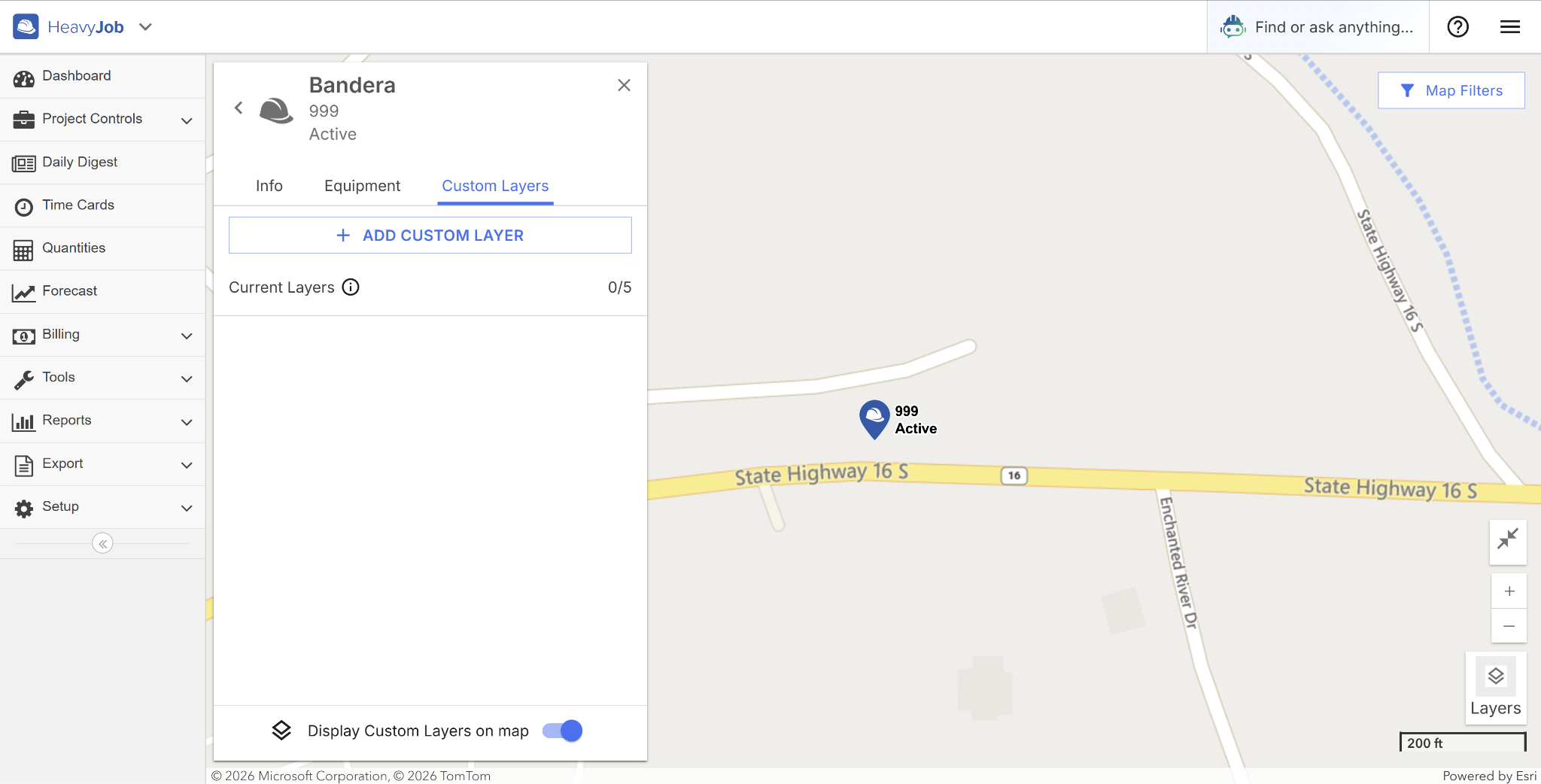

Click Custom Layers, then select + Add Custom Layer.
-

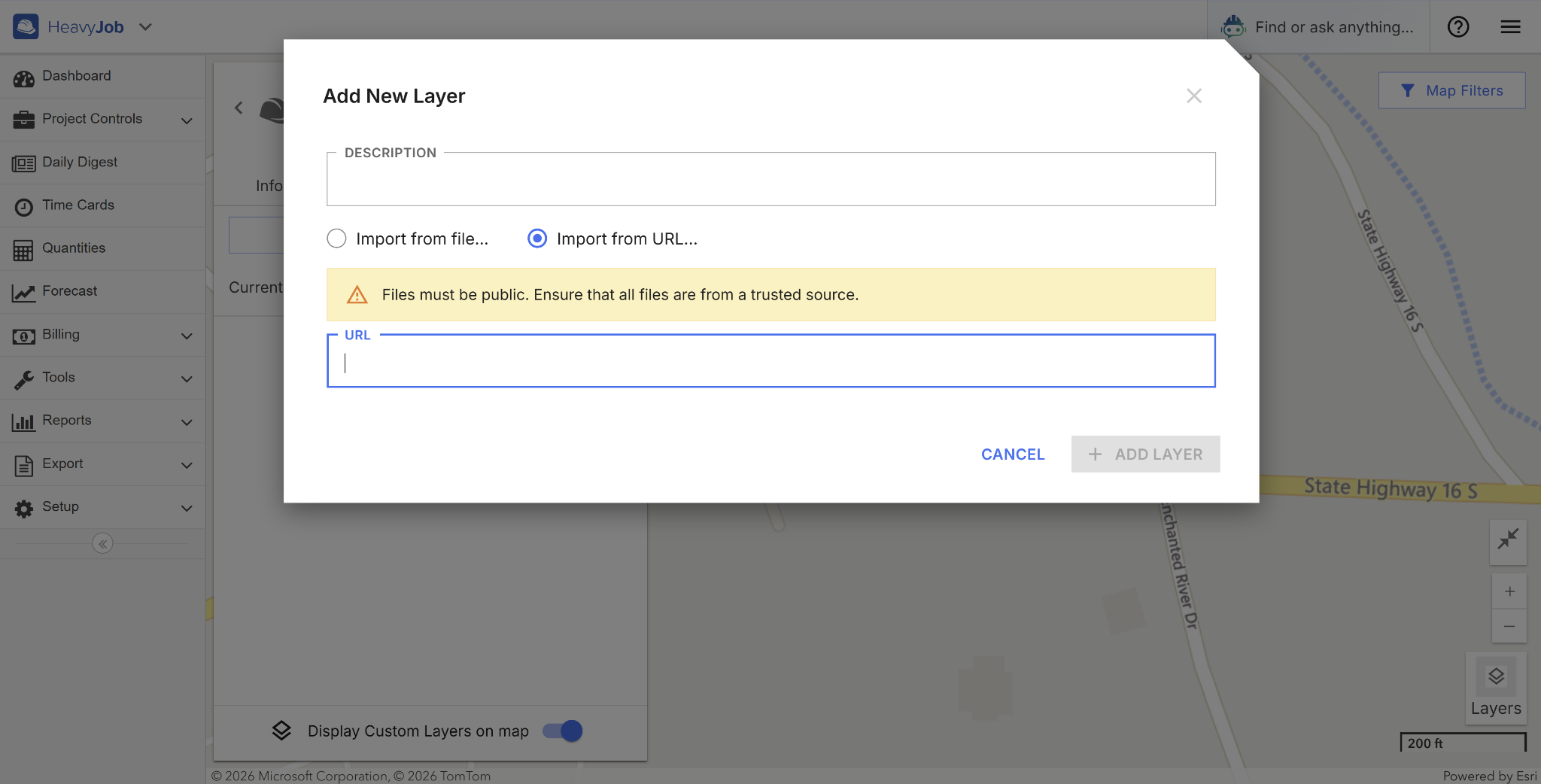

Select Import from URL.
In Propeller:
- In the Propeller platform, go to Settings, then click WMTS and API.
-

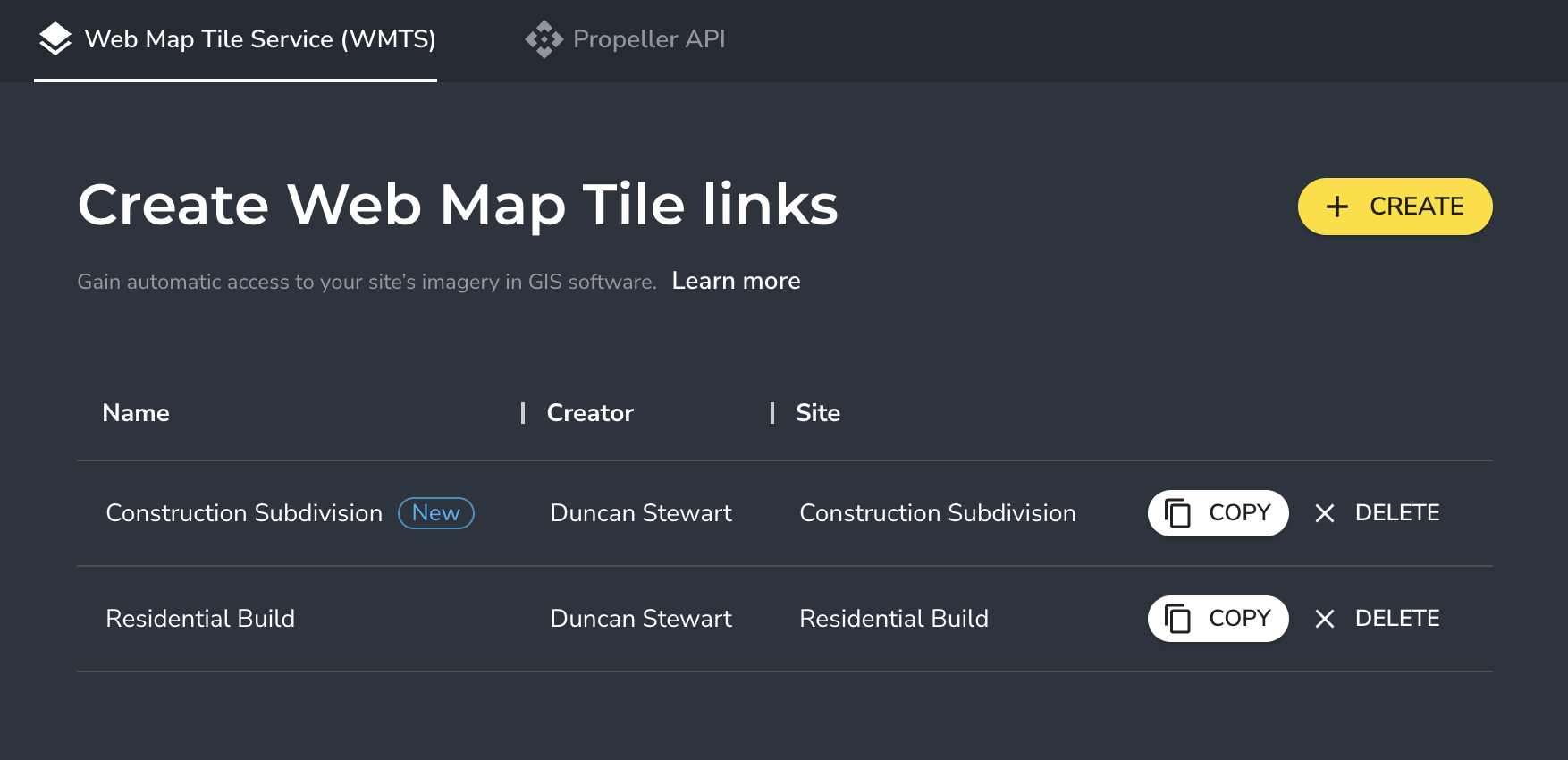

Click + Create.
-

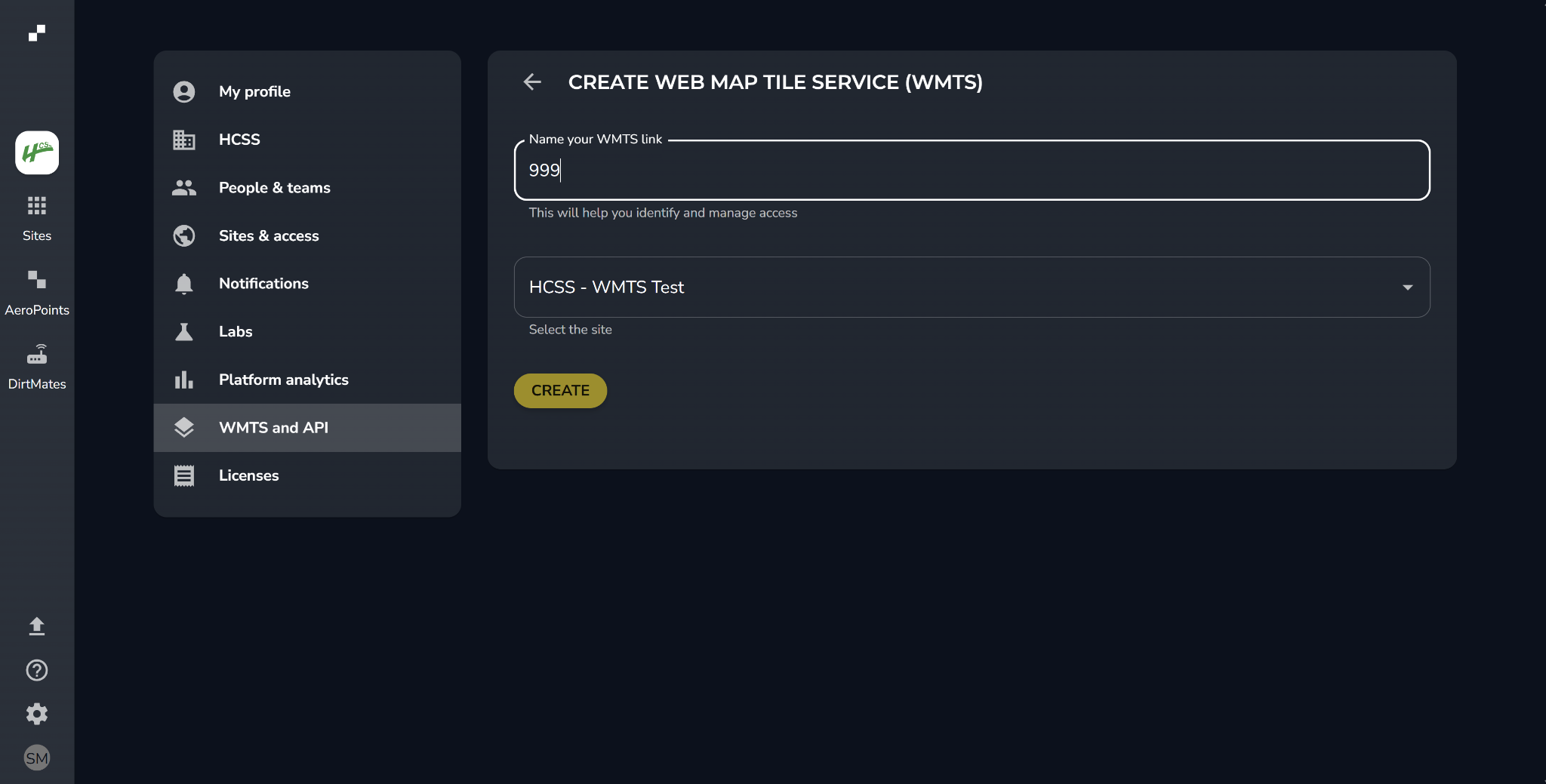

Give the connection a name, then select the Propeller job that matches your HCSS project.
- Copy the generated WMTS URL.
Back in HCSS HeavyJob:
- Paste the URL into the Import from URL field in HeavyJob.

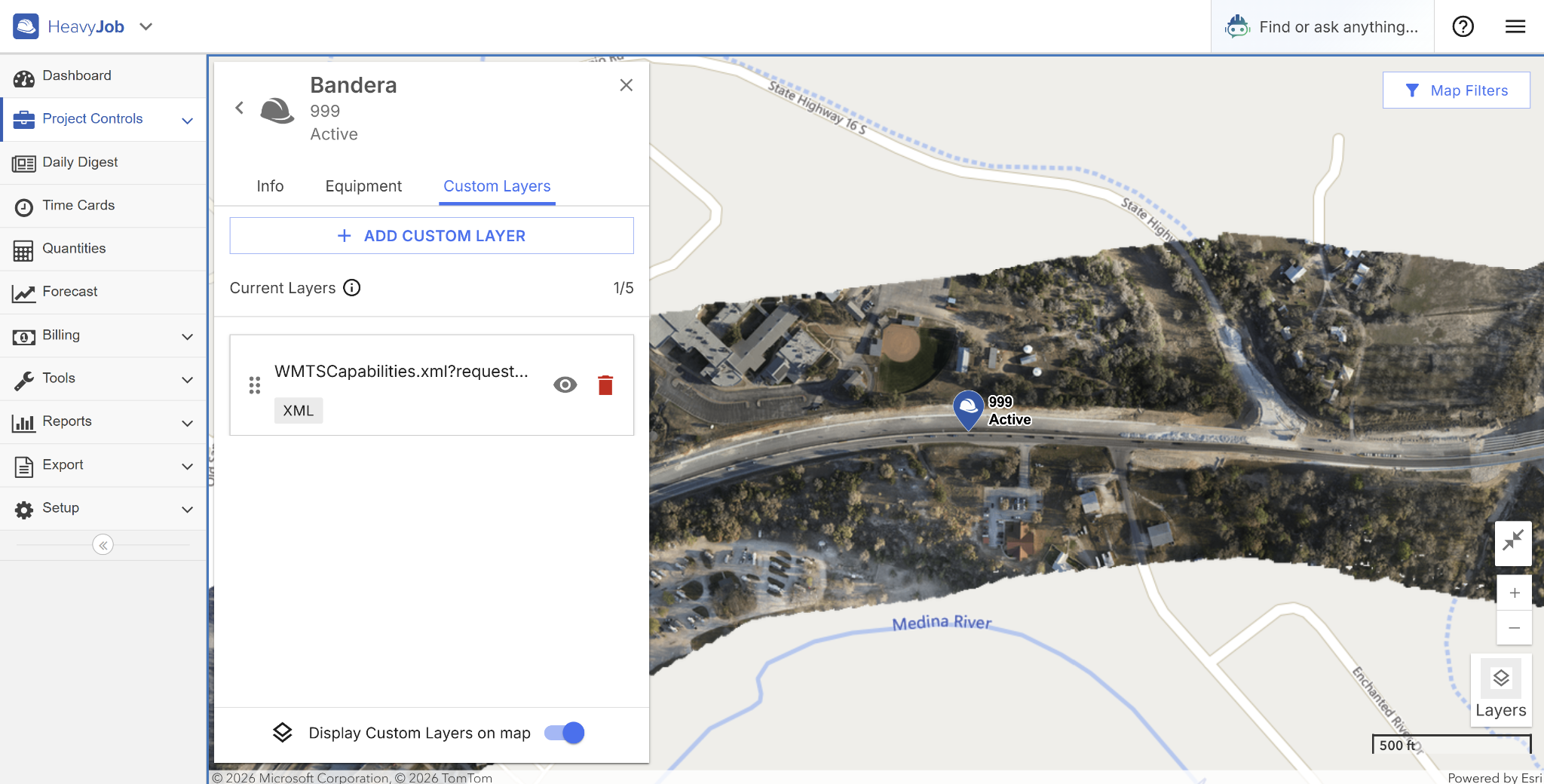

Your HeavyJob map will now display your Propeller orthophoto and update automatically each time a new drone flight is processed.
What's next
Now that your connection is set up, here are some helpful next steps:
- How to use WMTS in Propeller: Learn more about how WMTS works in Propeller, including how to manage and share your WMTS links.
Still need a hand?
These articles are written to get you where you need to go, but if you can't find what you're looking for, our support team is here to help. Reach out anytime via the question mark in the bottom left of your portal.
