Setting Up a Local Site Calibration From a Topcon .gc3 File


If you use Topcon surveying equipment on your site and operate in a local grid system, you should have access to a Topcon control point file (.gc3) from your rover or software suite.

This file type can be opened with Topcon's 3D office software. It must contain the calibration parameters that describe the project's projection and the horizontal/vertical adjustments to set up your site for local grid processing.

The local site calibration setup must be completed before data or AeroPoints are submitted for processing.

Creating a new site

To start, create a new site in your portal to upload your .gc3 file. From the homepage, click on the +NEW SITE button.

Alternatively, you can create a new site within the DATA PROCESSING tab in the top toolbar.

Click DATA PROCESSING and choose +UPLOAD NEW SURVEY.

Screenshot 2023-05-05 at 2.28.47 PM-yM0.png

From the dropdown menu, select CREATE A NEW SITE.

Proceed through the Site setup wizard to create a new site until the Site coordinate System setup step.

Uploading a .gc3 file

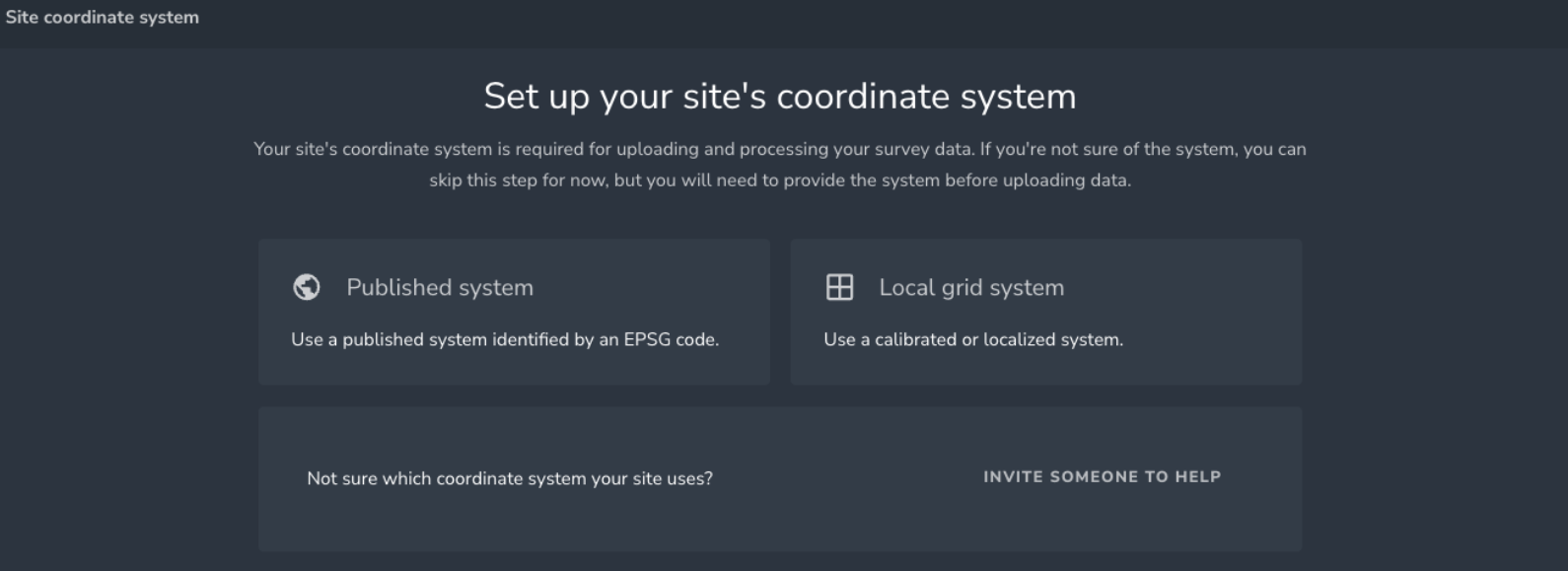

Choose Local grid system, and select your .gc3 file to set up the site coordinate system.

Set up your sites coordinate system Published or Local Grid.png

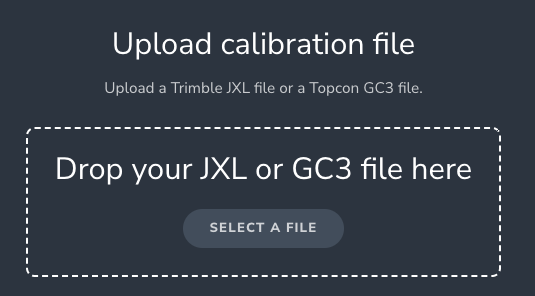

Tip: You can also drag and drop the .gc3 file into the upload box.Upload calibration file JXL or GC3.png

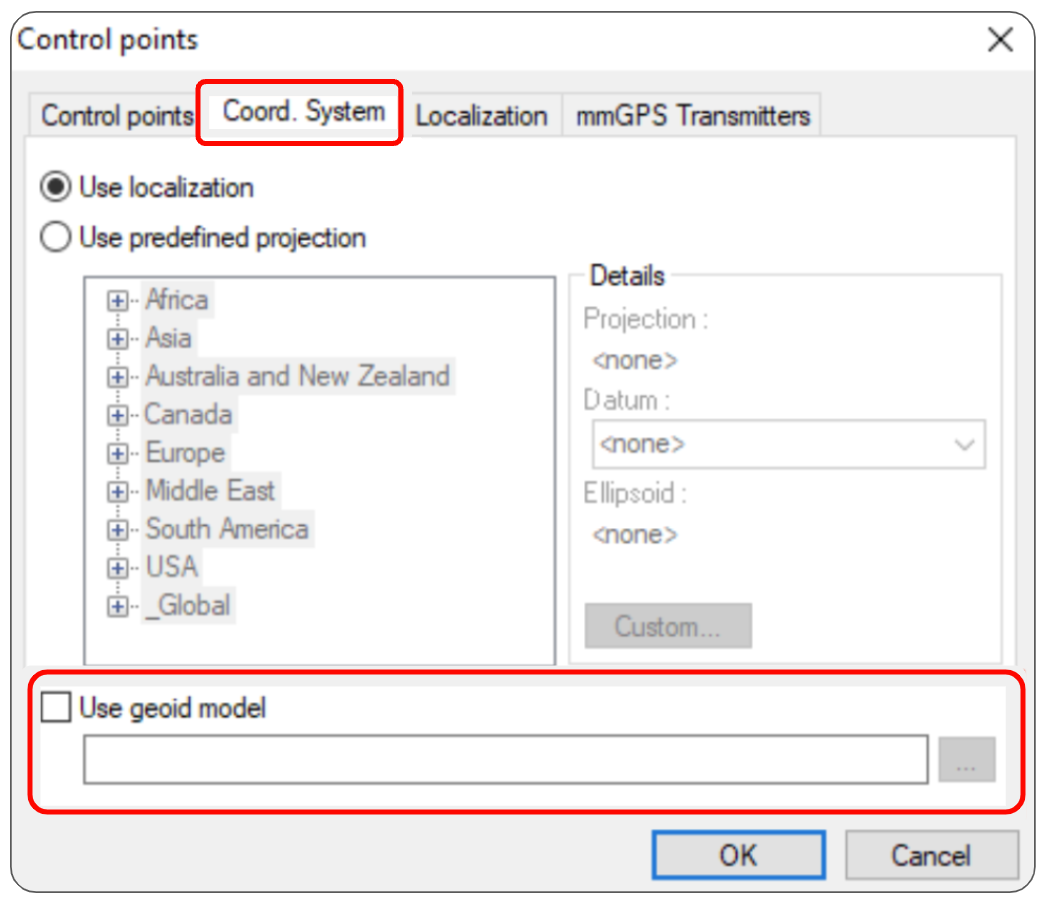

Important: Local site calibrations should not use a geoid.  You can check this by loading your file in 3D Office, going to the Project dropdown, selecting Control points, and checking the bottom of the Coord. System tab.  You can continue if the Use geoid model box is unchecked and blank.  If this is not blank, and a geoid is being used, please discontinue this workflow and contact Propeller Support.

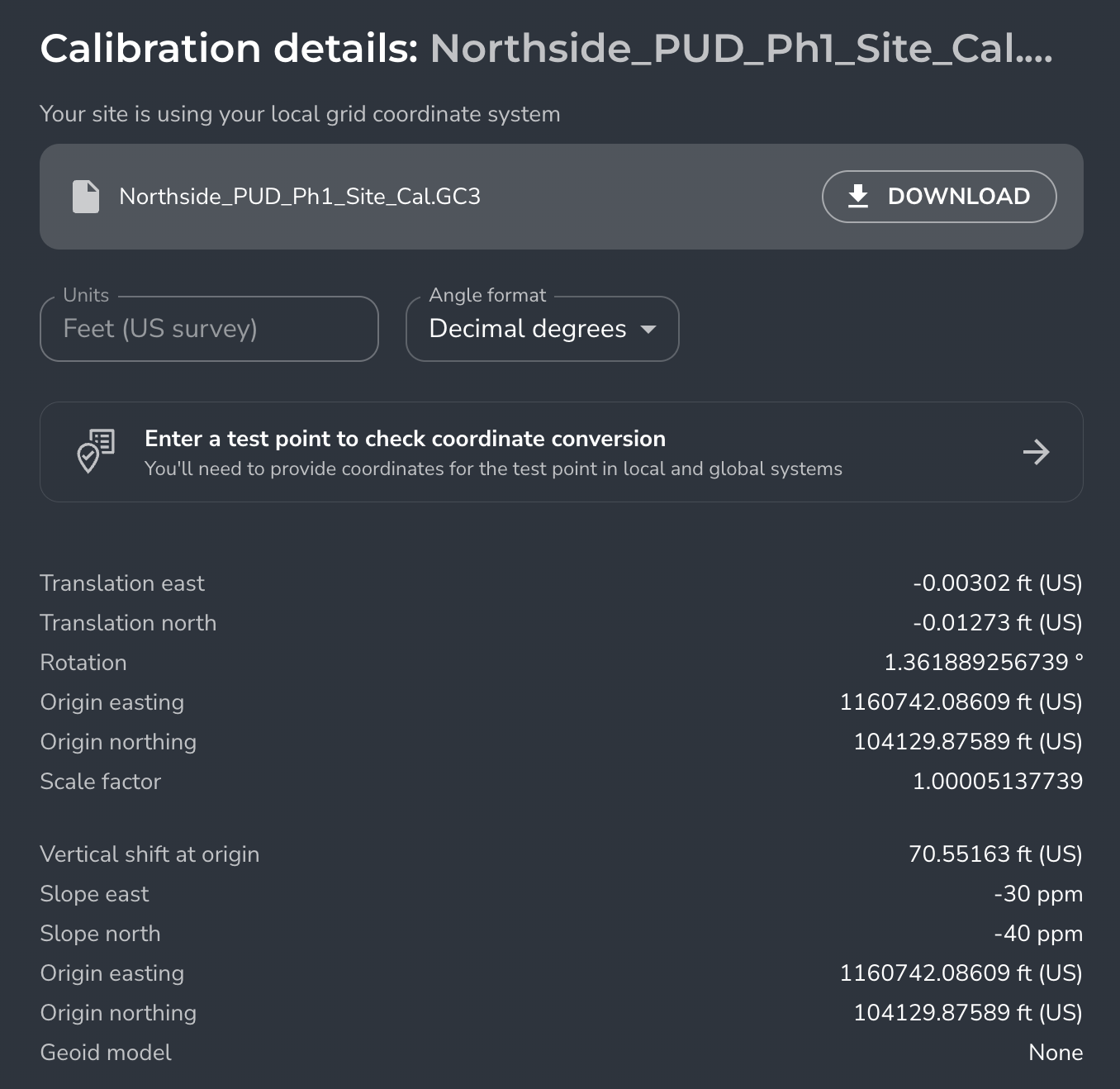

Once the file has been uploaded into the system, you can view the calibration file and enter a test point (optional).

The default unit is based on the Location set before the Coordinate System section. It can be changed by clicking on Local system unit dropdown list.

After you have verified the information, click NEXT.

Note: If your calibration uses a geoid, the global height coordinate will not be correct. Please discontinue and contact support.
