Process AeroPoint Data With the Propeller Corrections Network


The Propeller Corrections Network (PCN) integrates base stations from all over the world. It takes the hard work out of sourcing and uploading a RINEX file to correct your AeroPoint survey with satellite observations from a nearby base station.

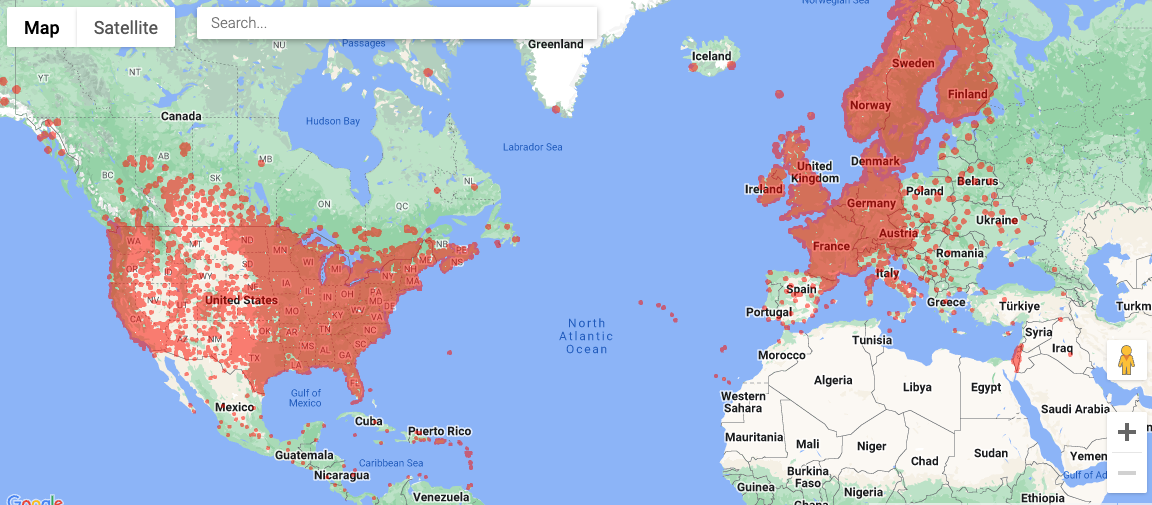

You can check if your surveying site is within the Propeller Corrections Network by checking the coverage map.

When processing data using the Propeller Corrections Network, Propeller looks for a base station close to your AeroPoint survey and downloads an appropriate RINEX file covering the duration of your survey. It automatically applies corrections using that RINEX file and the base station coordinate reference system, taking the hard work out of correcting your AeroPoints data.

Because the Propeller Corrections Network needs a base station close to your survey, you can only use this method reliably if your survey is within approximately 25 mi (40 km) of a station in the network. Outside this radius, variations in the atmosphere between the base station and the AeroPoint survey cause the corrections to become unreliable, and the accuracy of your survey may be reduced.



This corrections method requires approximately 24 hours to complete, while the Propeller Corrections Network polls the base station for data.

Accuracy

Global accuracy:  the best available, 20mm/20mm/50mm
Consistency:  the best available, 20mm/20mm/50mm
Internal accuracy:  10mm or less — precise internal reconstruction

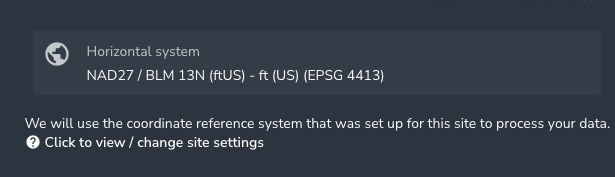

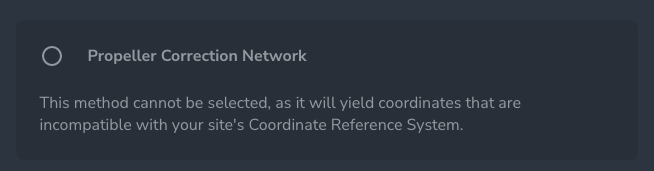

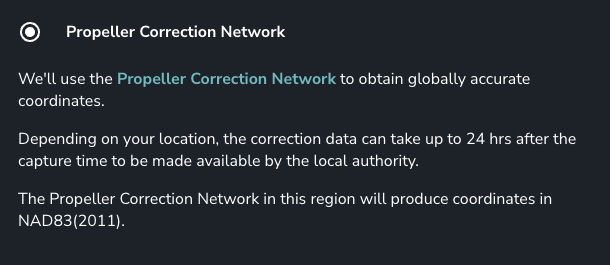

The Propeller Corrections Network in the US produces coordinates in NAD83(2011.) The PCN will be unavailable if a site is set up in a Coordinate Reference System based on a different datum.

Processing times expectations


While the Propeller Corrections Network is the easiest option, it is sometimes not the fastest. It often takes just a few minutes to complete. However, depending on corrections data release schedules and potential outages of base stations, it can take up to 24 hours.

If it's been longer than 24 hours and your AeroPoints are still being processed, our team of specialists is notified and will start looking into the specific survey.


I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, the Propeller data success team may be able to help. You can contact our support team by clicking the support tab on the top-right pane of your user portal.
