How to Process AeroPoint Data with the RINEX Upload Method


The RINEX file upload method uses satellite observations from a rover or base station to correct AeroPoint observations, for example, for variations in models of the atmospheric conditions at the time of measurement.

General requirements

To process AeroPoint data using a RINEX file, you need a RINEX file with the following properties:

  • The file must be RINEX v3.

  • The RINEX sampling interval must be less than 10s.

  • The RINEX file must cover the entire duration of the AeroPoint survey, from the moment the first AeroPoint was turned on to the moment the last AeroPoint was turned off.

  • The survey duration is given as GPS or UTC time when you select the RINEX upload option. Make sure your file covers the time period of the AeroPoint survey using the correct timezone.

  • You must know the coordinate reference system of the measurements in the RINEX file.

Uploading RINEX files from multiple days

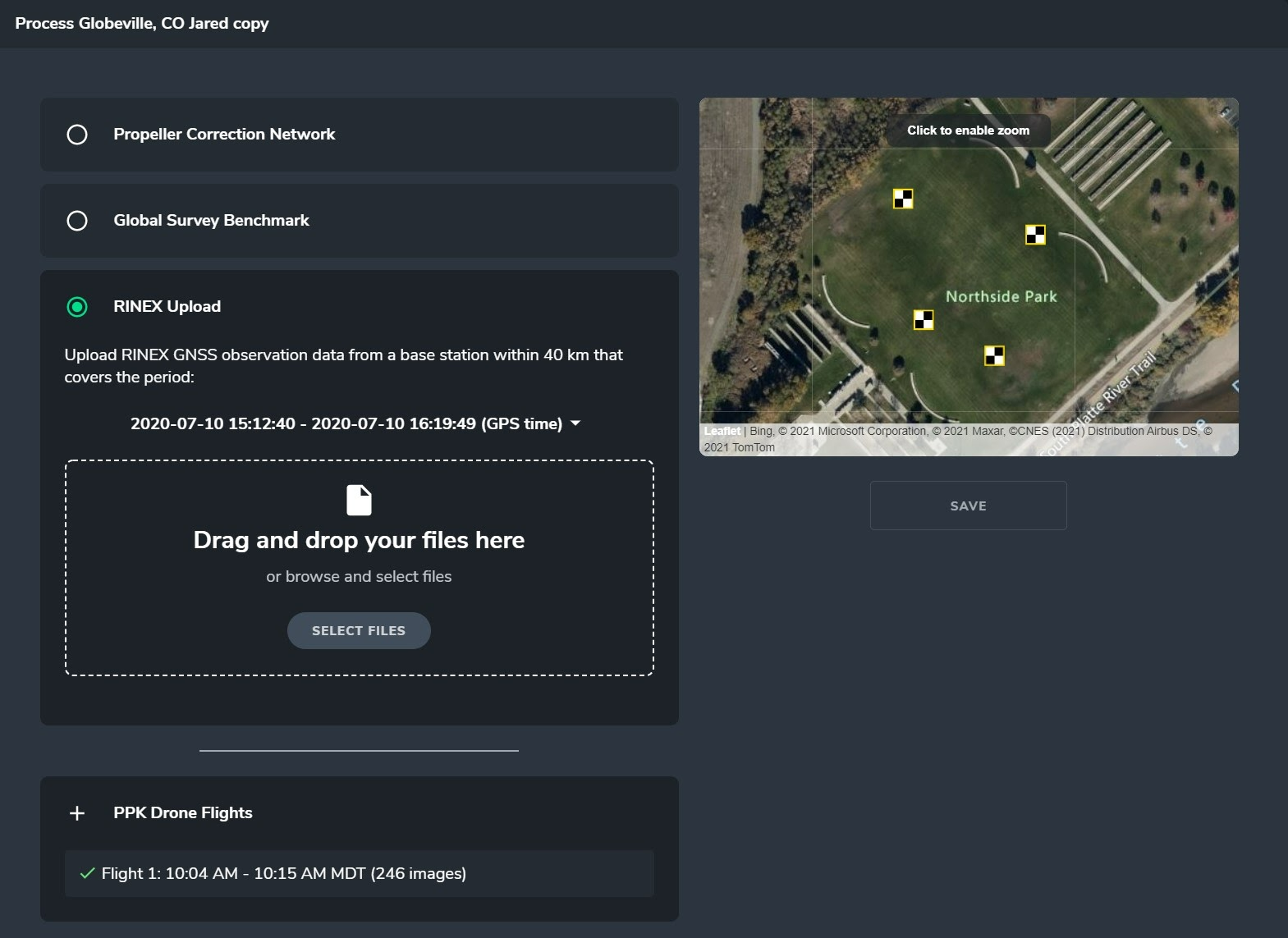

If you have two RINEX files covering the survey period, for example, if your survey extends across two different days in GPS time, you can drag and drop multiple RINEX files during the upload process.



Accuracy

Global accuracy: the best available, 20mm/20mm/50mm.
Consistency: the best available, 20mm/20mm/50mm.
Internal accuracy: 10mm or less — precise internal reconstruction.

I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, the Propeller data success team may be able to help. You can contact our support team by clicking the support tab on the top-right pane of your user portal.
