Working with Trimble TTM Surface Files


Uploading Trimble TTM files to your site can help you visualize the TTM surface in relation to the terrain. You can also create surface-to-design volume measurements between the TTM surface and the drone survey and export an area of your site as a TTM surface.

Upload a TTM file to your site

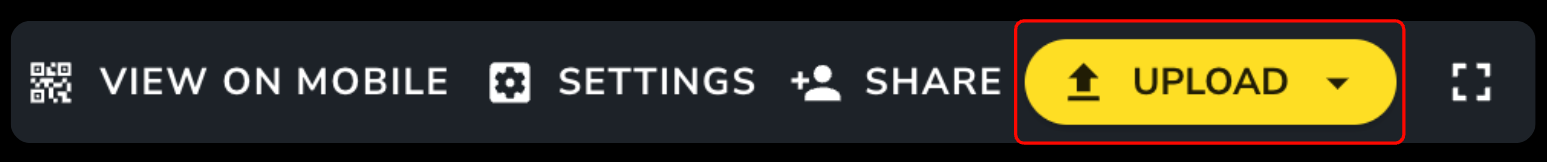

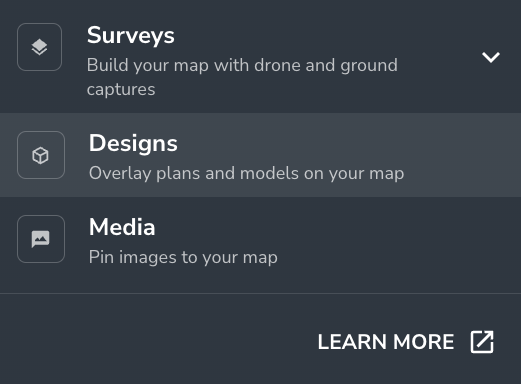

From the DESIGNS tab, click UPLOAD DESIGN.

Designs Import a Design.png

Drag and drop or navigate and select the TTM file you want to upload.


Import a Design Drag and Drop Files.png

Once imported, you can toggle the file on and off from the DESIGNS tab.

Visualize a TTM surface files

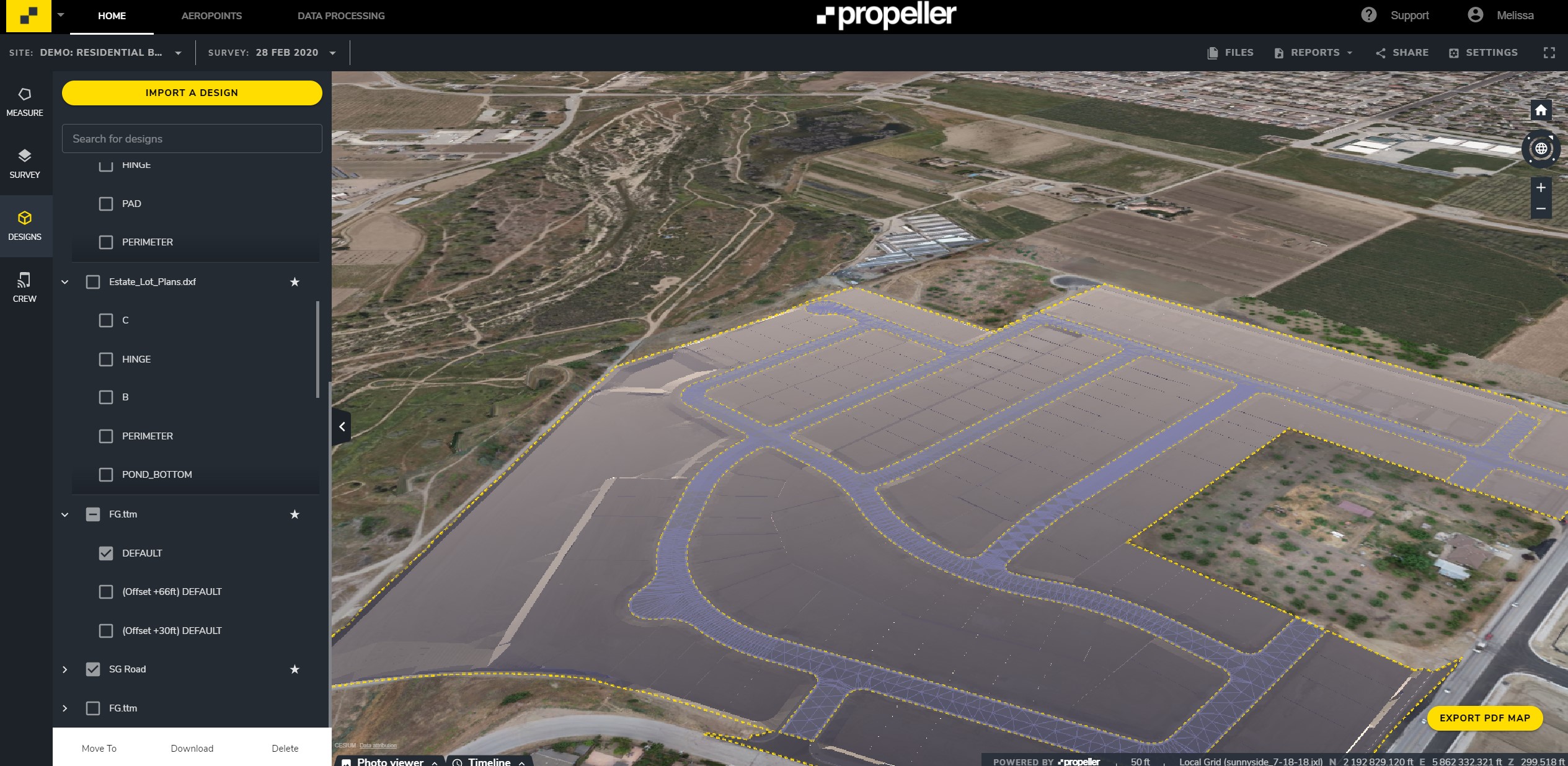

Once imported, view the TTM surface in 3D in relation to the survey.

Measure volumes against TTM surfaces

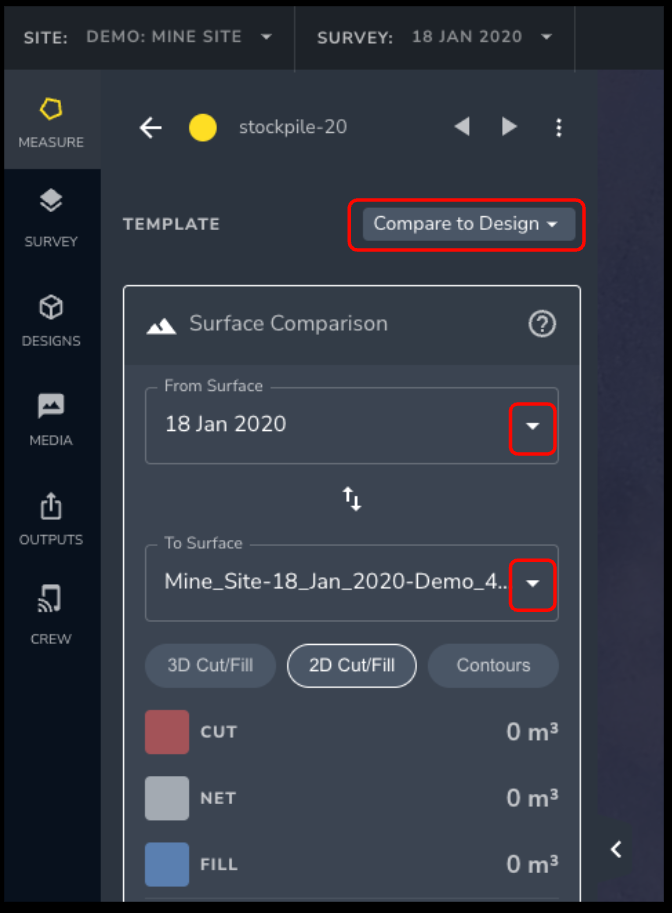

Use the compare to design measurement tool to calculate the volume between your latest survey data and the design surface.

Export a measurement as TTM

Areas of a site can be exported as a TTM surface:

  • Outline the area to be exported using the polygon tool.

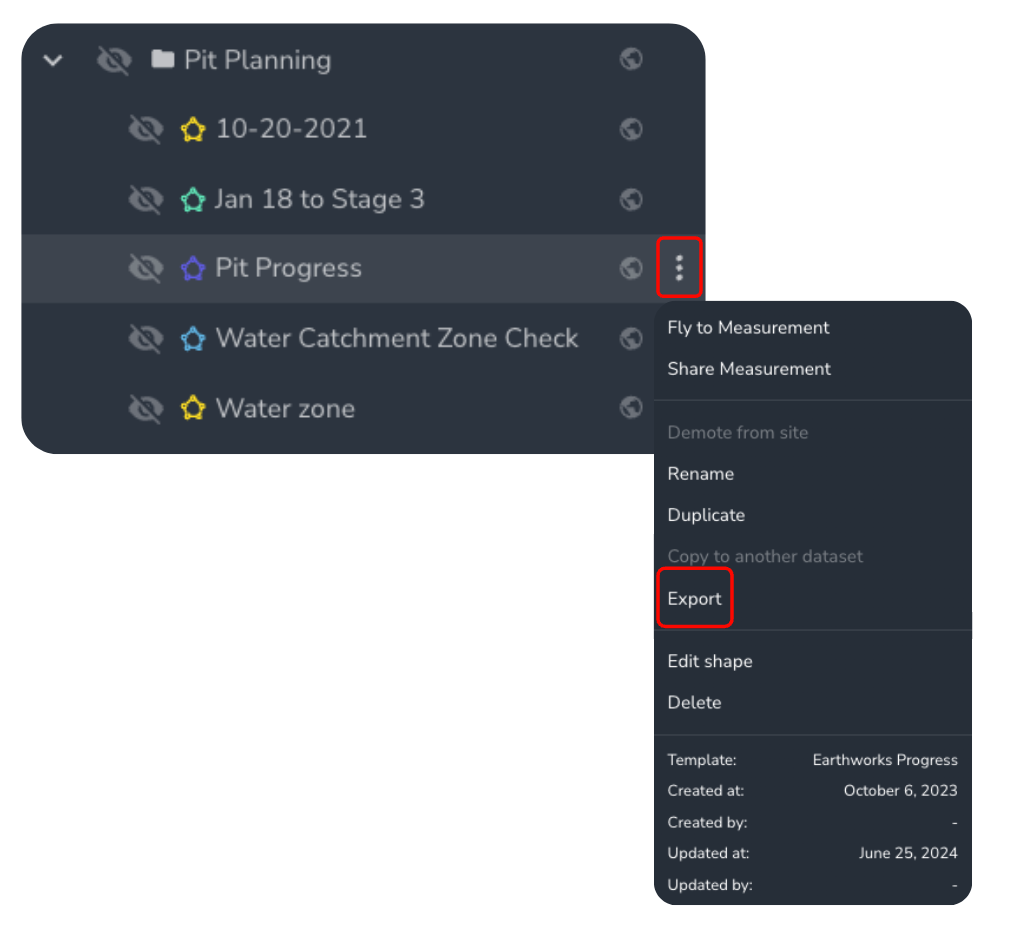

  • From the measurement options, select ExportTTM.

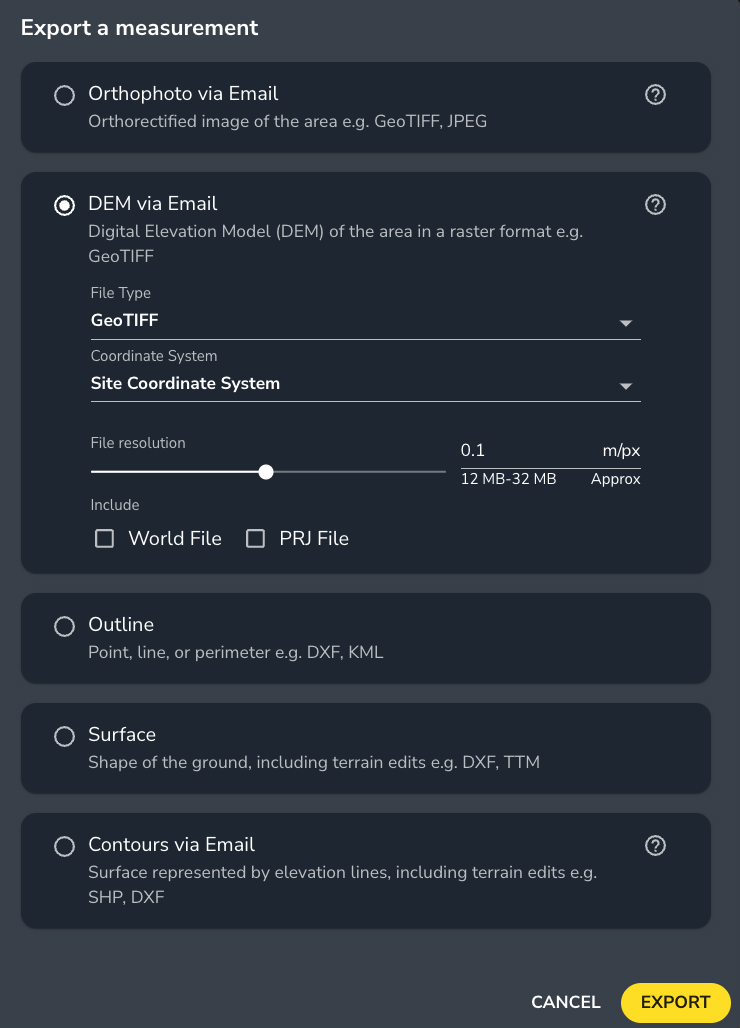

Export a Measurement.png

Export a Measurement.png

Learn more about custom exports.
