Alignments are used in construction to define the path of a linear project or linear features within a project. When used with their respective stations (sometimes called chainages) and offsets, locations can be more simply referenced, facilitating communication and collaboration throughout a project.
With alignments in Propeller, you can use familiar and consistent communication to locate, measure, and markup while referencing position in your familiar station and offset language.
| ℹ️ Note: Please note that vertical alignments are currently not supported. |
Getting started
|
💡 Tip: You will need a suitable LandXML file to upload into the Platform to get started. If you don't have one, you can do one of the following:
|
Alignments are available to use on your desktop and the Propeller mobile app.
How to upload LandXML files
Desktop
| 💡 Tip: Alignments in LandXML files have several geometries (line, curve, spirals). We currently support the clothoid spiral type. |
| ℹ️ Note: Propeller does not apply station equations from LandXML files. If your alignment includes them, the stationing continues in sequence instead of jumping to the new station numbers. See How to work with station equations in LandXML files for a workaround. |

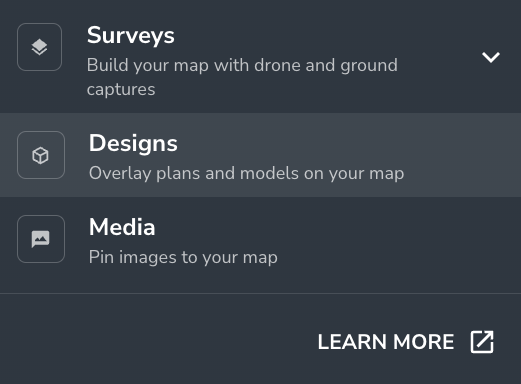

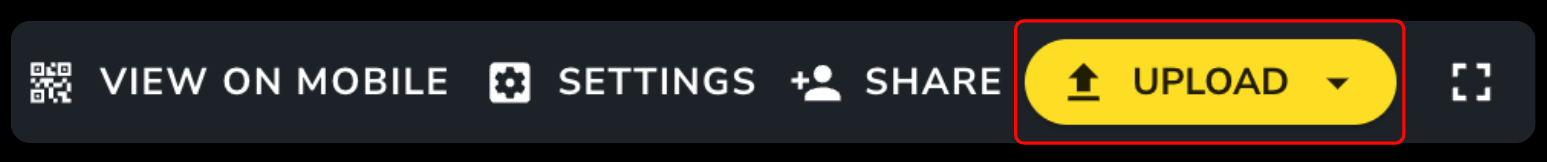

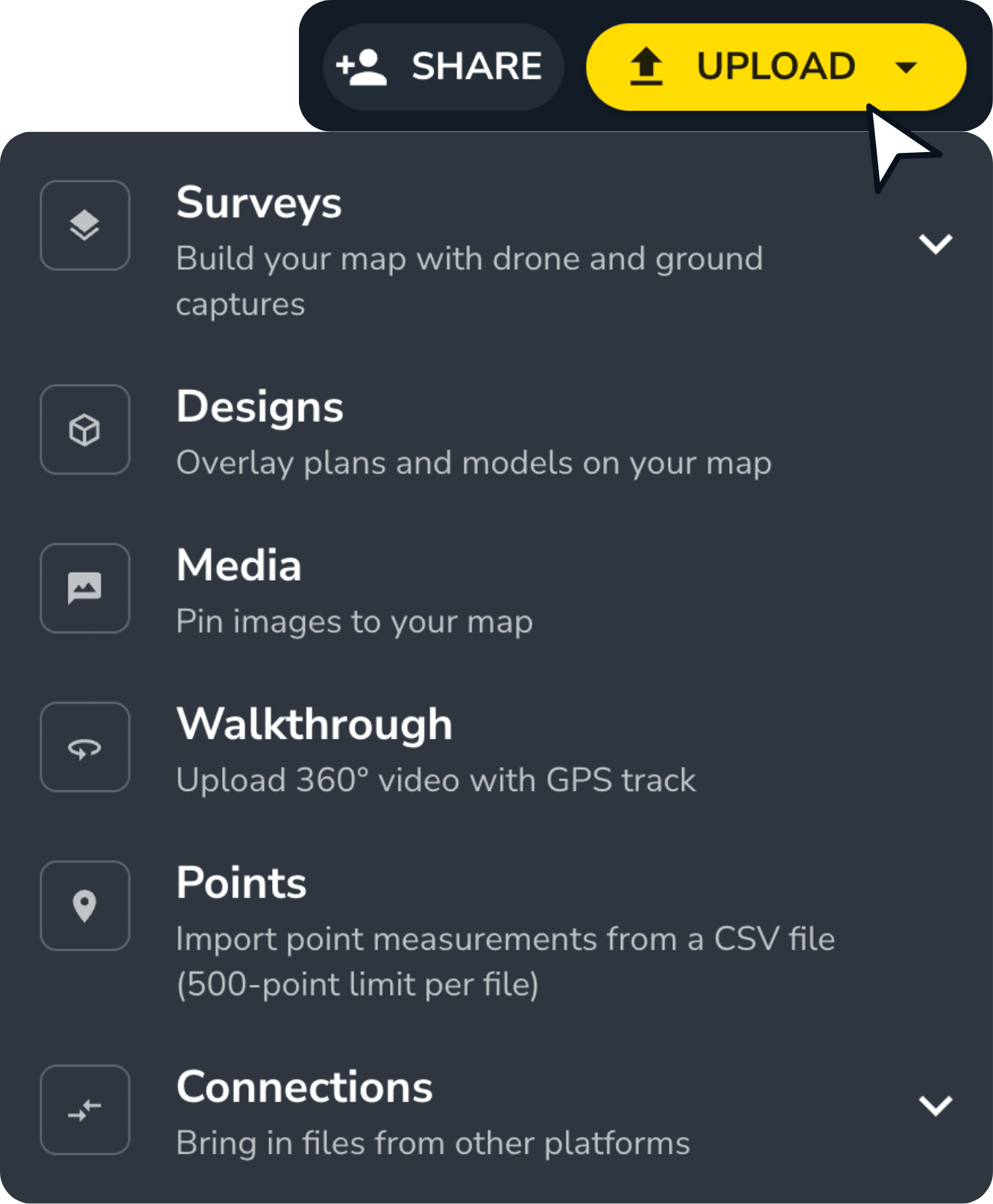

Click on the UPLOAD button and select Designs.

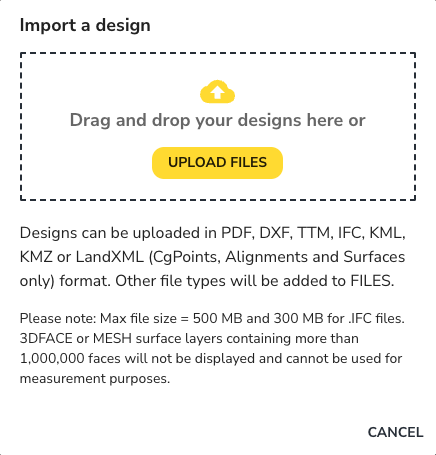

Drag and drop or UPLOAD FILES directly into the platform.

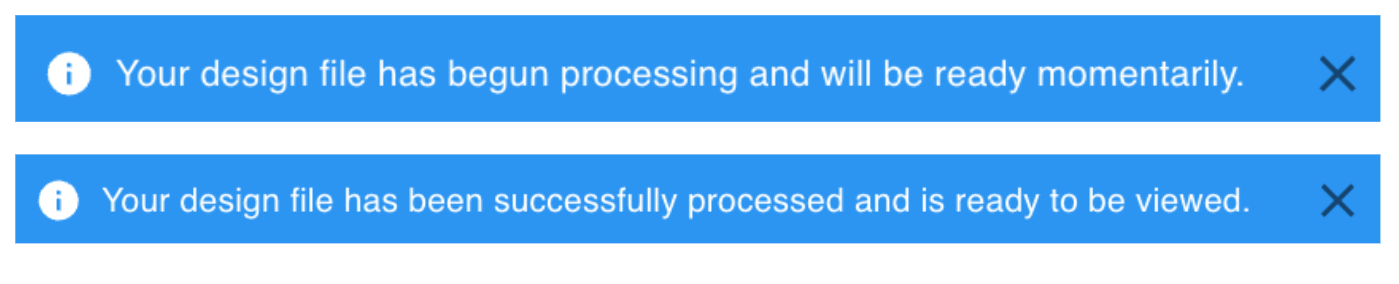

You’ll see a notification that your LandXML file is processing, and you’ll see another one when it’s complete.
Once the file has been correctly imported, you’ll see a unique icon next to it.
Activate or deactivate the alignment on your desktop

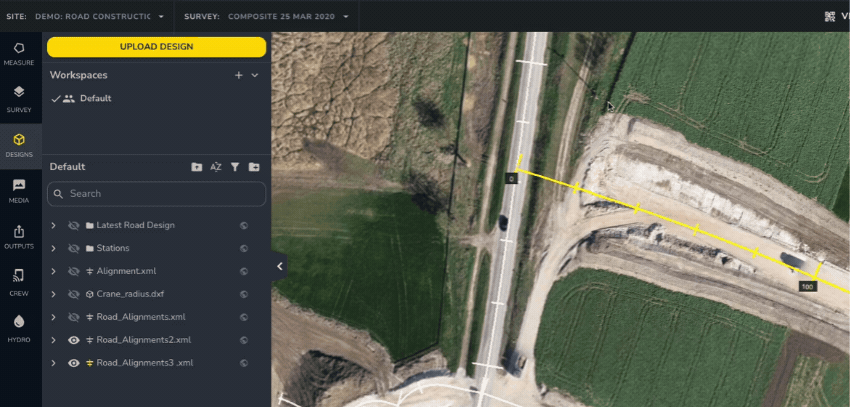

You can access the alignment file in the DESIGNS tab. To visualize the alignment, click the eyeball icon next to the file.

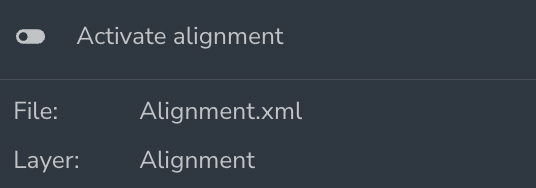

To activate an alignment, simply click on it in the map view or right click on it and toggle on Activate alignment.
| 💡 Tip: Please note that while you can turn on several alignments to view on the map, only one can be active at a time. |

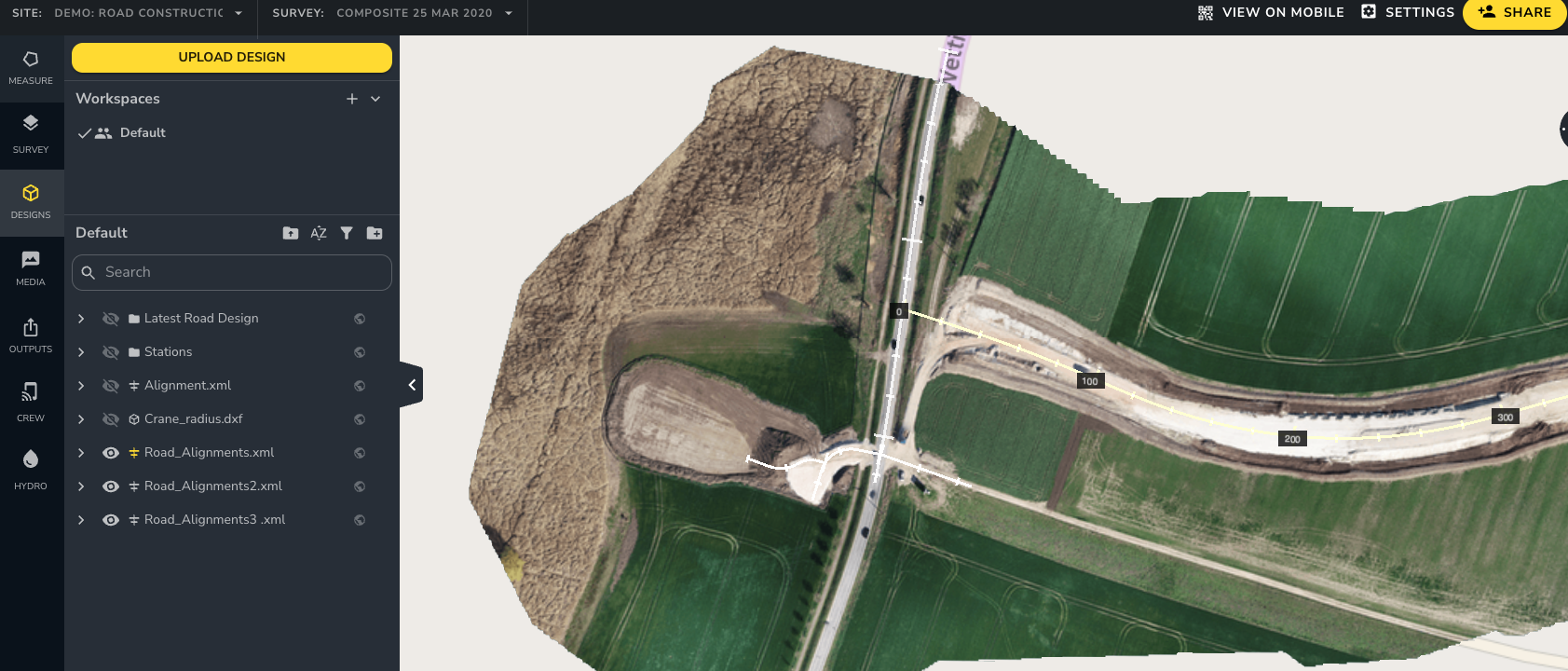

You’ll notice the active alignment will display the labels and turn yellow.
Once activated, you can reference the station and offset position of your cursor relative to that alignment.

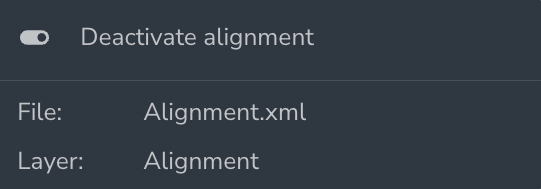

To deactivate an alignment, right click on it and toggle on Deactivate alignment. If you have more than one alignment, you can click on another to deactivate your current selection and activate a new one.
Reference alignment data on media
You can associate an alignment with any media item (photo or 360 image) to record its station and offset position relative to your project centerline.
This is useful when field teams are capturing photos along a corridor and need to document exactly where each image was taken.
To view or set the alignment on a media item:
- Open the media item in the Media tab.

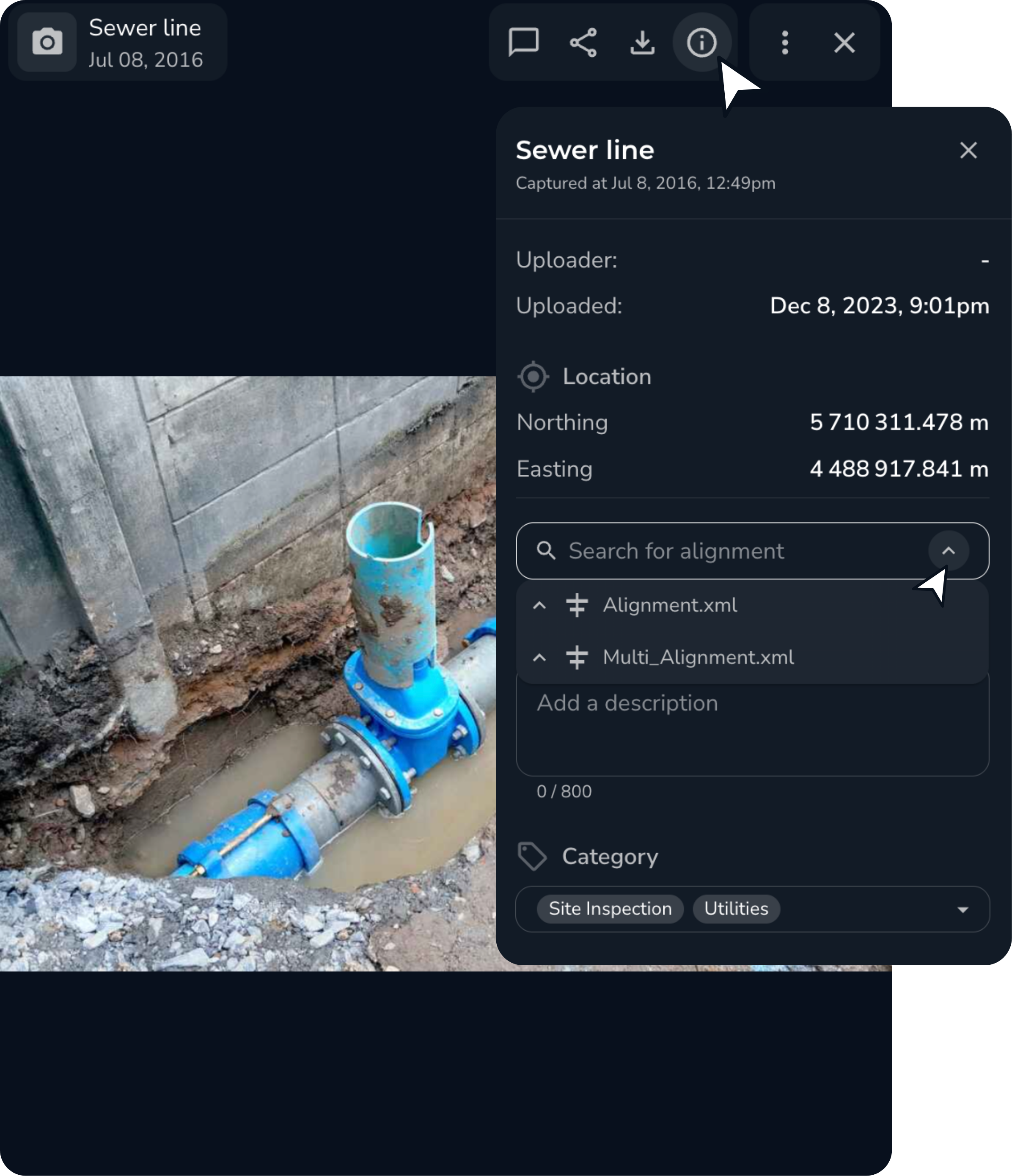

- Click the info icon to open the location panel.
- Select an alignment from the alignment picker. The panel shows the station and offset of the media item relative to that alignment.
You can also select an alignment during upload. For full steps, see How to use Media in Propeller Desktop.
Mobile app

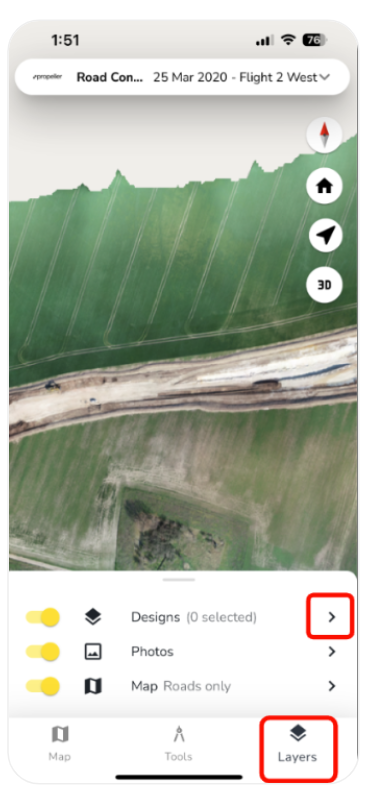

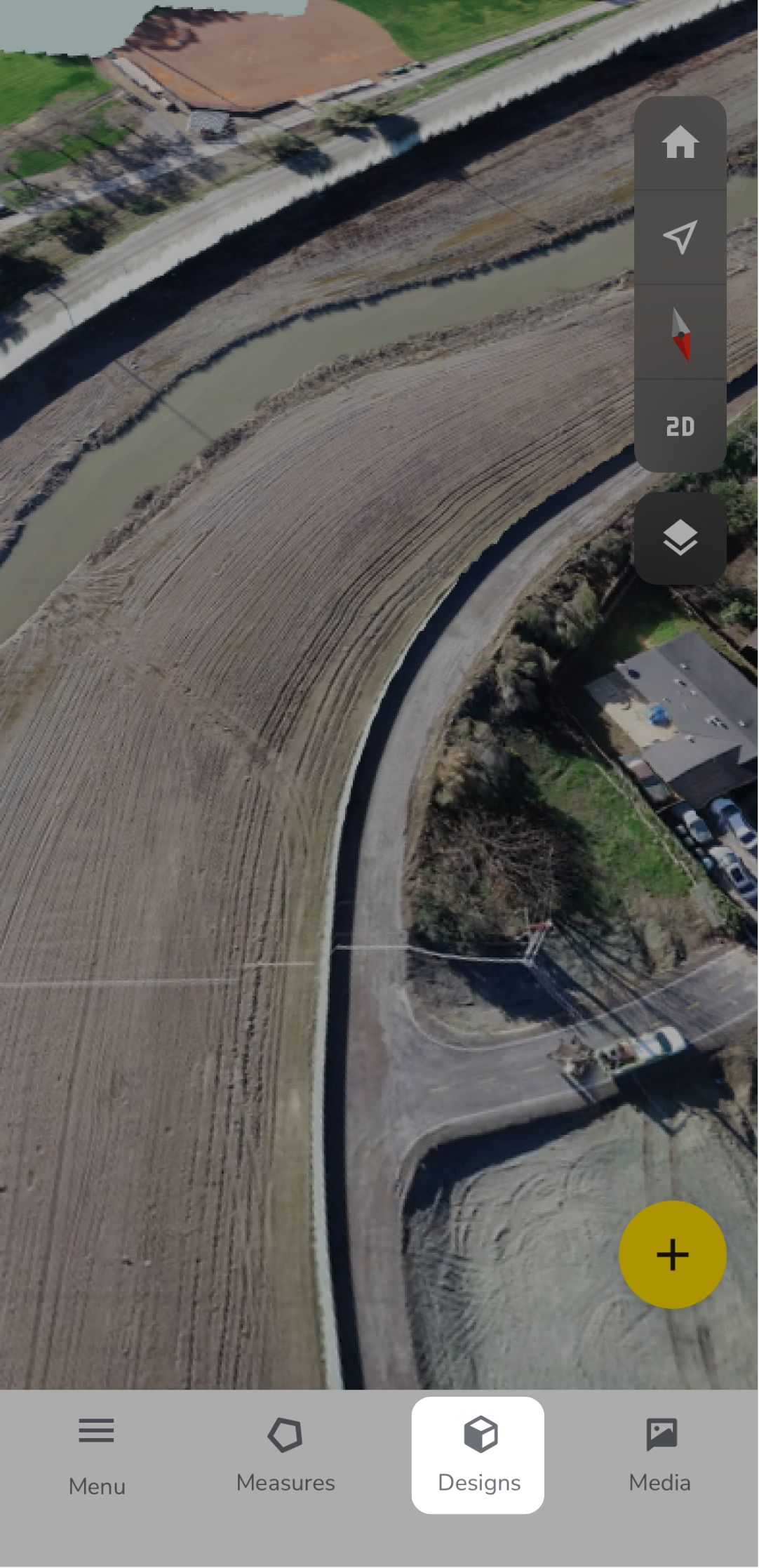

Alignments on the Propeller Mobile app give in-field users the same station and offset reference functionality to locate positions and communicate while on-site. You can access alignment files in the app by navigating to the Designs tab.
View Alignment

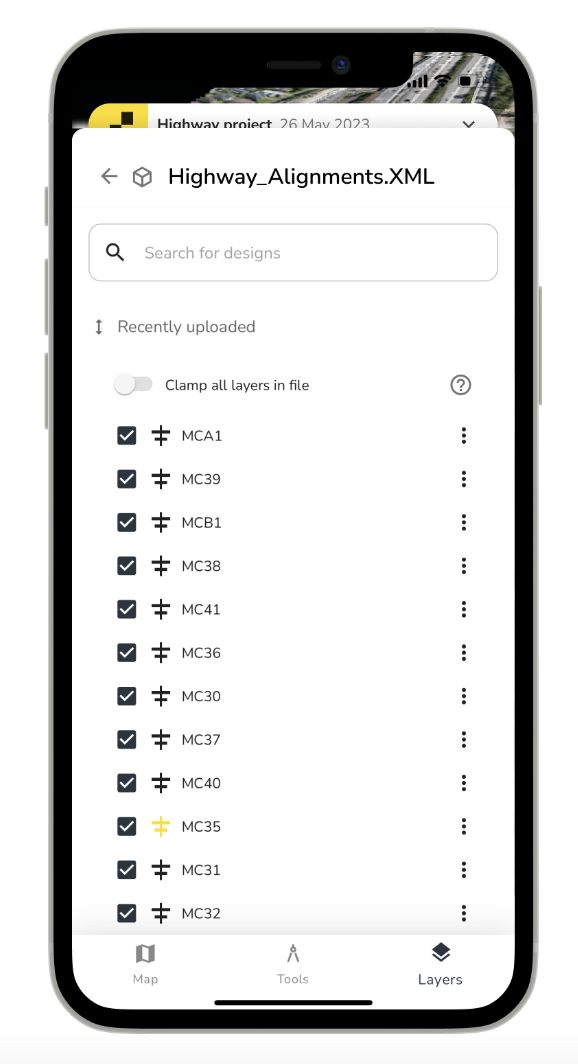

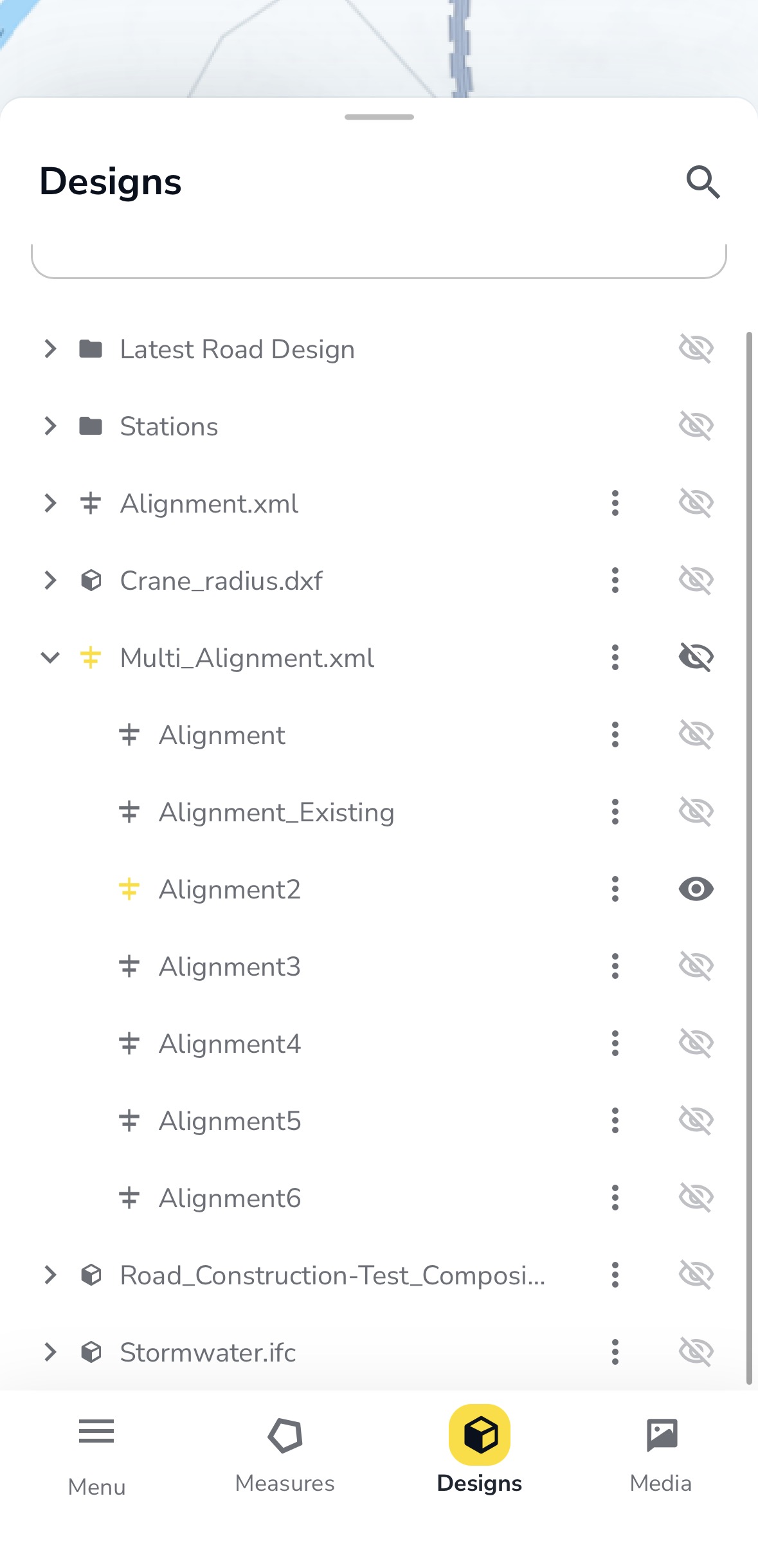

Toggle on the alignment by clicking the eye icon next to it.
Activate alignment
Like the desktop version, the alignment icon will be yellow once activated.
To activate the alignment, move the crosshairs on the map over the one you want to activate.

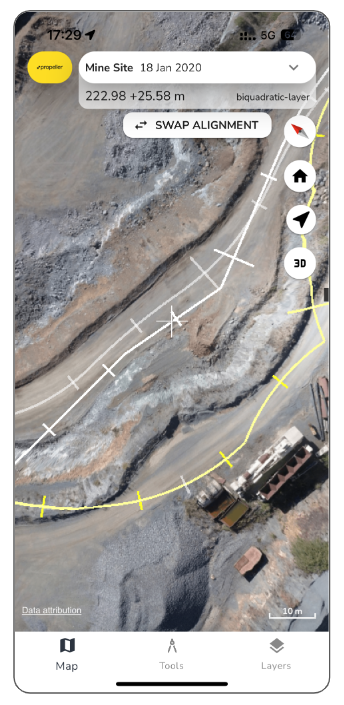

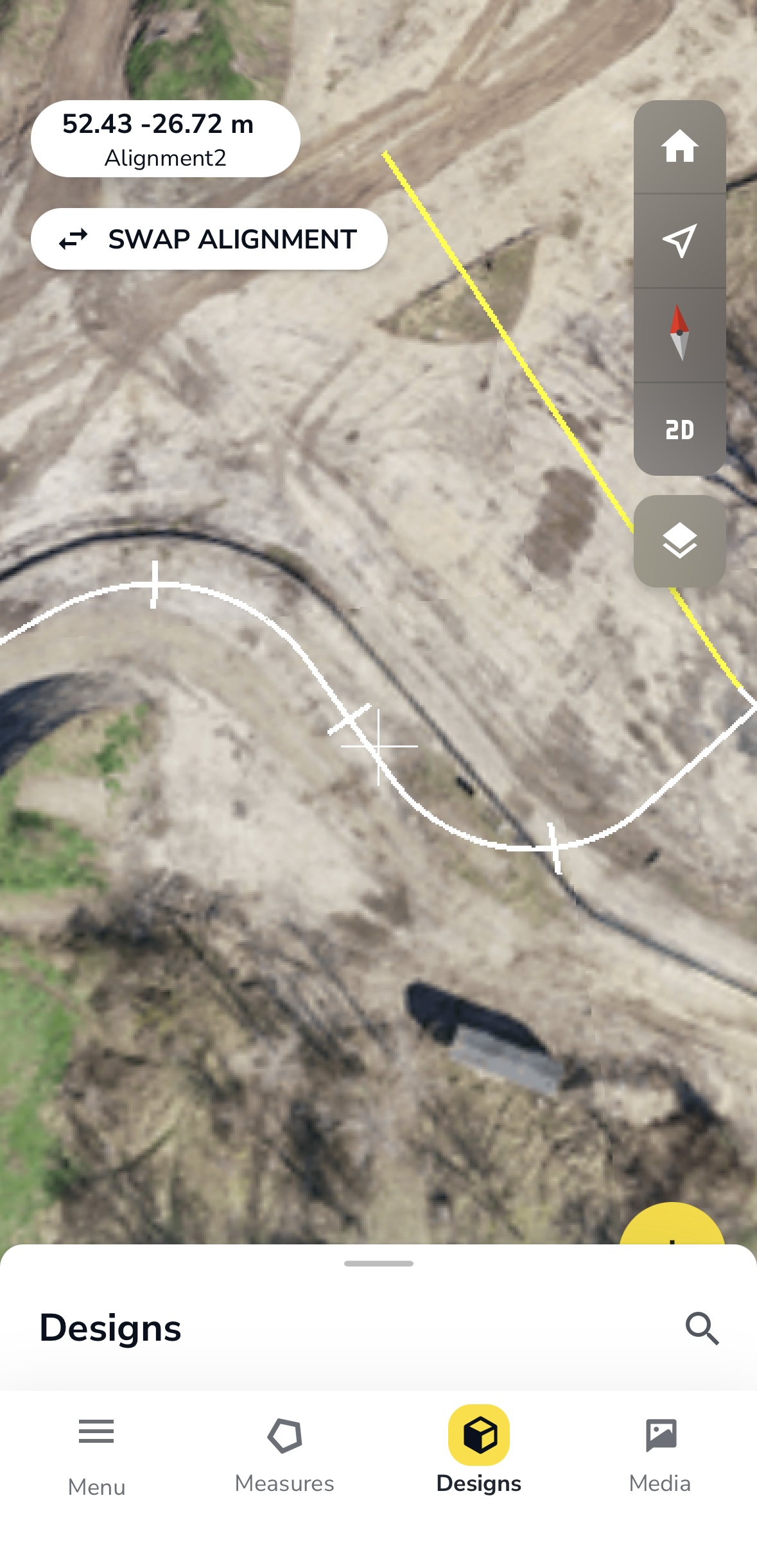

If you want to activate a different alignment, use the crosshair to move over the desired alignment and tap SWAP ALIGNMENT. This will turn off the one currently active.

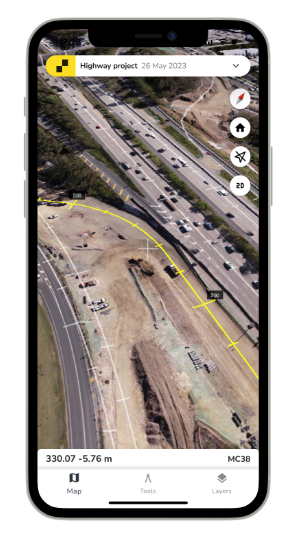

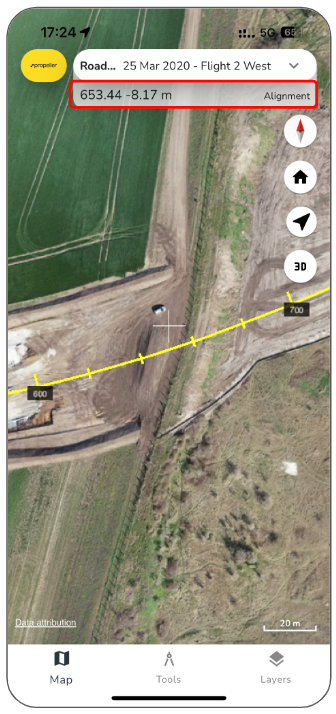

Use Tools with alignments to help you identify areas of interest on your site. As you pan around the map, you'll notice the alignment and offset update.
How to work with station equations in LandXML files
A station equation is a point where the stationing numbers change partway along a single alignment. For example, the stationing might run from 0 to 200, then pick up again at 500. Station equations are common on long corridor projects, especially when several alignments are merged into one.
| ℹ️ Note: Propeller does not apply station equations when you upload a LandXML file. Instead of picking up at 500 in the example, the stationing keeps counting up from where the previous section ended. Station values after the equation point will differ from your design documents. This affects station labels on the map, station and offset readouts, bulk cross sections, and the station shown in the mobile app. |
To keep the stationing correct, split the alignment at each station equation and upload each section as its own alignment:
- In your design software, find each point where a station equation changes the stationing.
- Split the alignment at each of those points so every section has one continuous range of stationing. For each section, check two values in the exported file. The start station: the first section keeps the alignment's original start station, and every later section must start at the value that applies after its equation (500 in the example above), not at 0 or at the running distance. The length: it must be that section's own length, not the length of the original full alignment. Propeller reads both from the file, and you can't change them after upload.
- Export each section as its own LandXML file. If you export several sections in one file instead, give each alignment a unique name. Sections that share a name are imported as a single alignment.
- In Propeller, click UPLOAD and select Designs.
- Drag and drop the file for each section into the upload window, or select Click to add to browse for it.
- Open the DESIGNS tab and activate the section you want to work with. Only one alignment can be active at a time.
| 💡 Tip: Include the station range in each file name and alignment name, for example, Corridor A 0 to 200, so you can tell the sections apart in the DESIGNS tab. |
Point measurements
Use a point tool to reference an alignment to view the station and offset at that point.
Select Custom Point from the measurement dropdown menu to create a new point.

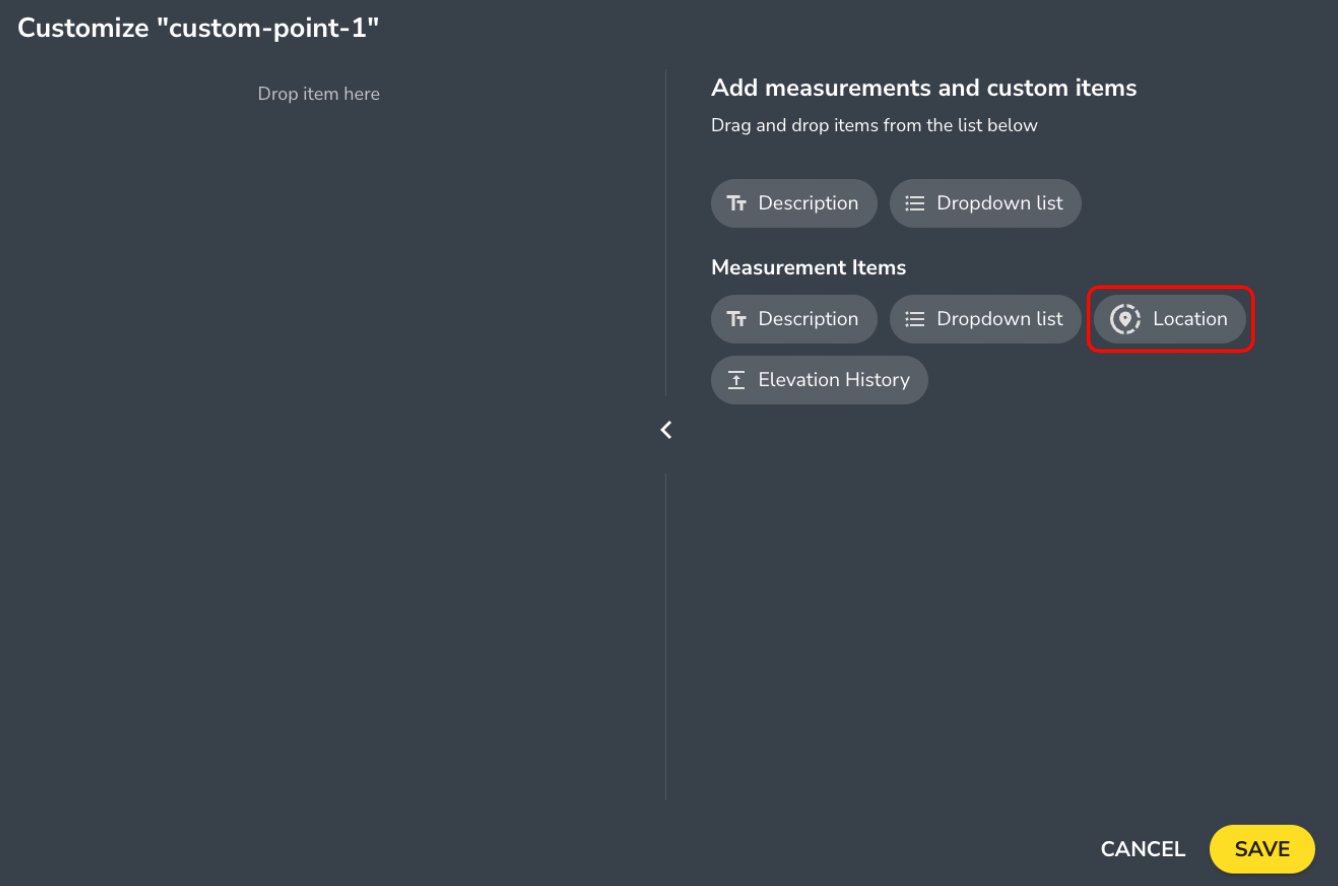

Click on the map to drop the point where you want it. Select Location and any other items you would like from the Customize window and click SAVE.

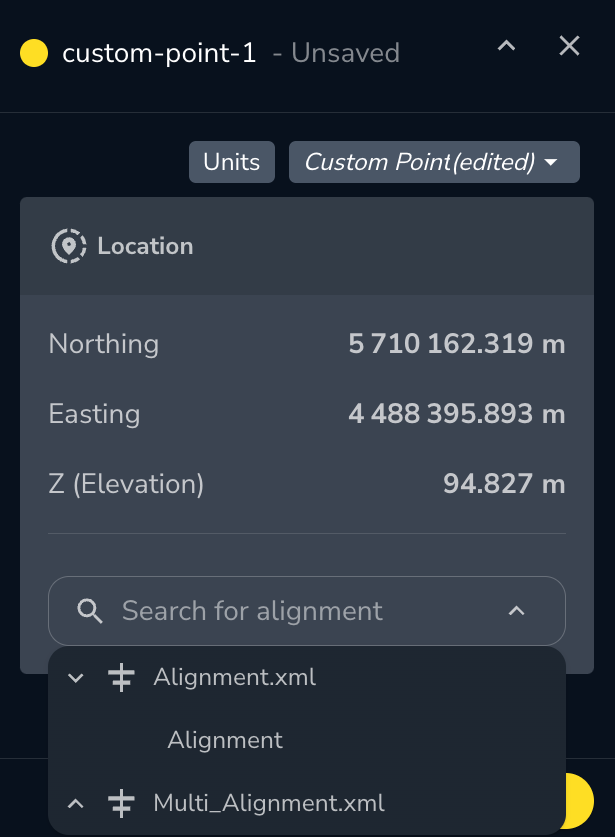

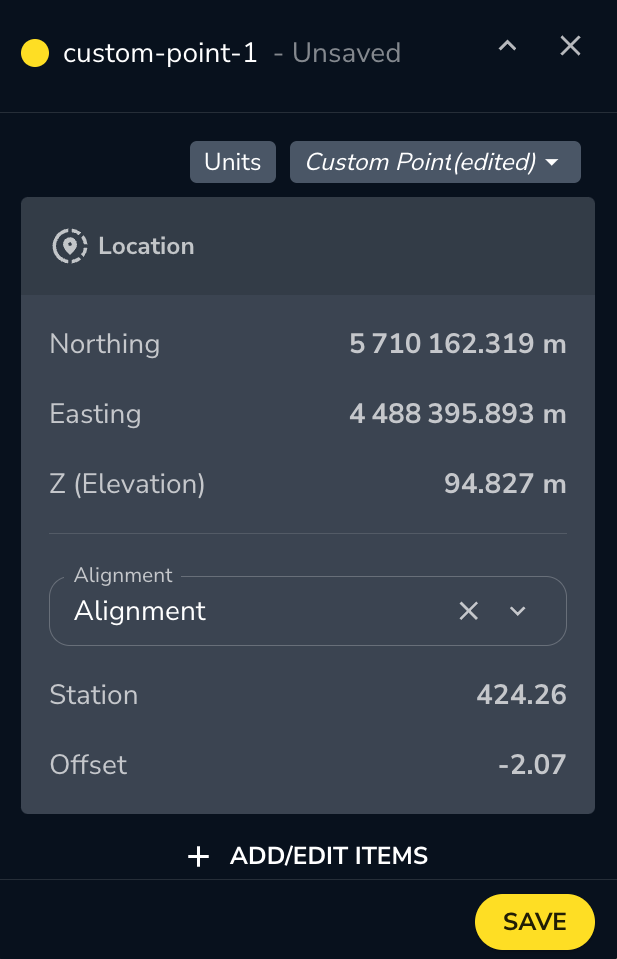

Select the alignment to which you want to reference your custom point from the dropdown menu in the information panel.
Once assigned, it will calculate the station, offset value, and the Northing/Easting/Elevation of the point you created.
Click in the name box to rename the point. Once you're ready, click SAVE. The newly created point can be viewed in the MEASURE tab.
To edit an existing point, click on the measurement to open the information panel. Then, add the alignment from the dropdown menu.
Line measurements
Create cross sections in bulk
Creating many cross sections perpendicular to an alignment can save time and create a more efficient workflow for tracking progress.

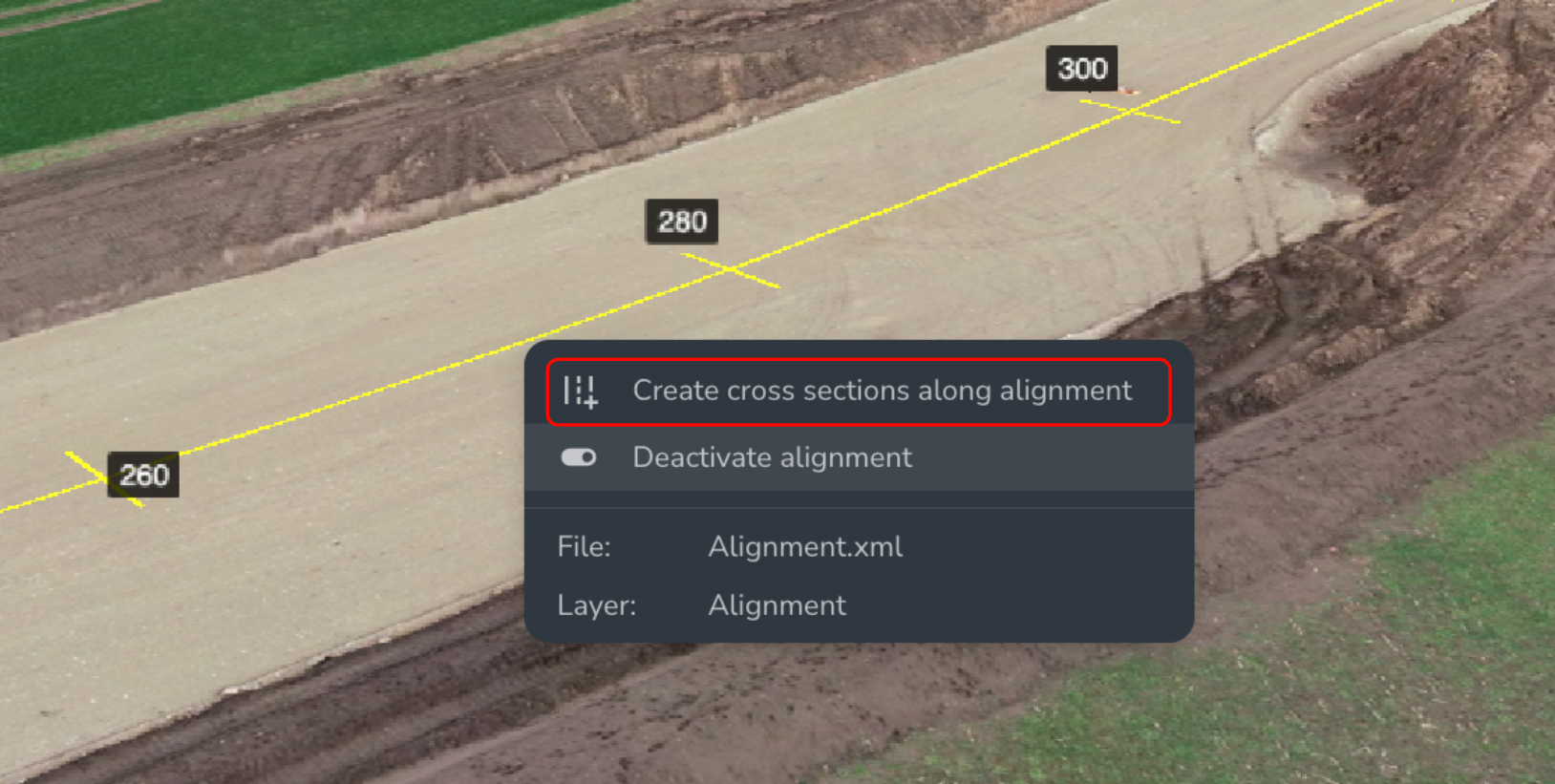

Right click on the alignment and select Create cross sections along alignment.

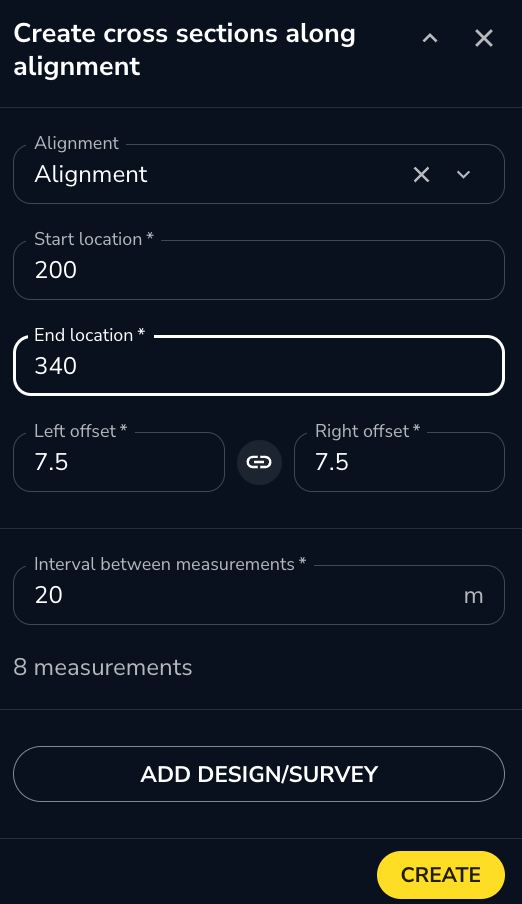

A new box will open where you can customize how the cross sections will be made in bulk.
Add the station Start location and End location where you want your cross sections to be drawn between.
Assign the Left and Right offset.

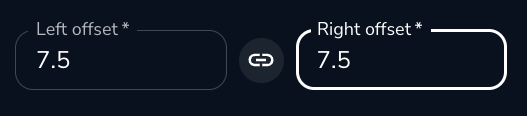

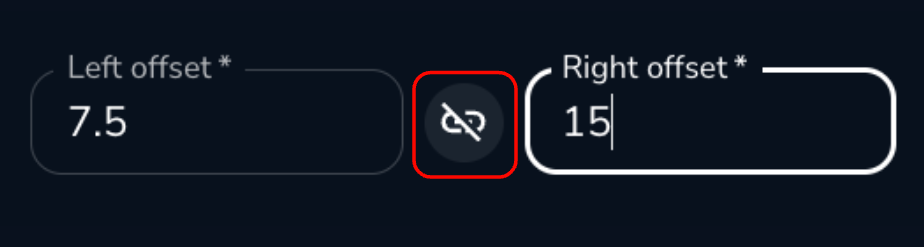

Offset distances default to mirror the left and right values. However, you can customize the offset on each side by unlinking them and adding separate values to the left or right offset value field.

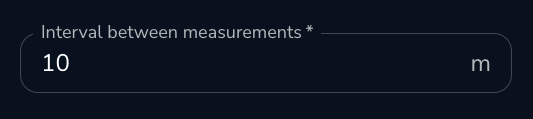

Set your desired Interval between cross section measurements.
As you edit the cross-section form, the map will update to give you a visual representation of the changes.

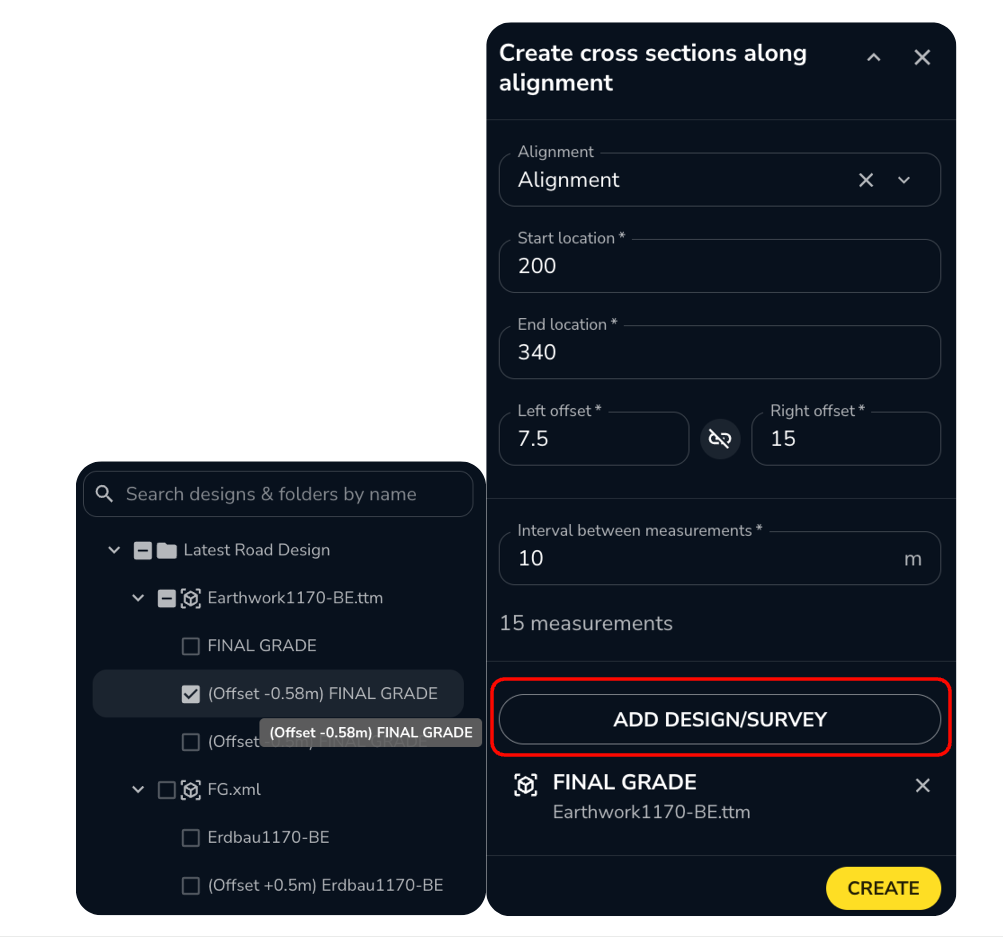

Click the ADD DESIGN/SURVEY button and choose a design file or survey to compare the new cross sections.
Click CREATE when finished.
The measurement batch is run within a few seconds, and you will get a notification with the number of cross sections generated based on the parameters you entered and the name of the folder created to organize those measurements.

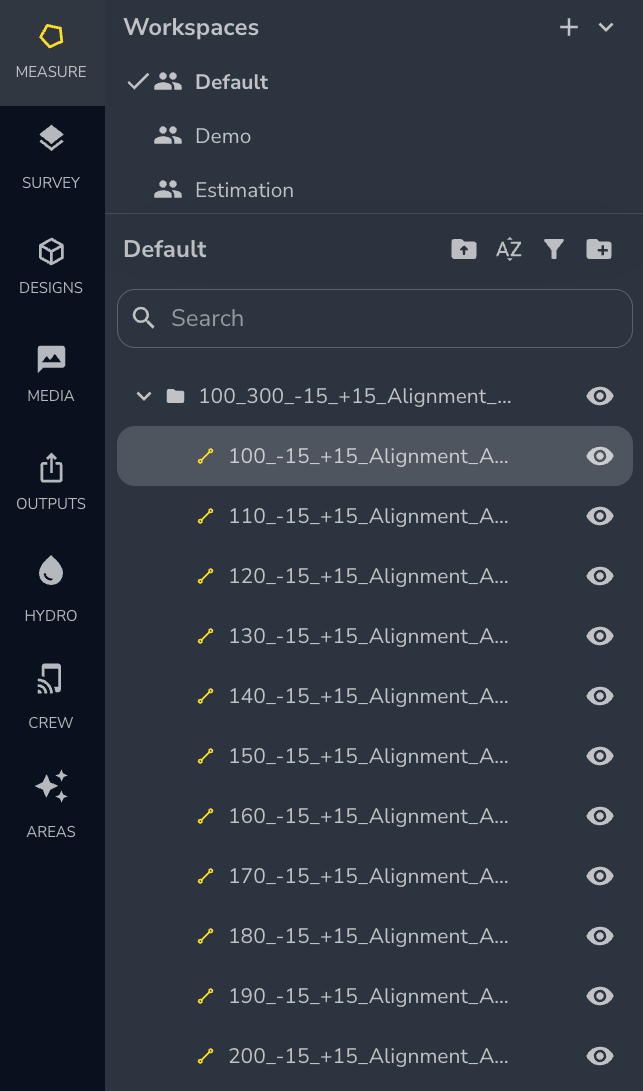

You can access this folder of batch-made cross sections in the MEASURE tab.
Create a single cross section along an alignment

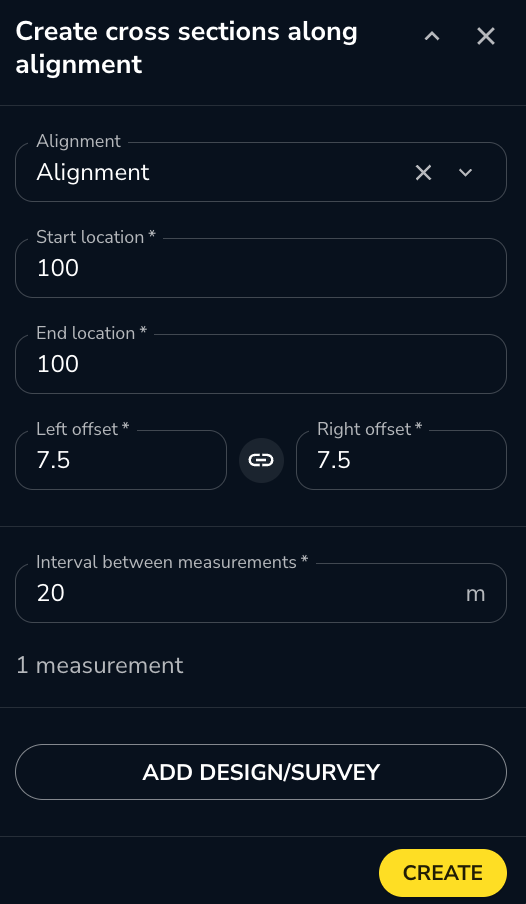

Single cross sections along alignments can be created the same way as creating bulk cross sections by simply making the Start location and End location the same station value.
As with other measurement folders, you can Promote to site, Copy to another dataset, Rename, Delete, and Duplicate your cross sections.

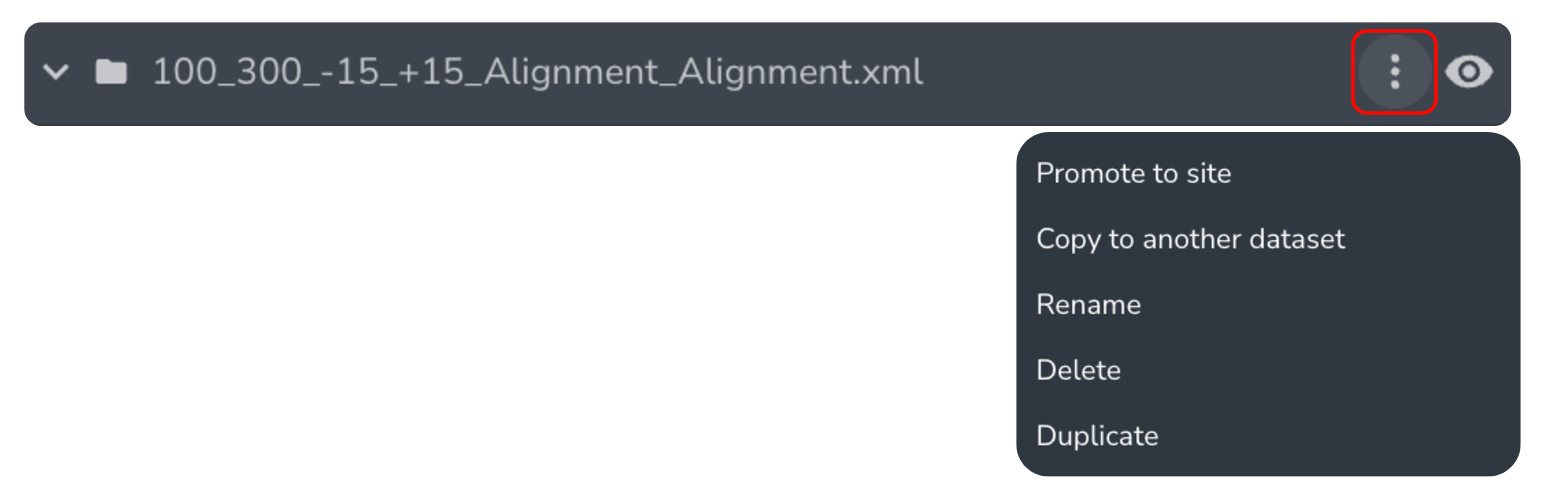

Click the three dots menu next to the folder and choose the appropriate action.

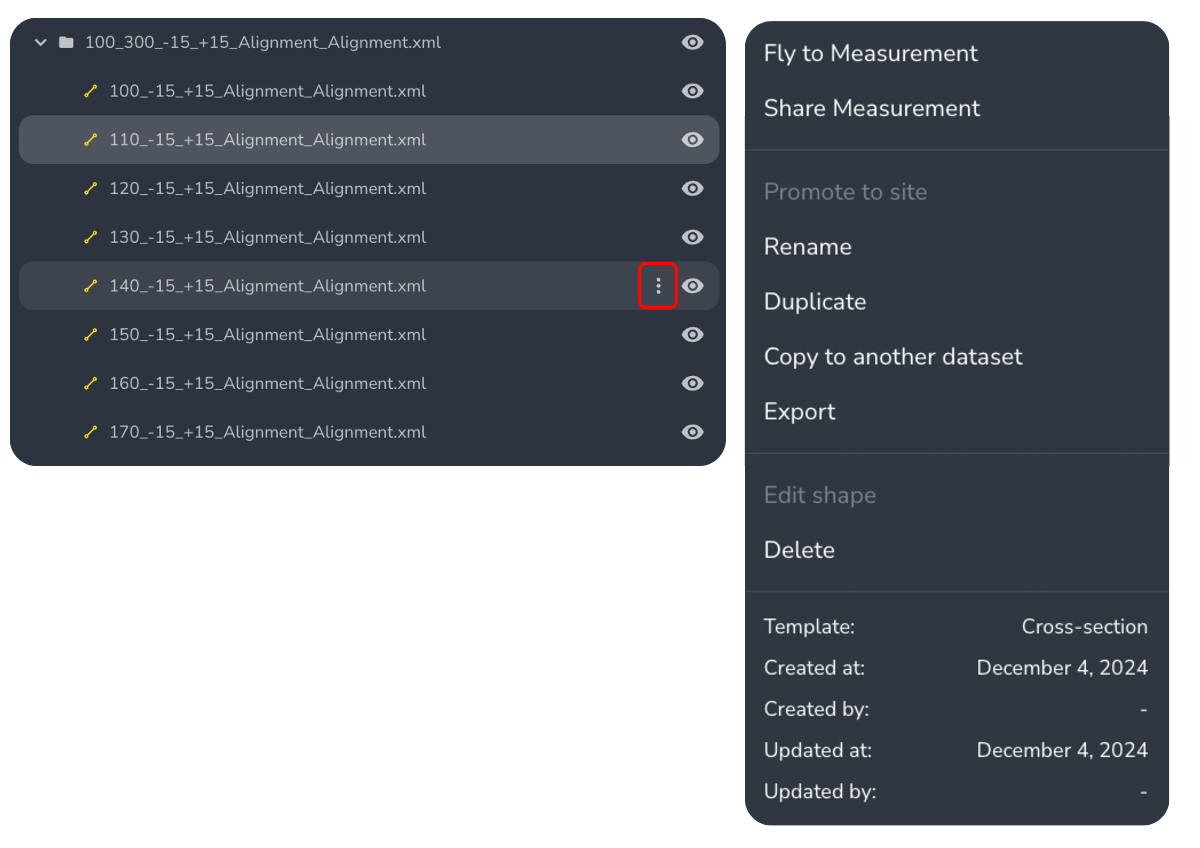

You can also Fly to Measurement, Share Measurement, Rename, Duplicate, Copy to another dataset, Export, and Delete individual cross sections. Click on the three dots menu and select the appropriate action.
You can also create and export reports to include cross sections along alignments.
FAQs
Vertical offsets are not supported yet.
How can I tell if a file in the DESIGNS tab is an alignment?
An icon next to the file will denote the file type.
Are there special considerations when using LandXML files?
LandXML alignment files can feature many specific geometry types that define their lines, curves, and spirals. They can also include station equations, which Propeller does not apply. For details and a workaround, see How to work with station equations in LandXML files.
What are the supported types?
Clothoid.
What types are not supported?
Biquadratic, Bloss, Cosine, Cubic, Sinusoid, RevBiquadratic, RevBloss, RevCosine, RevSinusoid, SinettafWave, BiquadraticParabola, Cubic Parabola, JapaneseCubic, Radioid, ReinerBogen.
Is there a limit to creating cross sections in bulk?
Currently, the limit when auto creating cross section endpoints is 500.
