How to Turn Off the Aircraft RTK Positioning on the Phantom 4 RTK


Your P4R drone comes with Real-Time Kinematic (RTK) GPS correction technology. However, Propeller uses a Post-Processing Kinematic (PPK) workflow to process survey data.

To turn the aircraft’s RTK positioning off, ensure both the drone and the controller are turned on.

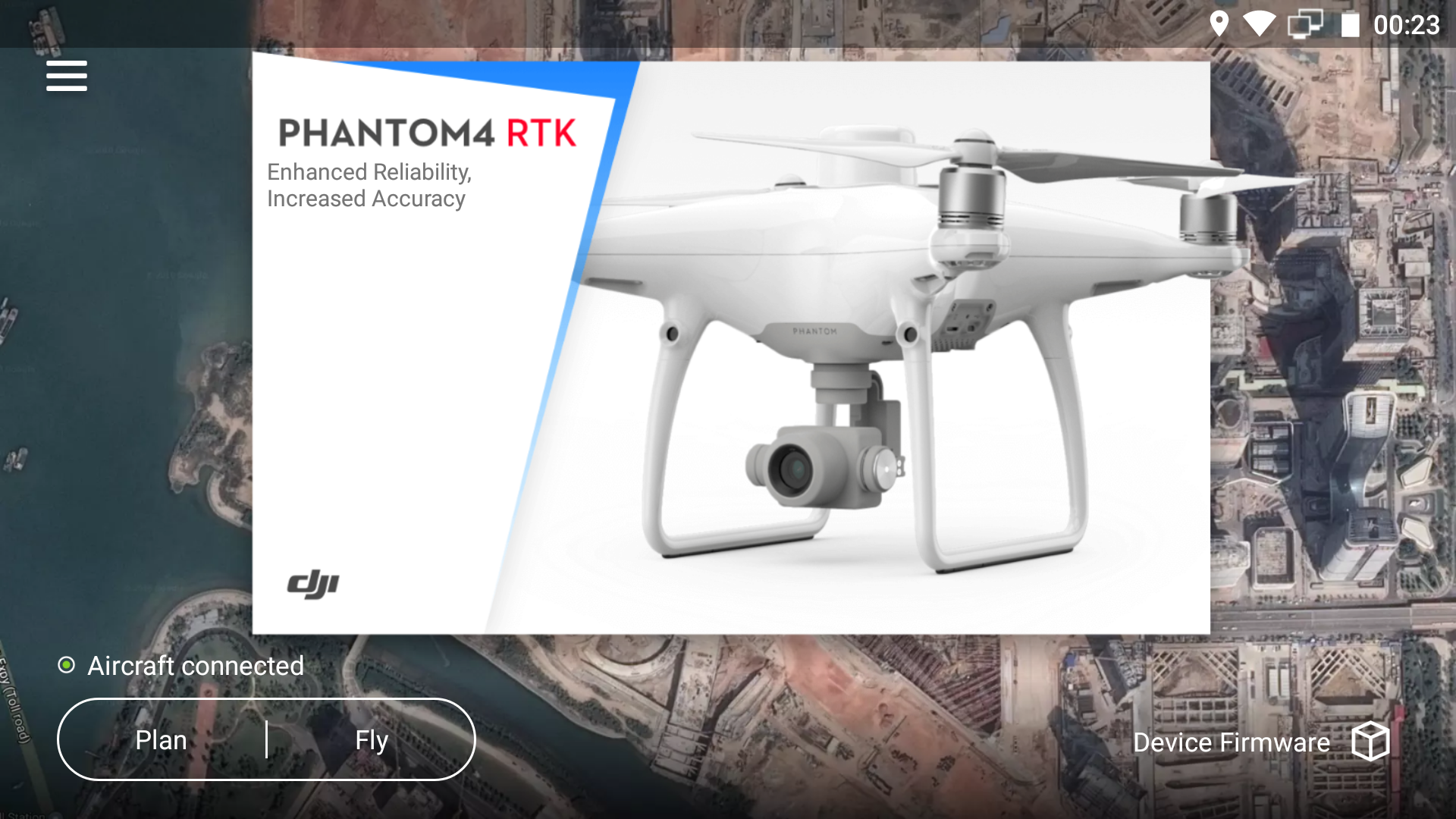

1. From the controller home screen, tap Fly.

GS RTK Phantom 4 RTK Homescreen.png

2. Tap the three dots in the top-right corner of the controller.

GS RTK Three Dots Menu.png

3. Tap RTK in the sidebar menu.

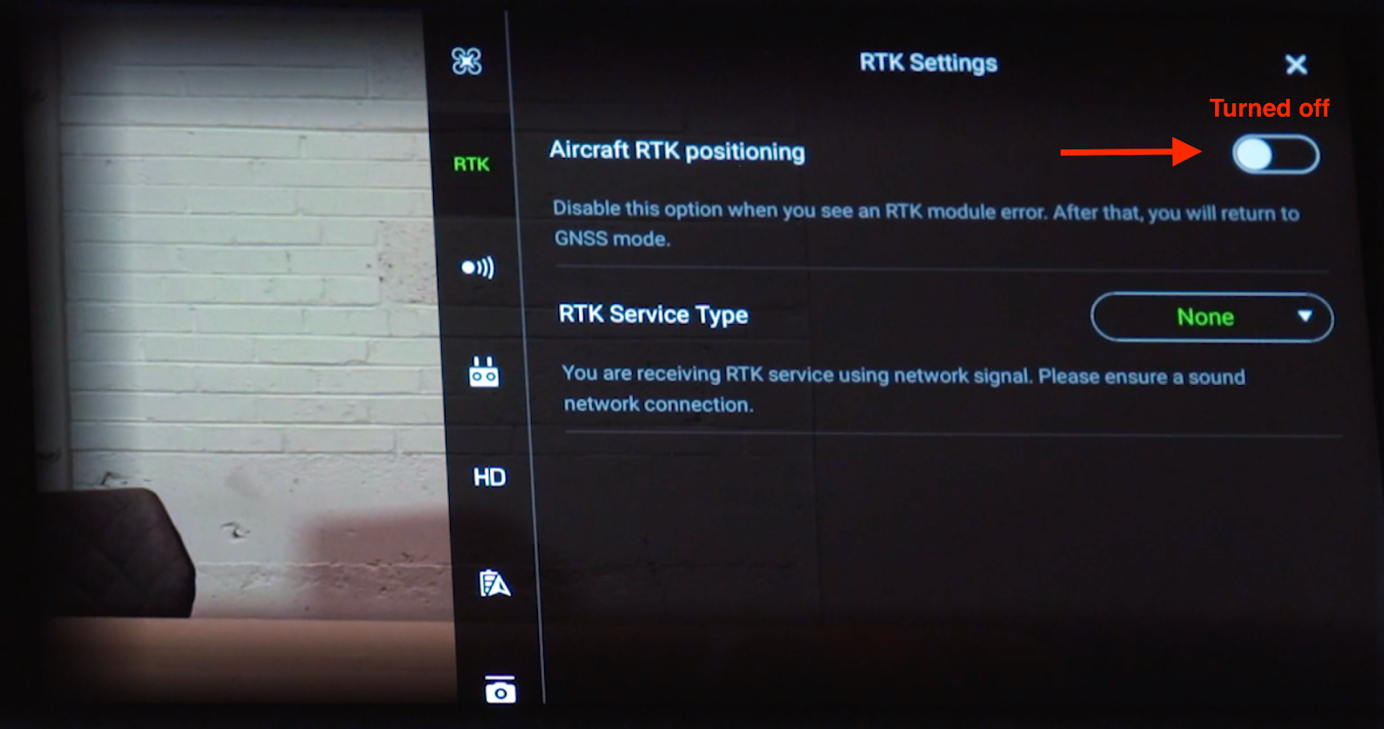

4. Make sure the aircraft RTK position toggle is switched off.

GS RTK RTK Positioning Off.png

TIP: Occasionally check that the RTK positioning option is still turned off, especially if you’ve recently performed a firmware update.

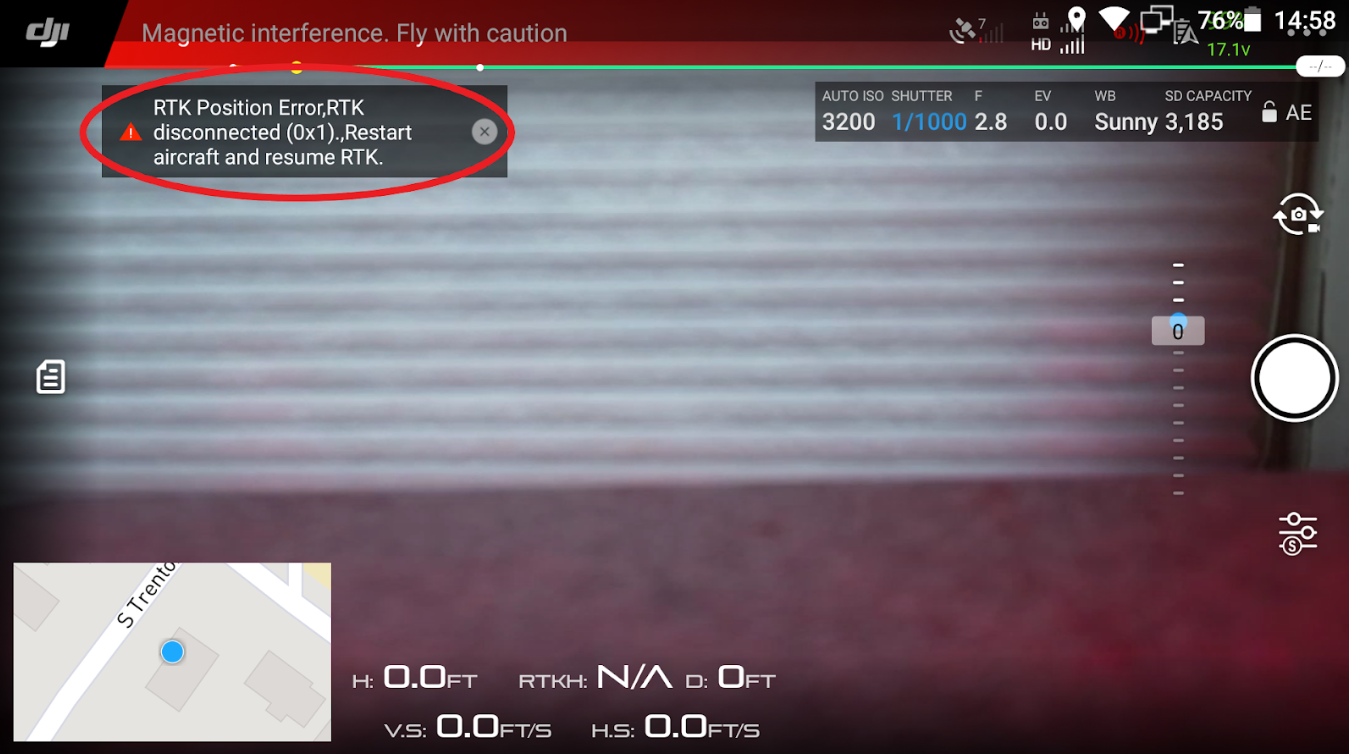

If you receive a message on your controller saying “RTK Position Error, RTK disconnected (0x1), Restart aircraft and resume RTK,” the aircraft’s RTK positioning is turned on and needs to be turned off.

GS RTK RTK Positioning Off Error.png


I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, the Propeller hardware support team may be able to help. You can contact them by emailing hardwaresupport@propelleraero.com.au.
