Creating Custom Stockpile Inventory and Measurement Reports


The REPORTS feature in the platform allows users to create custom .PDF or .CSV reports that can be easily shared with people who don't have access to the Propeller platform.

PDF Reports

How to create a Measurement Report PDF

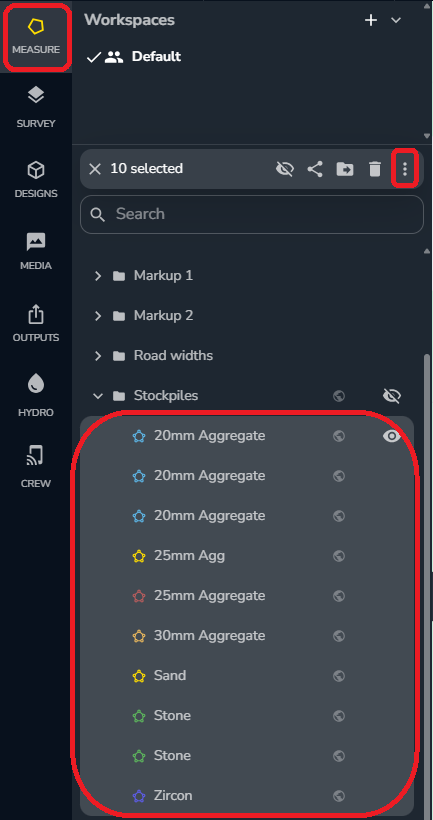

1. Turn on (make visible) one or more measurements from the MEASURE tab. Or create a new one.

Measure tab Stockpile Inventory Report Turn on Measurements 1.png

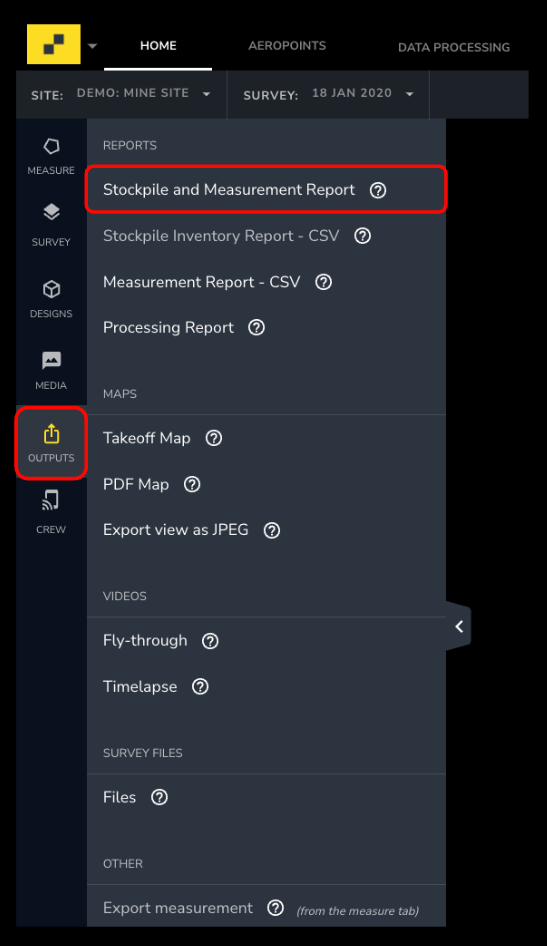

2. Select Stockpile and Measurement Report under the REPORTS category from the OUTPUTS tab.

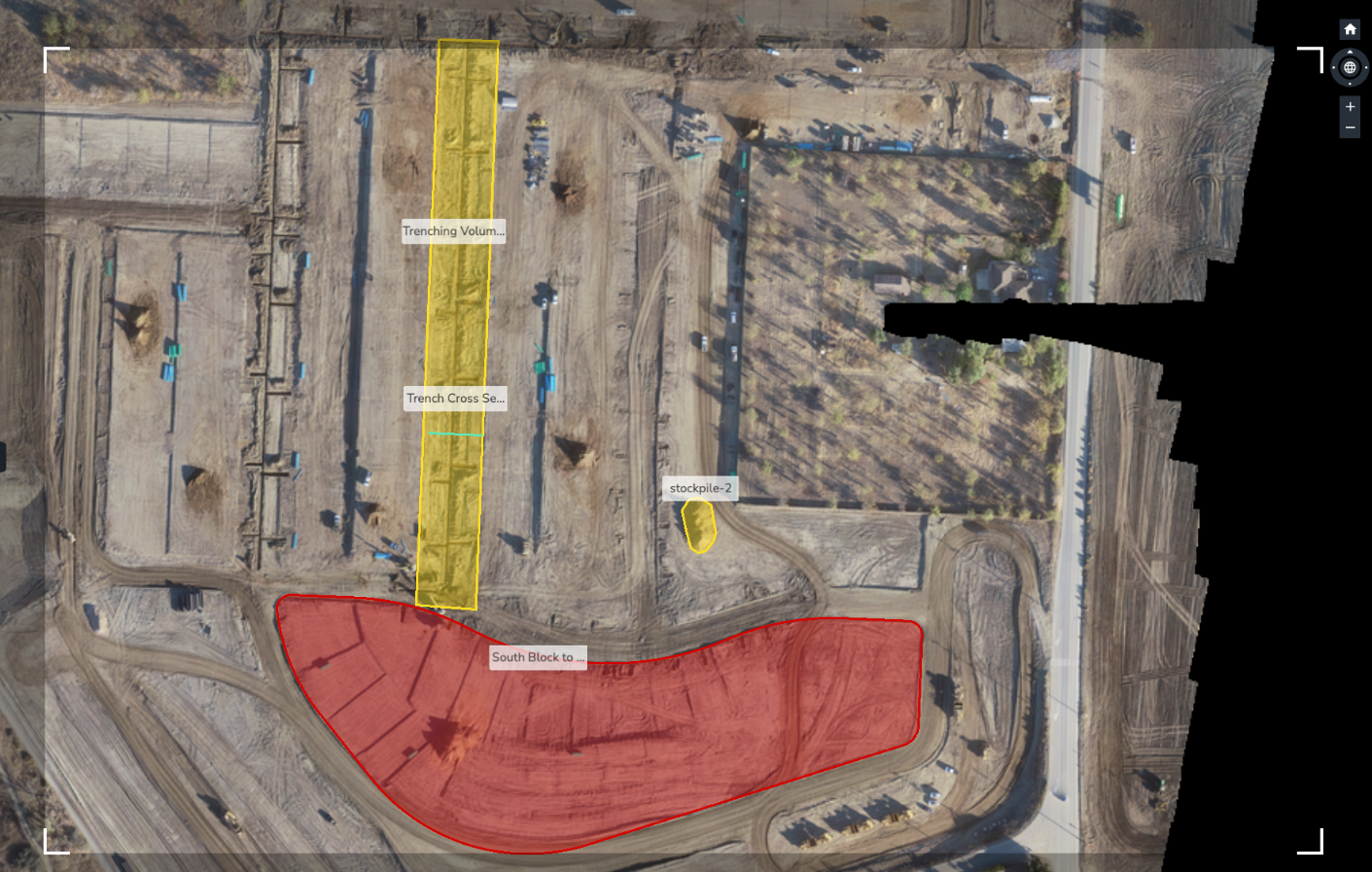

This will generate a cropping window. Set the view by zooming in and out and panning the map until you have everything you want to include in the report. This is the map image that will be generated in the report.

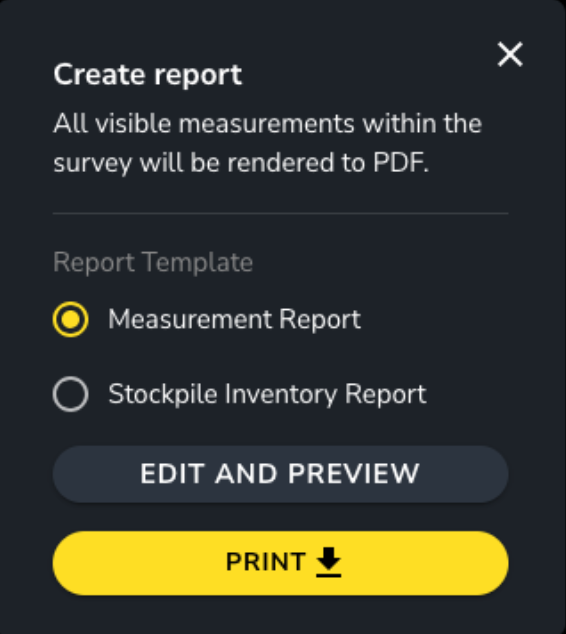

3. Select Measurement Report from the Create report window. To customize your report, click the EDIT AND PREVIEW button.

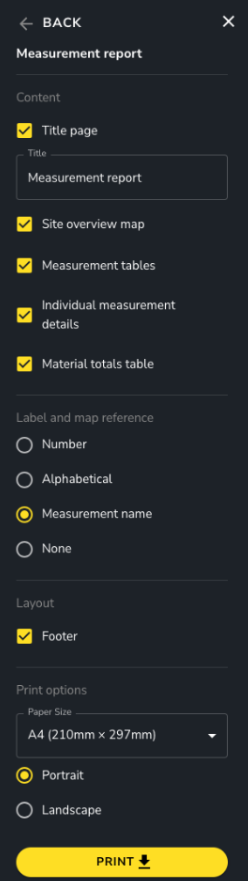

4. Choose the content you want to include with the report.

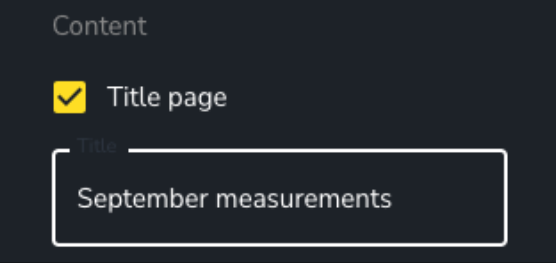

The report title will default to "Measurement report." If you want to change it, click in the text box to make the field editable.


Choose from the list of reference labels (Number, Letter, Measurement name, or None) to change the labels on the map.

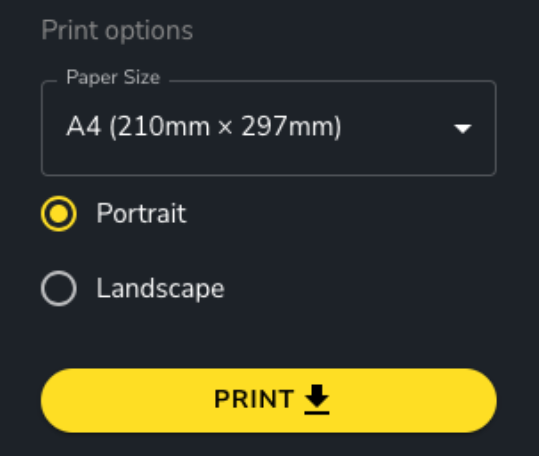

5. Select the paper size and choose PRINT.

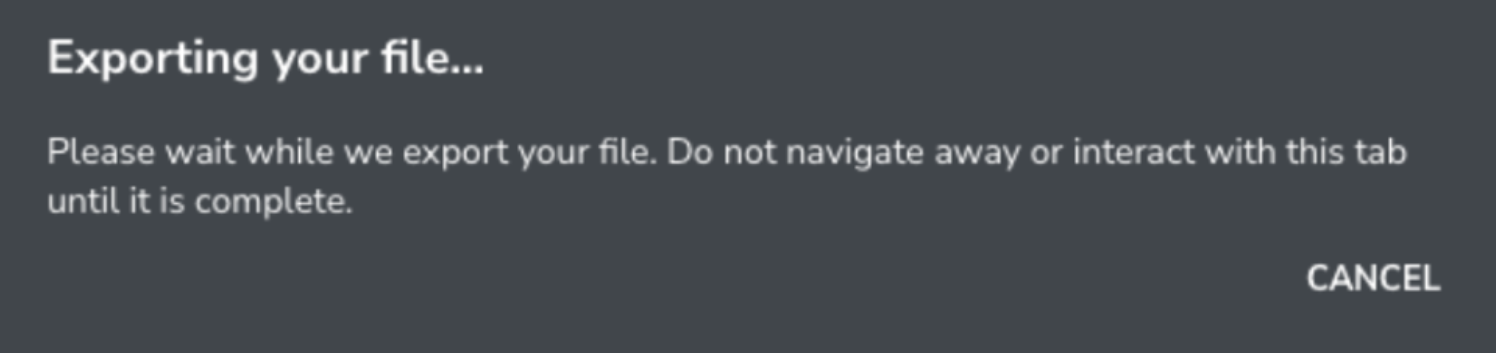

The complete report will automatically download to your computer.


How to create a Stockpile Report PDF

Just like the Measurement report, the Stockpile Inventory Report is a custom PDF report of all selected measurements. However, only selected measurements using Smart, Reference Level, Custom Base volumes, and Survey volume comparisons will be included.

1. Select any combination of measurements created using the Stockpile Template.


2. Select Stockpile and Measurement Report under the REPORTS category from the OUTPUTS tab.


Set the view by zooming in and out and panning the map until you have everything you want to include in the report.

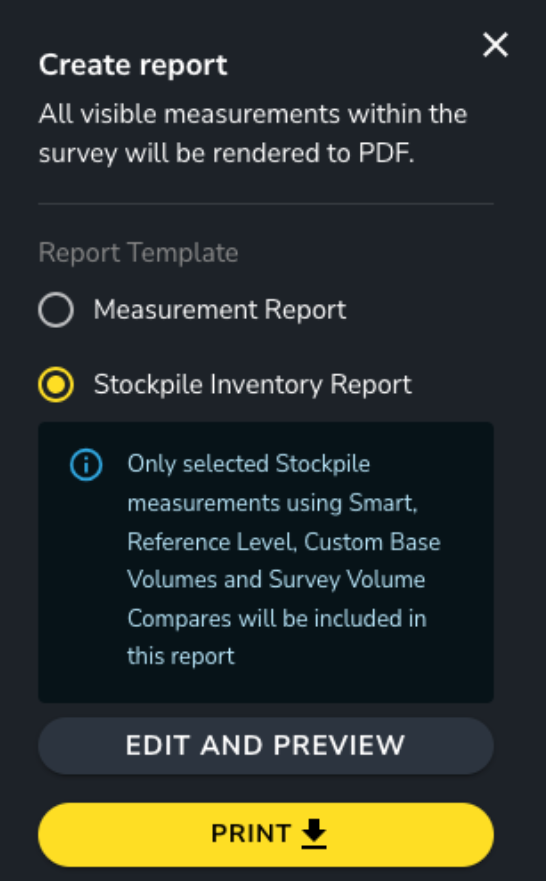

3. Select Stockpile Inventory Report from the Create report window. To customize your report, click the EDIT AND PREVIEW button.


This report also includes customization of the Measurement tables. Select which attributes you want to include from the dropdown menu.

Just like the Measurement report, you can change the title page of the report and the reference labels.

CSV Reports

How to create a CSV Measurement or Stockpile Inventory Report

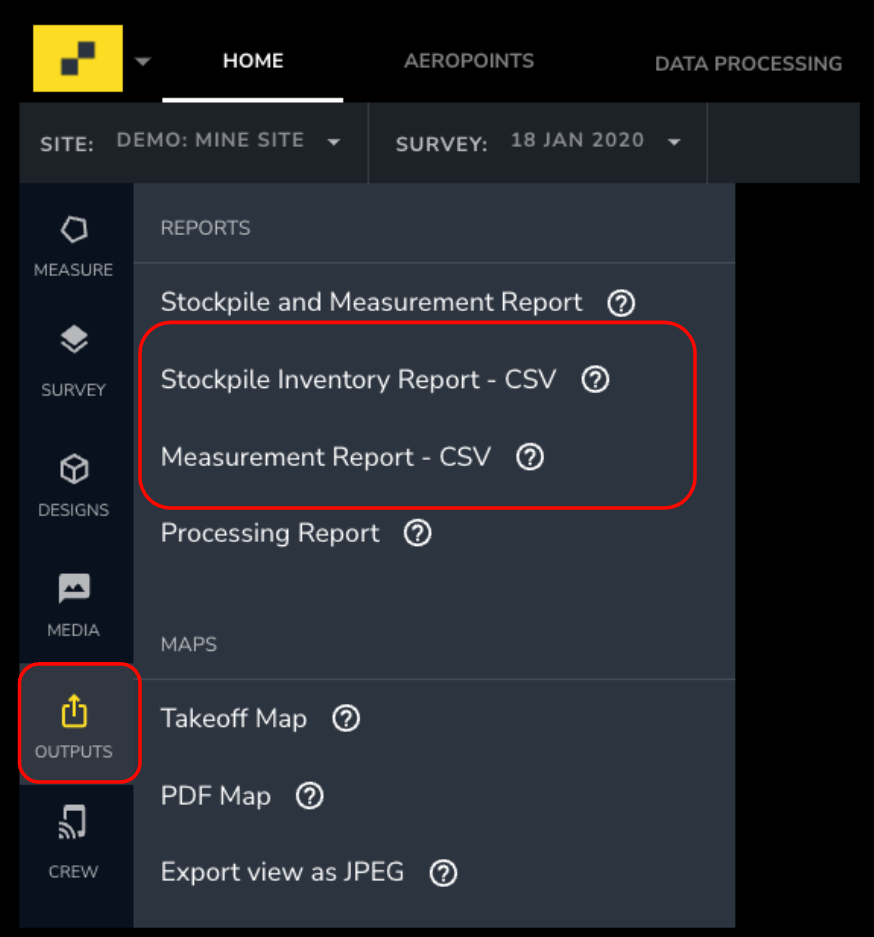

Creating a CSV Report is similar to creating PDF Reports. Select one or more measurements from the MEASURE tab, choose OUTPUTS, and then select Measurement Report - CSV or Stockpile Inventory report - CSV under the REPORTS category.


If you choose the Measurement report, it will be downloaded directly to your computer.

CSV Measurement Reports include:

  • The measurement name, type of measurement, volume information, description, and associated material properties.
  • All measurement quantities are based on how the measurement has been created.
  • A URL link to each measurement.

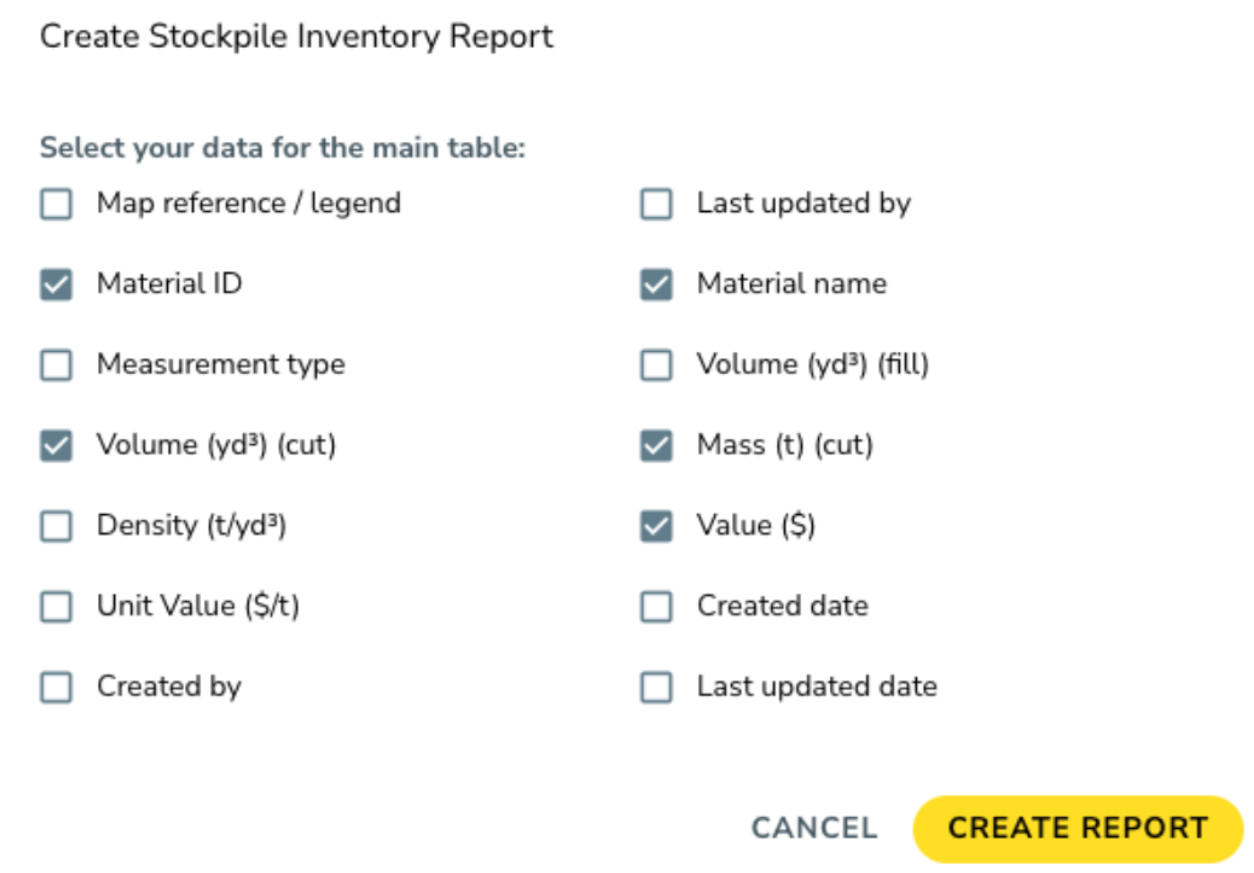

If you choose the Stockpile Inventory report, choose the attributes you want to include in the CSV file. Then click CREATE REPORT. It will be downloaded directly to your computer.

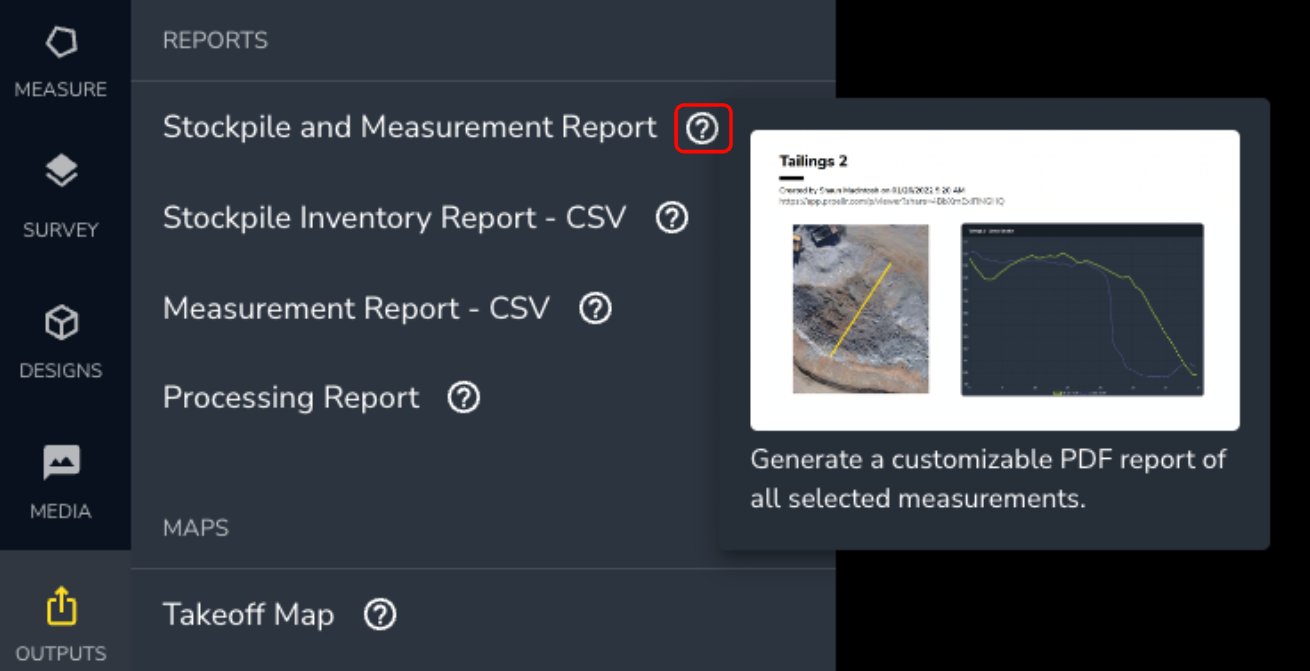

Not sure which report you need? Check out the tooltips included with each report for more information.



I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, you can connect with our support team by clicking the support button on the top right corner of your user portal.
