How to create a measurement report PDF
Measurement and stockpile inventory reports let you share site data as a PDF or CSV with people who don't have access to the Propeller Platform. Reports capture data at a point in time and cannot be edited after download.
| ℹ️ Note: Reports are not available if you have terrain or point cloud only datasets. You can only export a PDF measurement report if an orthophoto or terrain is uploaded to your site. |
- Turn on one or more measurements from the Measure tab, or create a new one.
- Select Stockpile and Measurement Report under the REPORTS category from the Outputs tab.

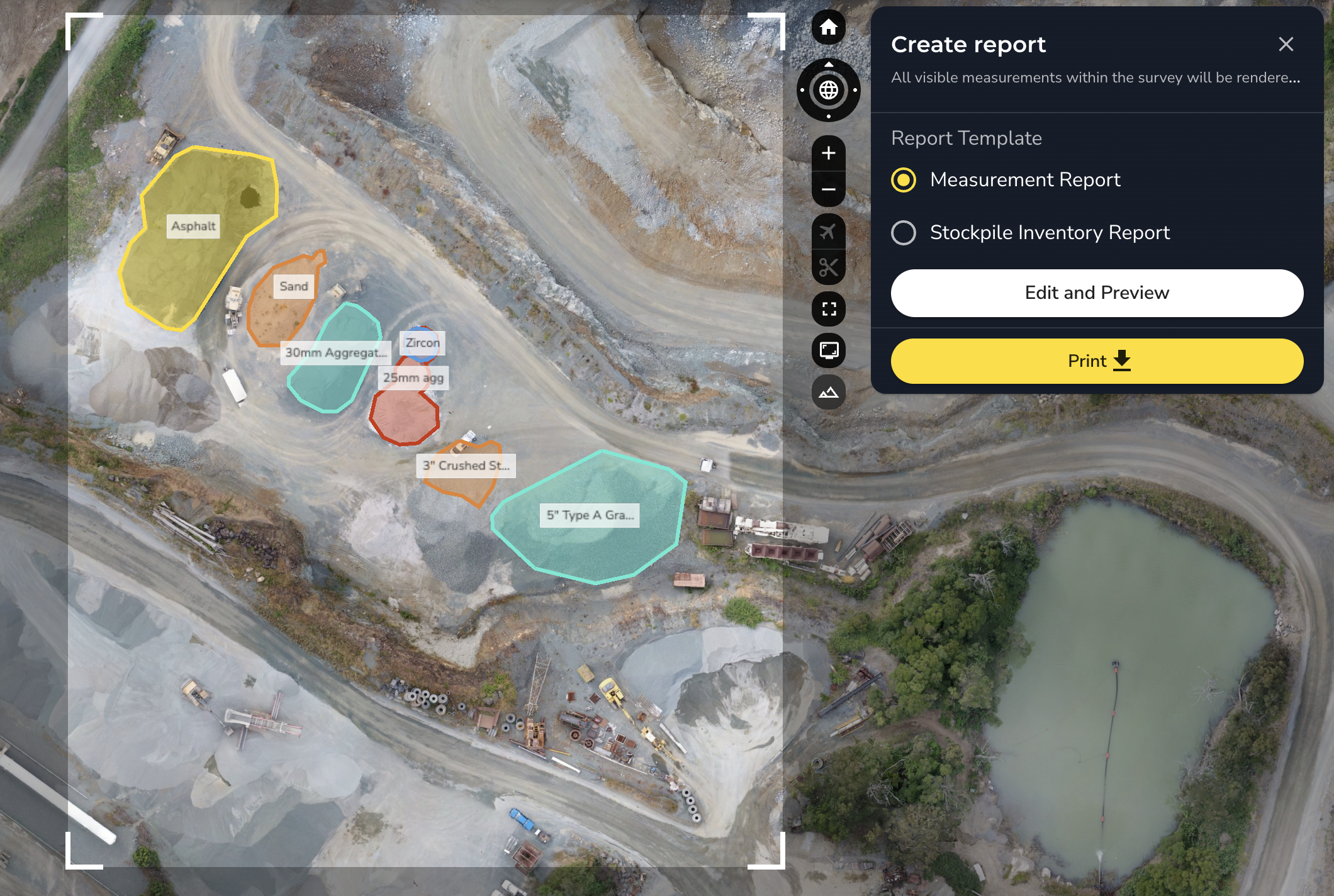

- A cropping window appears. Zoom and pan the map until the view captures everything you want in the report.
- Select Measurement Report from the Create report window. To customize your report, click Edit and Preview.
- Choose the content to include. The report title defaults to "Measurement report" — click the text box to rename it.
- Choose your reference labels: Number, Letter, Measurement name, or None.
- Select your paper size and click Print. The report downloads to your computer automatically.

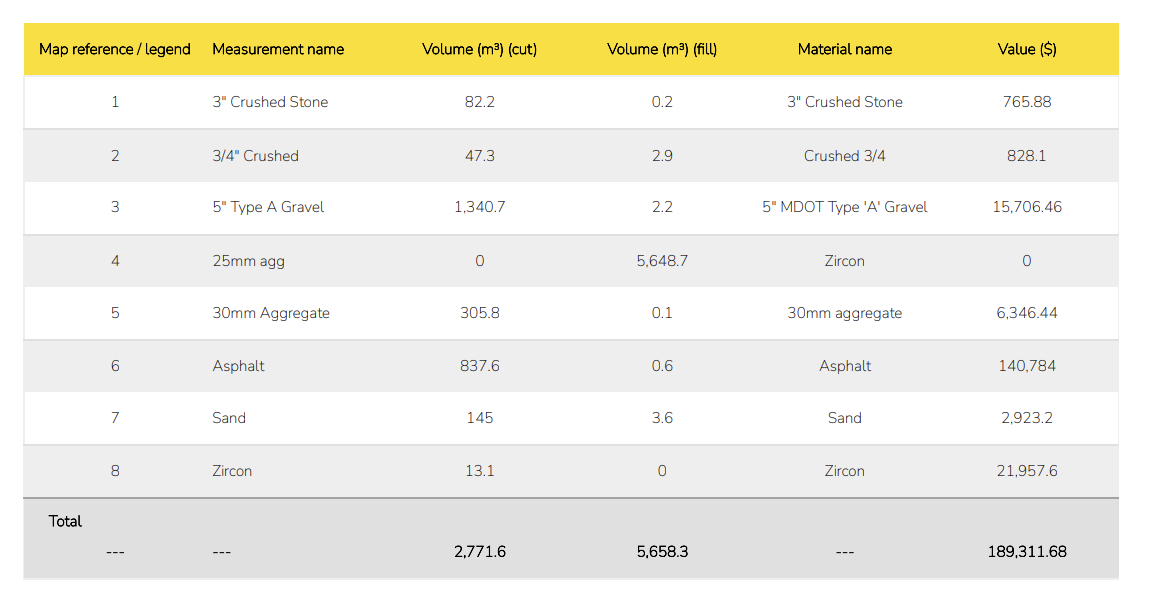

Reports include a totals row at the bottom of the measurement table, showing combined values across all selected measurements of the same type.
How to create a stockpile inventory report PDF
The stockpile inventory report works the same way as the measurement report, but only includes measurements created using the Stockpile template — specifically Smart, Reference Level, Custom Base volumes, and Survey volume comparisons.
- Select any combination of measurements created using the Stockpile template from the Measure tab.
- Select Stockpile and Measurement Report under the REPORTS category from the Outputs tab.
- Zoom and pan the map to set the view for your report.
- Select Stockpile Inventory Report from the Create report window. To customize, click Edit and Preview.
- From the dropdown, choose which attributes to include in the measurement tables.
- Rename the report title if needed, and choose your reference labels.
- Select your paper size and click Print. The report downloads to your computer automatically.
Reports include a totals row at the bottom of the stockpile table, showing combined values across all selected measurements.
How to create a CSV measurement or stockpile inventory report
- Select one or more measurements from the Measure tab.
- From the Outputs tab, select Measurement Report - CSV or Stockpile Inventory Report - CSV under REPORTS.
- If you chose the measurement report, the file downloads to your computer directly.

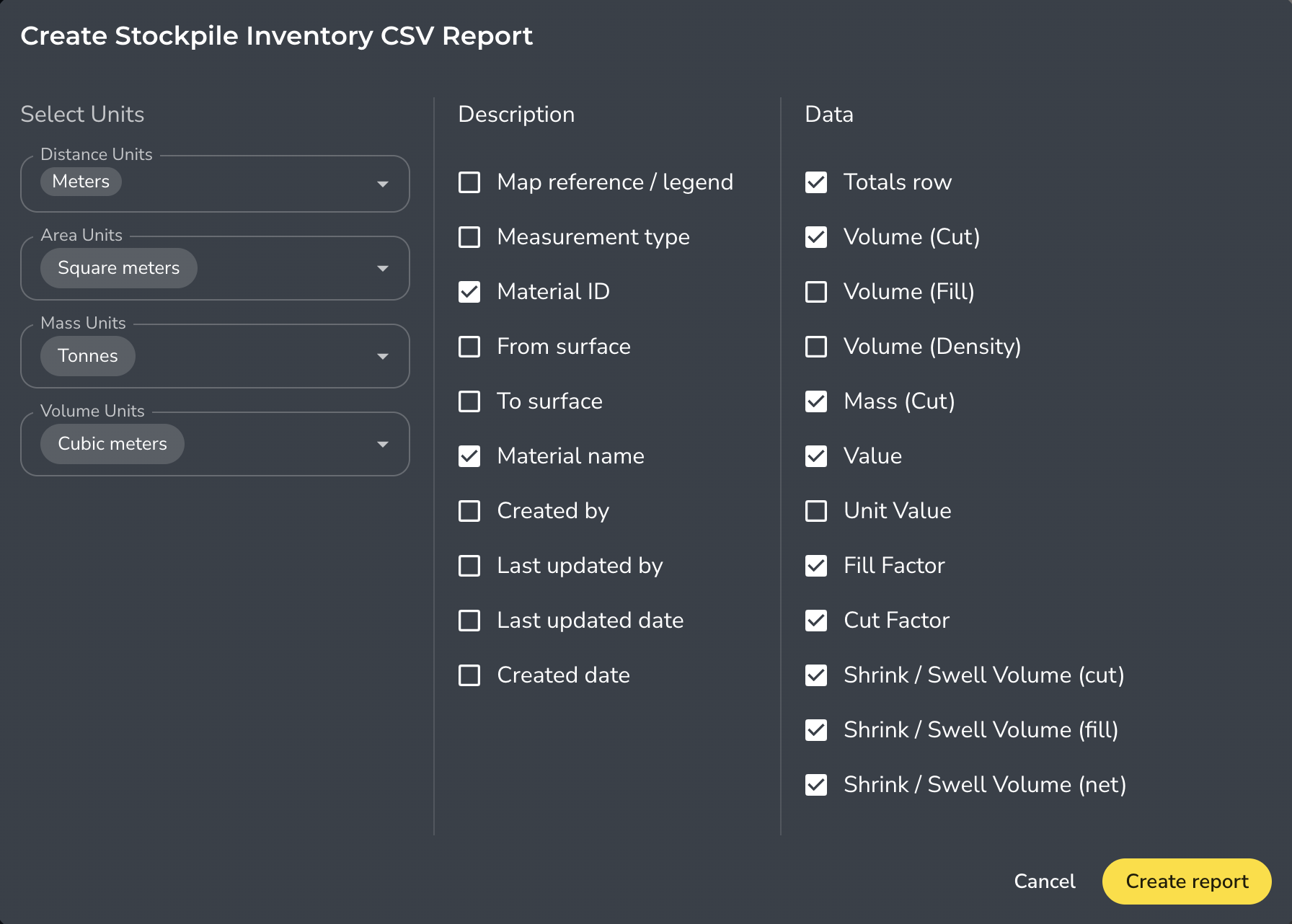

- If you chose the stockpile inventory report, choose the attributes you want to include in the CSV, then click Create report. The file downloads to your computer directly.
CSV measurement reports include:
- The measurement name, type, volume information, description, and associated material properties
- All measurement quantities based on how the measurement was created
- A URL link to each measurement
- A totals row at the bottom, showing combined values across all selected measurements of the same type
| 💡 Tip: Not sure which report you need? Check the tooltips included with each report type for more information. |
