For the DJI Mavic 3 Enterprise (M3E), the Matrice 300 (M300), or the Matrice 350 (M350) RTK drones, the aircraft and remote controller (RC) are already linked when purchased together. However, you'll need to link the RC to the aircraft if the RC was purchased separately or if the aircraft or RC is replaced.
Ensure the RC is within 1.6ft (0.5m) of the aircraft during linking.
Using DJI Pilot
1. Power on the RC and aircraft.
2. From the home screen of DJI Pilot, tap Camera View. Next, tap on the ‘X’ in the top right corner to exit the Preflight Check.
3. Tap on the three dots in the upper right corner.
4. Tap the RC icon.

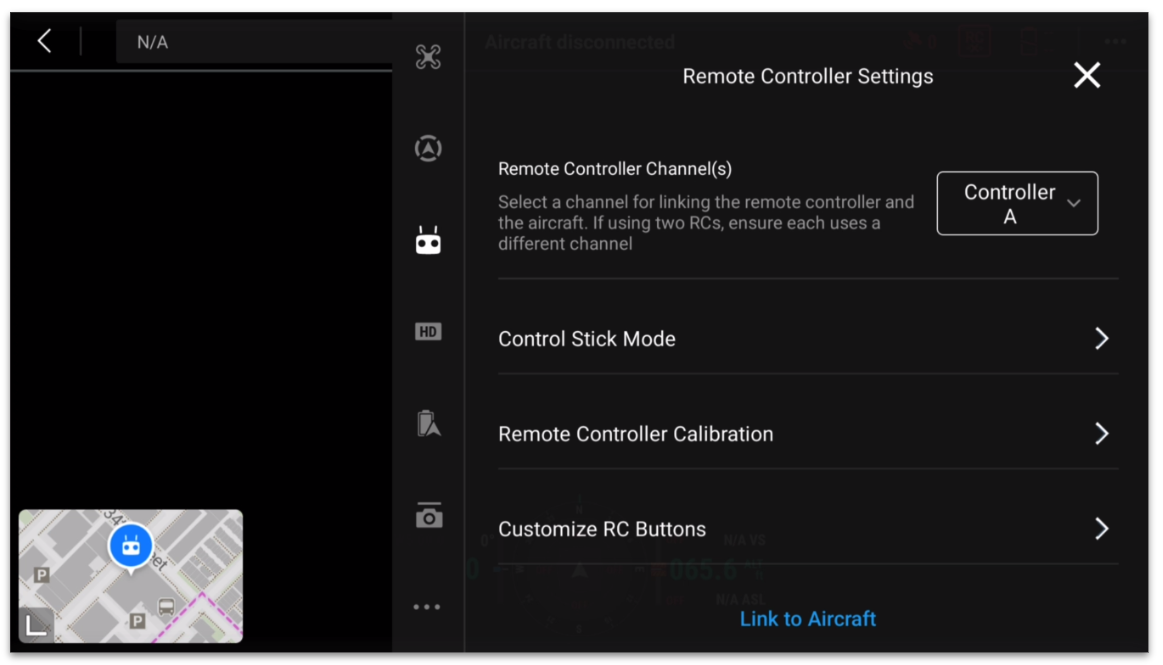

5. Scroll to the bottom, tap Link to Aircraft, and tap OK. The status LED will blink blue, and the RC will beep to show that the linking has started.
6. Press and hold the power button on the aircraft for at least five seconds. The RC status LED appears solid green if linking is successful.
Alternate Methods
Using the Controller Buttons
-
Power on the RC and aircraft.
-
Press the C1, C2, and Record buttons simultaneously. The status LED will blink blue, and the RC will beep twice to show that the linking has started.
-
Press and hold the power button on the aircraft for at least five seconds. The RC status LED appears solid green if linking is successful.
Using the Quick Settings (M300/M350 Only)
-
Power on the RC and aircraft.
-
Swipe down from the top of the screen to open the Quick Settings.
-
Tap on the two arrows icon to link.
-
The status LED will blink blue, and the RC will beep twice to show that the linking has started.
-
Press and hold the power button on the aircraft for at least five seconds. The RC status LED appears solid green if linking is successful.
