Attaching the P1 Sensor to your Matrice 300 or 350 RTK Drone

DJI’s Zenmuse P1 integrates a 45MP full-frame sensor, a global mechanical shutter, and an interchangeable fixed-focus DJI DL 35mm lens on a 3-axis stabilized gimbal. It's used with compatible DJI aircraft like the Matrice 300 (M300) or Matrice 350 (M350) RTK.

This article focuses on attaching the gimbal (with lens installed) to the aircraft frame.

Overview

It’s essential to start by familiarizing yourself with the unique pieces included with the gimbal.

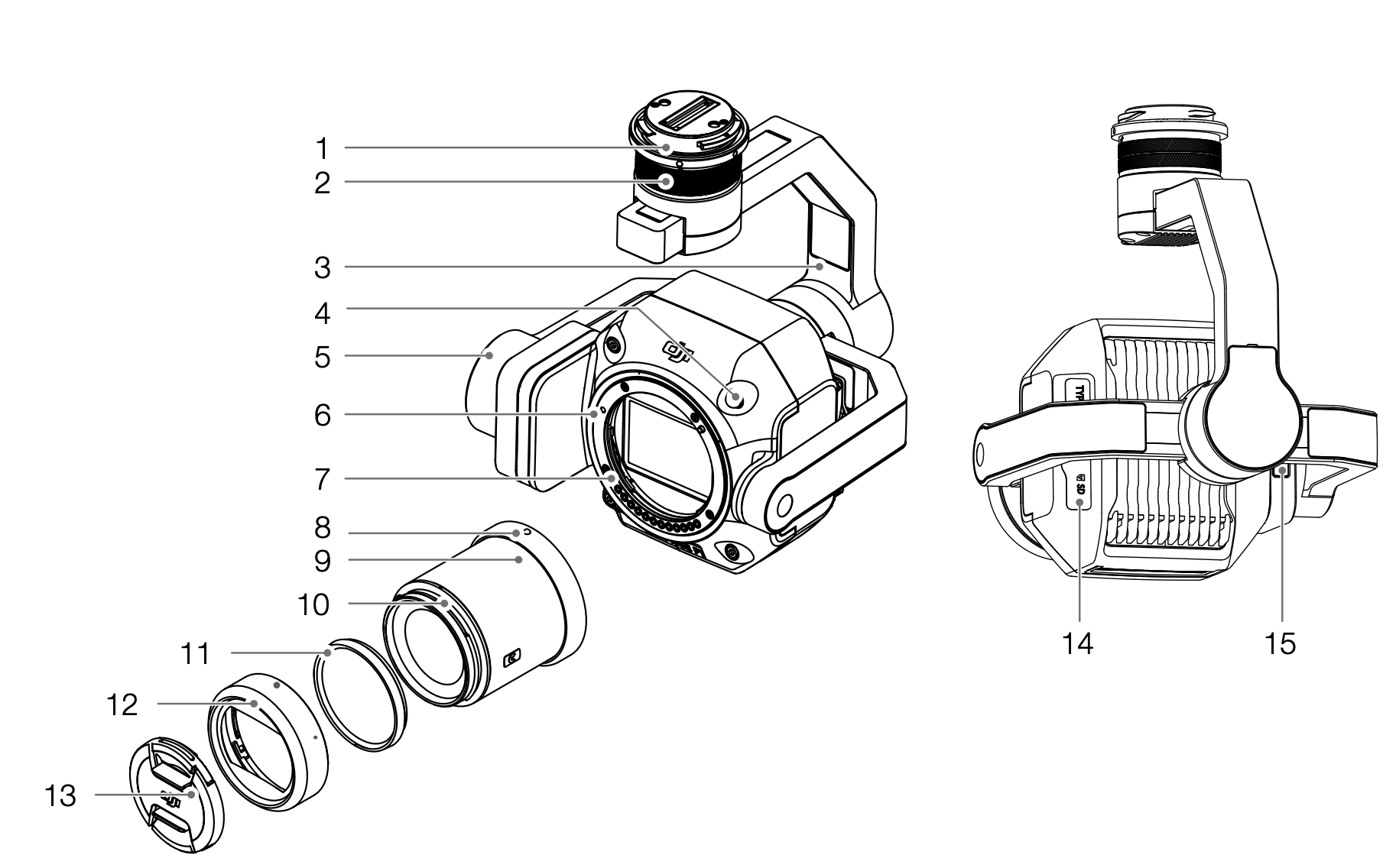

Zenmuse P1 Diagram.png



1. Gimbal Connector 9. Lens
2. Pan Motor 10. Lens Hood Mounting Index
3. Roll Motor 11. Balancing Ring
4. Lens Release Button * 12. Lens Hood
5. Tilt Motor 13. Lens Cap
6. Lens Mounting Index 14. SD Card Slot
7. Lens Mount 15. microSD Card Slot
8. Lens Mounting Index * Do NOT press the lens release button while attaching the lens

Installing Sensor onto the Aircraft

  1. Remove the gimbal cap.

  2. Press the button on the aircraft to detach the gimbal and camera.

  3. Rotate the gimbal cap on the aircraft to remove it.

  4. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.

  5. Rotate the gimbal lock to the locked position by aligning the red dots.

Safety Notes

  • When mounting, make sure the gimbal connector on the aircraft is positioned correctly. Otherwise, the camera cannot be mounted.
  • Remove the P1 by pressing the button on the aircraft used to detach the gimbal and camera.
  • Put the P1 with the lens attached in the storage box. It is not recommended to disassemble and assemble the lens repeatedly.
  • Only remove the P1 after powering off the aircraft.
  • Detach the gimbal from the aircraft during transportation and storage. Otherwise, the damper balls' service life may be shortened or damaged.
  • Before takeoff, make sure that the SD card cover is closed properly. Otherwise, it may obstruct the gimbal arm's movement and cause the motor to overload.

I still can't do it!

We wrote these articles to equip you with everything you need to get the job done on your own, but we understand that sometimes this isn't sufficient.

If you're stuck, the Propeller hardware support team may be able to help. You can contact them by emailing hardwaresupport@propelleraero.com.au.
