How to Convert .TXT to GeoTIFF


Prerequisites

You can convert .TXT to GeoTIFF using Global Mapper on your computer. Don’t have it? You can purchase it here

Instructions

 1. Launch Global Mapper.

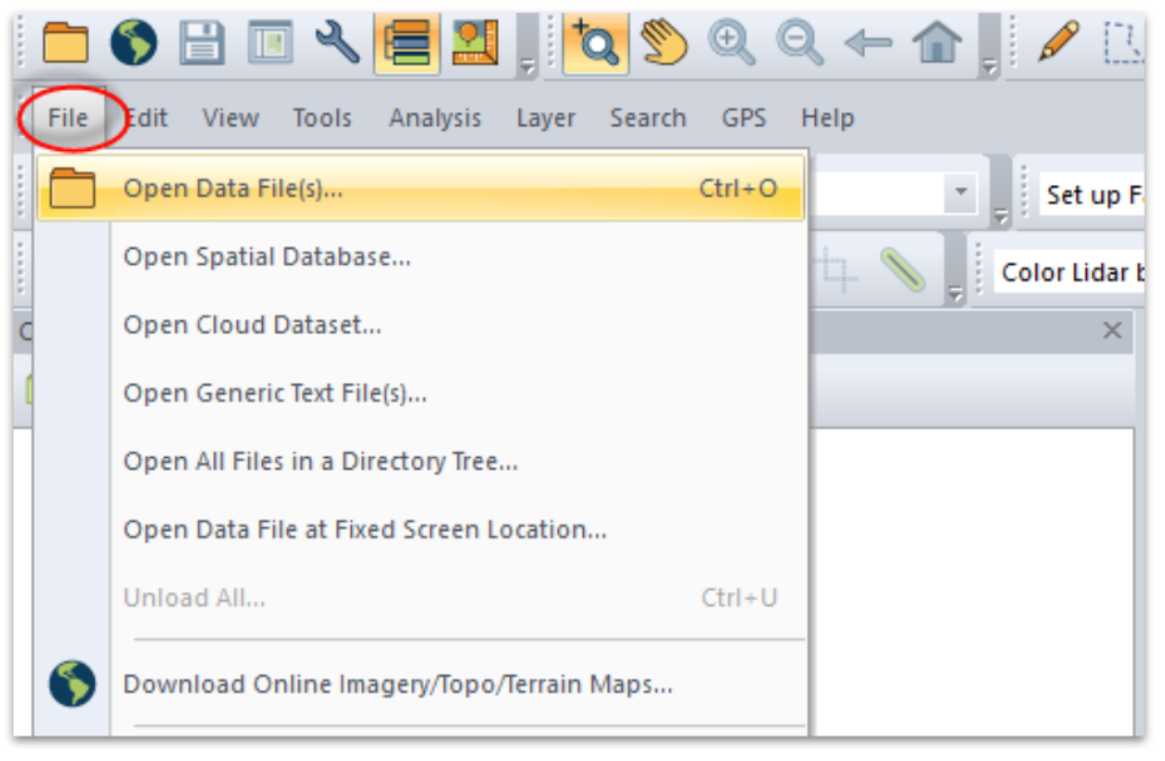

2. Import your .TXT as a layer using File > Open Data File(s).

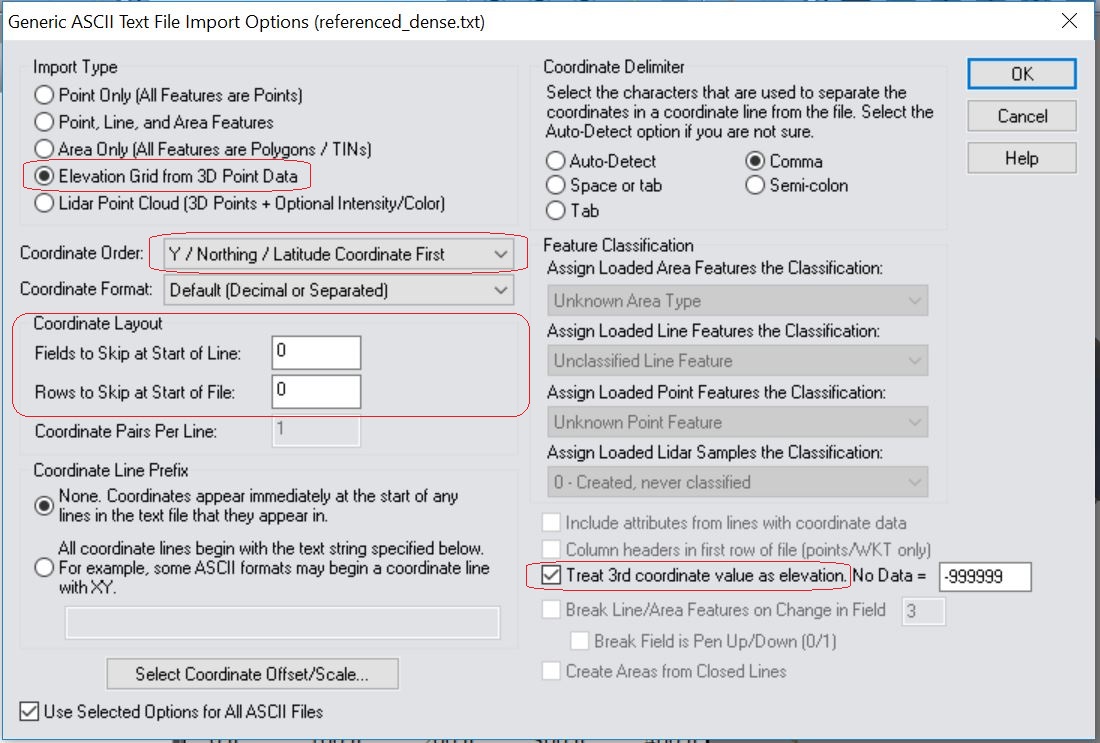

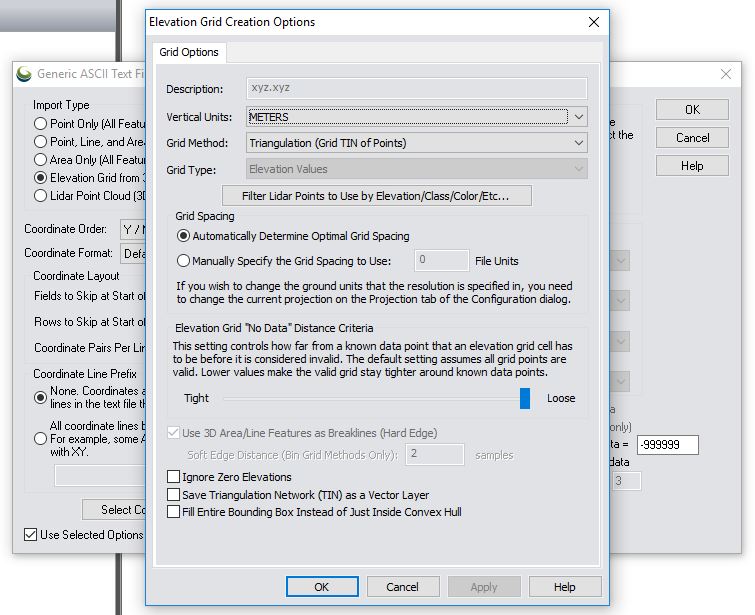

3. Select the Import Type as Elevation Grid. Be sure to specify the order which the coordinates are, and identify if the coordinate pairs have a name or ID at the start of the line. The remaining default parameters for the Elevation Grid are good. Click OK.




4. Select the correct projected coordinate system that the file is in when prompted.

5. Right click on the layer that was created (it is called "Elevation grid" by default) and export it as a GeoTIFF by navigating to Layer > EXPORT - Export Layer(s) to New File..., selecting GeoTIFF, and clicking OK.

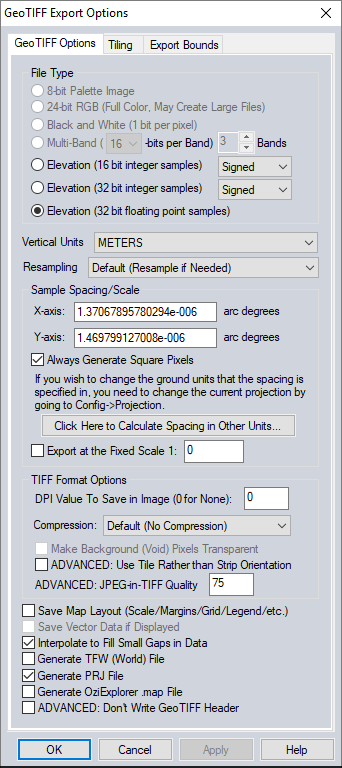

7. Follow the prompts and ensure that the output file type is a 32 bit signed float (near the top of the options window). Click OK.


8. The resulting file should be a DEM in the format we require that can then be uploaded for processing like any other terrain.
