How to Export Measurements as a PDF or CSV

Creating reports allows for sharing of information about a site with people who don't have access to the Propeller platform or even a computer.

Reports also allow for data to be captured at a point in time that can't be changed or edited.

Note: You can only export a PDF Measurement Report if an orthophoto or terrain is uploaded to your site. If you do not have either of these, you cannot create a Measurement Report.

How to create a Measurement Report PDF

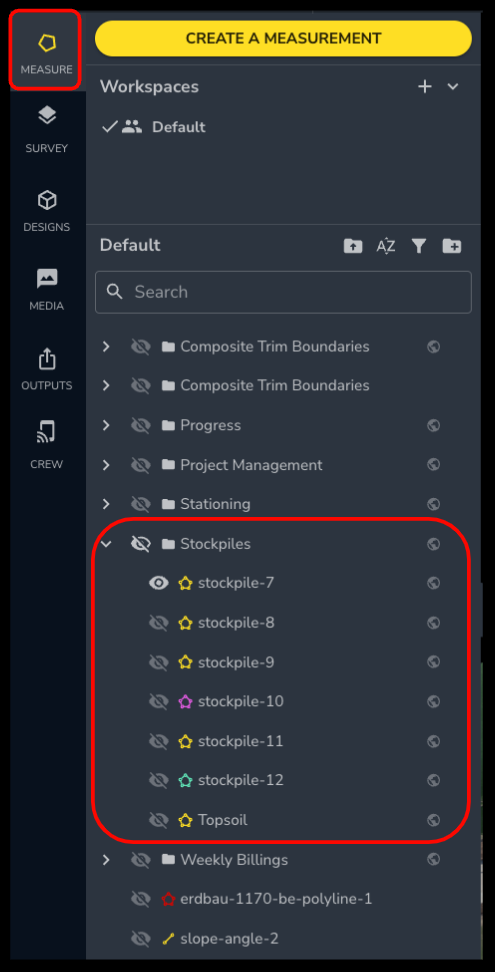

Select one or more measurements from the MEASURE tab.

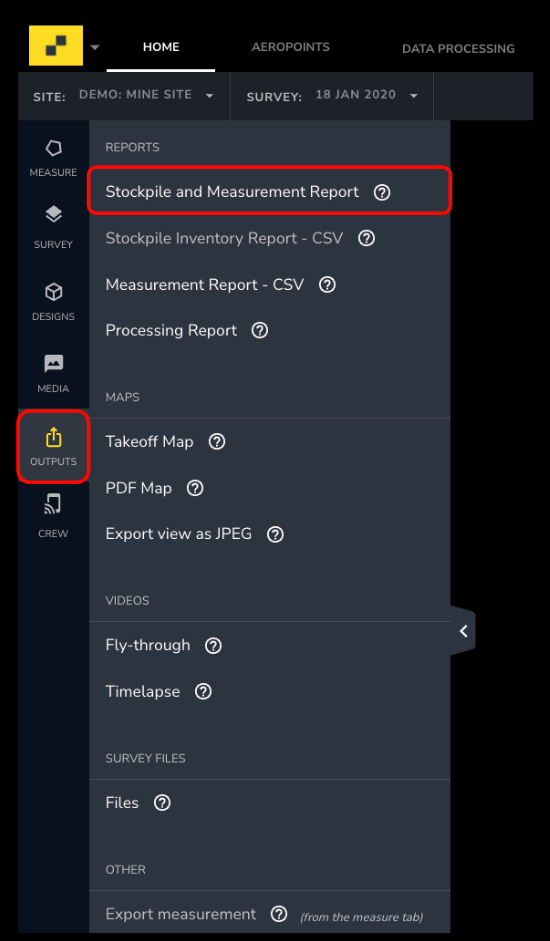

Select OUTPUTS and choose the PDF Measurement Report under the REPORTS category.

Check the boxes to select which content to include in the report.


Download the PDF report to your computer. The complete report will appear in your Downloads folder. Alternatively, you can also print directly from this page.

Measurement Reports include:

• A full orthophoto of the site.
• An image of each measurement, including the measurement outline.
• The name, description, and any material properties.
• All measurement quantities are based on how the measurement has been created.
• A URL link to each measurement.

How to create a CSV Report

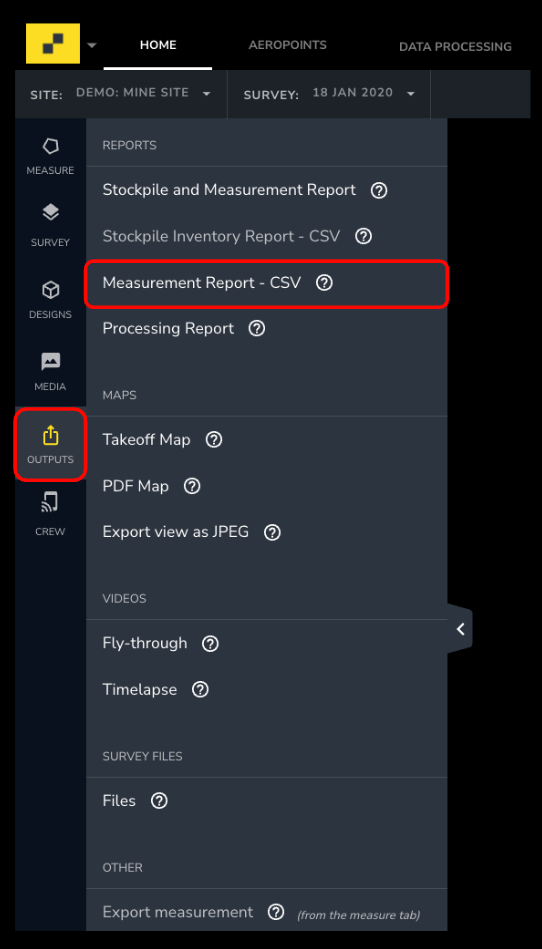

Creating a CSV Report is the same—Select one or more measurements from the MEASURE tab, choose OUTPUTS, and then select CSV Report under the REPORTS category.

CSV reports include:

• The name, description, and any material properties.
• All measurement quantities are based on how the measurement has been created.
• A URL link to each measurement.
